Handheld welding machine - Manual laser welding equipment
---Brings welding efficiency for metal products
---Expecially for stainless steel,iron,aluminum,galvanized sheet
---Expecially for stainless steel,iron,aluminum,galvanized sheet

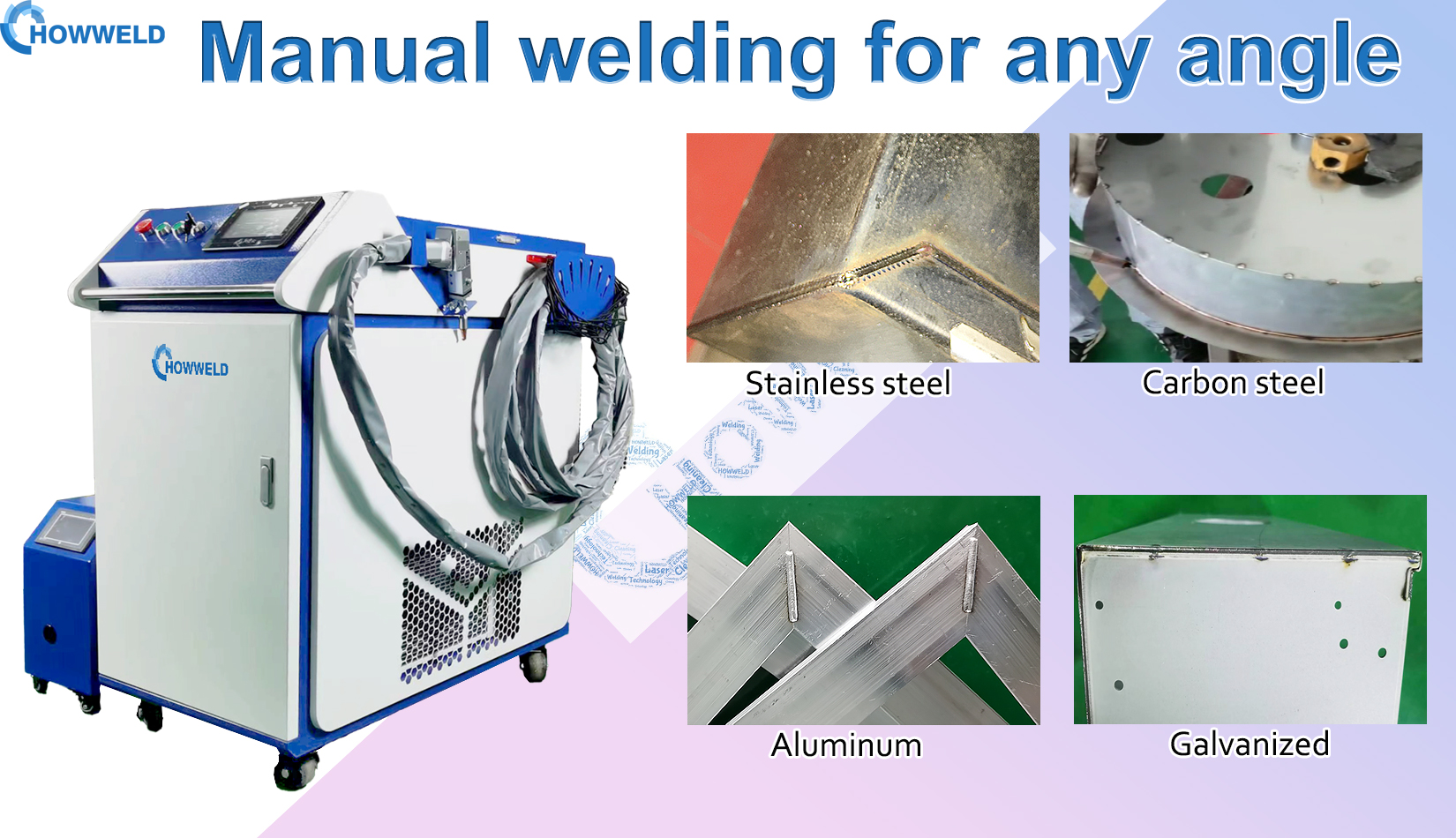

![handheld laser welder](/web/userfiles/Handheld-2023/MANUAL.jpg)
Hand-held laser welding machine,install with fiber laser source,transfer laser by optical fiber line.It uses latest generation laser generator.Install with wobble head which is developed by ourselves. The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam, fast welding speed and no consumables.
Welding stainless steel sheet, iron sheet, galvanized sheet and titanium other metal materials.Perfectly replace the traditional argon arc welding, electric welding and other processes.
Application to widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.
![1000w laser welder](/web/userfiles/product/%E6%9C%BA%E5%99%A8%E8%A7%A3%E9%87%8A%E5%9B%BE.jpg)

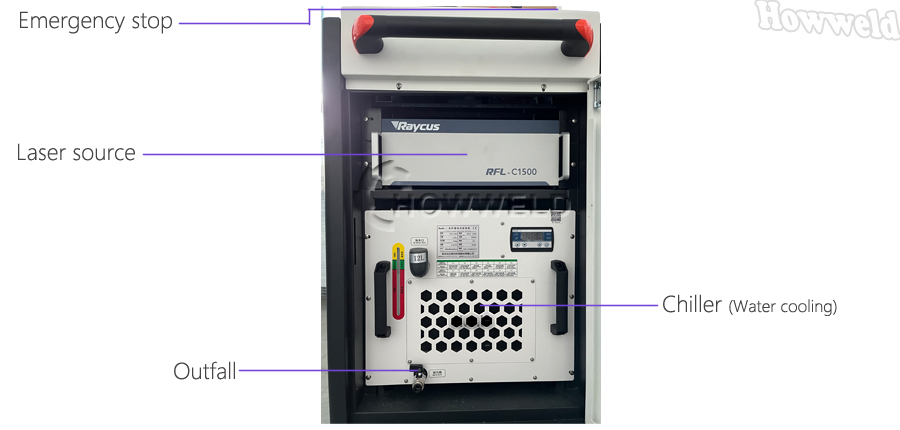

Handheld welding machine configuration:
Laser source | Fiber laser source,Max JPT Raycus IPG |

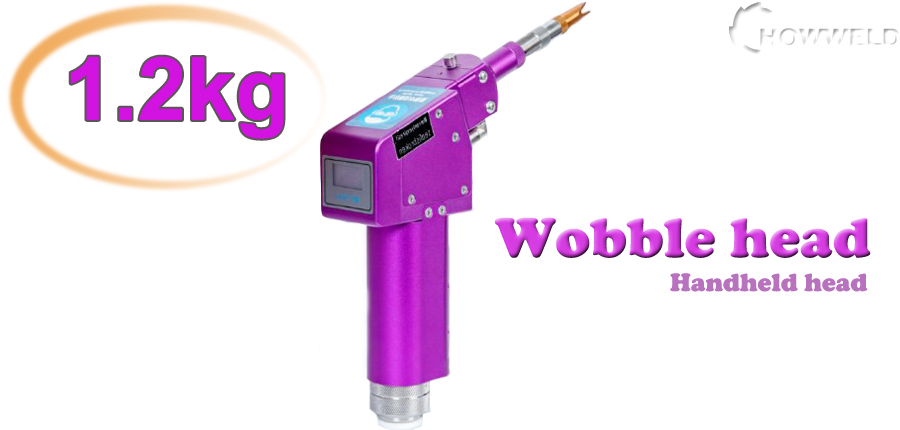

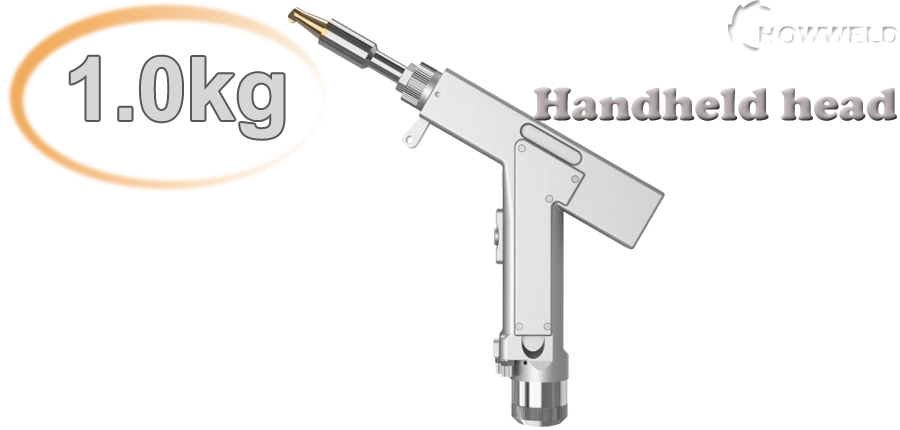

Handheld gun/Laser head | Made in China/QL brand |
Cooling water chiller | S&A |
Welding software | Matching with laser head |
Safety system | Closed circuit system |
![1000w fiber laser welding equipment](/web/userfiles/product/%E7%BF%BB%E7%9B%96-%E8%A7%A3%E9%87%8A%E5%9B%BE.jpg)
![](/web/userfiles/2022Handheld/QL_head.jpg)
![](/web/userfiles/2022Handheld/CQ_Head.jpg)
![](/web/userfiles/Handheld-2023/weldinghead2023%20(3).jpg)
Technical specification:
Model/Power | 1000W | 1500W | 2000W |
Max energy of single pulse | 100J | 110J | 120J |
Laser type | CW Contunuous laser |
||
Laser wavelength | 1064nm |
||
Laser frequency | 1000Hz |
||
Laser spot diameter | 0.4~2mm |
||
Welding penetration | 0.1~3mm |
||
Power adjust range | 5%~100% |
||
Pulse width | 1ms |
||
Power supply | 220V/50-60Hz | 220V/50-60Hz | 380V/50-60Hz |
Power consumption | 1.7KW | 2.2KW | 3.6KW |
Cooling way | Water cooling |
||
Weight | 230KG | 260KG | 285KG |
Chiller‘s water type | Deionized water |
||
Protective gas | Nitrogen gas | Nitrogen gas | Nitrogen gas |
Protective gas pressure | 12~14 MPa |
Which power machine should choose:
Thickness/Materials | Stainless steel | Carbon steel | Aluminium |
0.4~1.9mm thickness | 1 KW | 1 KW | 1 KW |
2~4mm thickness | 1 KW | 1.5 KW | 2 KW |
Handheld Laser machine Advantages:
1. Portable,easy operation.No need having experience worker.
2. High accuracy , the welding spot diameter can be 0.3mm-2mm ;
3. Weld penetration can be 2mm , more stable than traditional YAG laser welder;
4. Handheld welding,it can turn around 360 degrees.
![](/web/userfiles/Handheld-2023/POST.jpg)
Applicable materials and industries:
Widely used in the kitchen industry, household appliances industry, advertising industry, stainless steel door and doors and windows industry, handicraft industry, mold industry, home supplies industry, the furniture industry, the auto parts industry, etc.

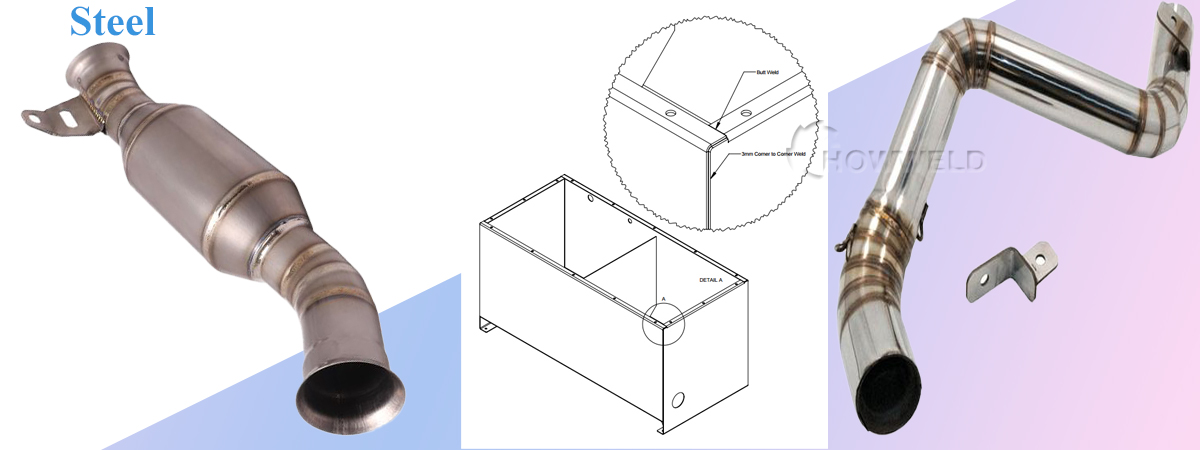

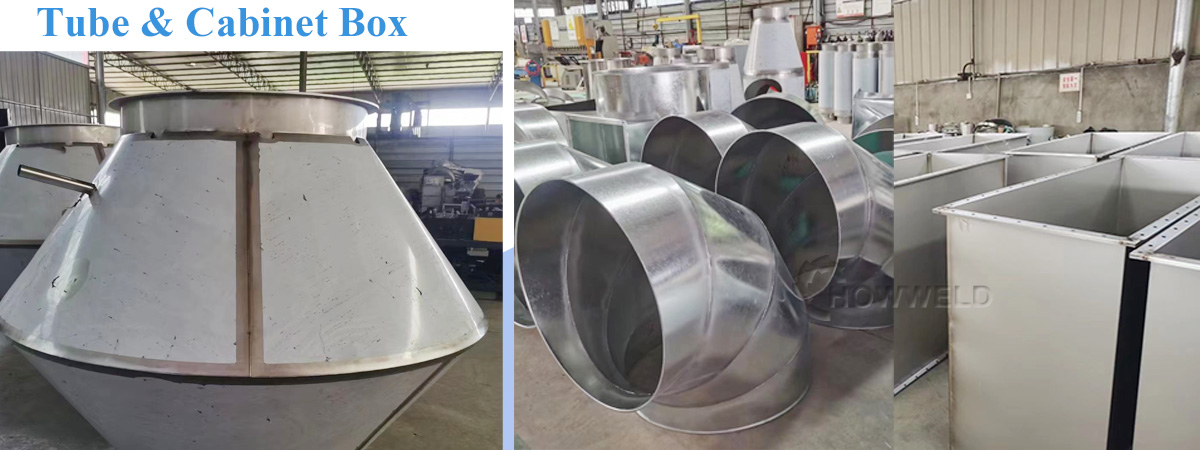

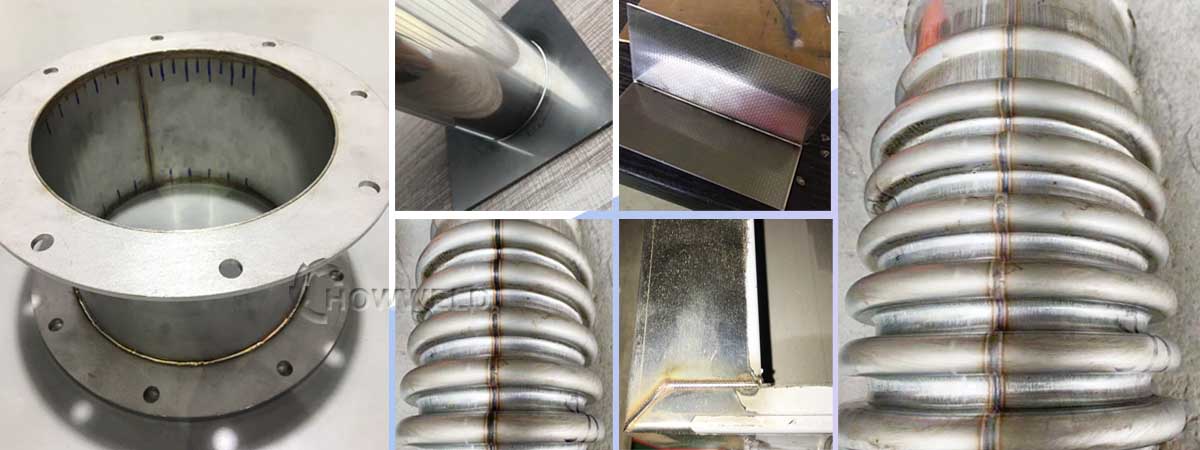

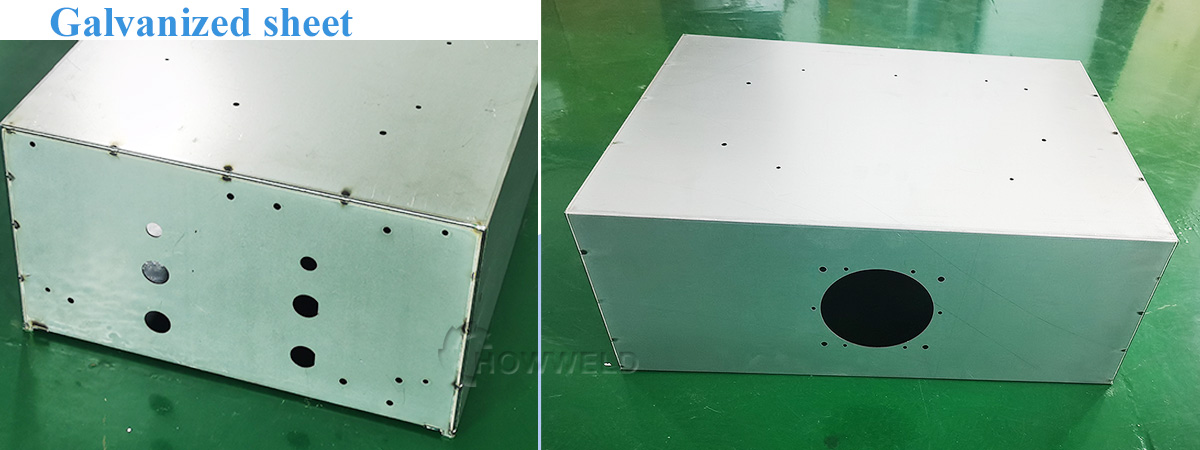

Samples display:
![handheld laser welding machine best price](/web/userfiles/2022Handheld/HANDHELD1200.jpg)
Samples display:
![handheld laser welding machine best price](/web/userfiles/2022Handheld/HANDHELD1200.jpg)
![laser welder howweld](/web/userfiles/Handheld-2023/SAMPLE03.jpg)
![handheld laser welder](/web/userfiles/Handheld-2023/SAMPLE05.jpg)
![fiber laser welding](/web/userfiles/Handheld-2023/SAMPLE04.jpg)
![fiber laser weld for aluminum](/web/userfiles/Handheld-2023/SAMPLE03(1).jpg)
