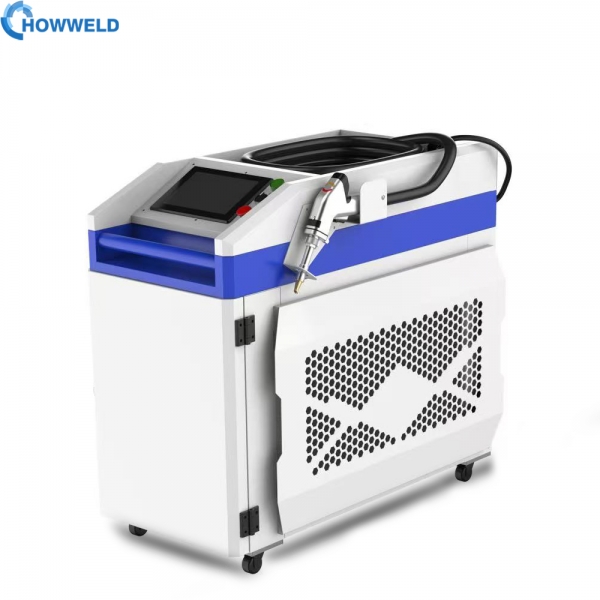

Special Overlap Laser Welding Machine

Stiffener welding process
Reinforcement rib welding
Steel gusset plates in bridge joints
Bracing welding
Rib structure welding
    Professional Overlap Laser Welding Machine | High-Speed & Precision Welding
    Introducing our latest Overlap Laser Welding Machine, engineered to revolutionize your metal joining process. This industrial laser welder delivers high-precision welding with exceptional speed, creating robust, leak-proof seams perfect for sheet metal fabrication, automotive parts, and aerospace components.

    Superior Weld Quality: Achieve strong, aesthetic welds with minimal heat input, reducing distortion and post-processing.

    Enhanced Productivity: Our automated laser welding system ensures fast, consistent cycles, significantly boosting output.

    Unmatched Versatility: Seamlessly weld stainless steel, aluminum, copper, and various alloys with easy parameter adjustments.

    Reliable & User-Friendly: Featuring an intuitive interface and robust safety design for seamless integration into your workshop.

    This fiber laser welding machine is the ultimate solution for manufacturers seeking to upgrade their metal joining capabilities with precision laser technology.
    Technical specification
    Model/Power 1500W 200W 3000W
    Max energy of single pulse 100J 110J 120J
    Laser type CW Contunuous laser
    Laser wavelength 1064nm
    Laser frequency 1000Hz
    Laser spot diameter 0.4~5mm
    Welding penetration 0.3~2mm
    Power adjust range 5%~100%
    Pulse width NONE
    Power supply 220V/50-60Hz 220V/50-60Hz 380V/50-60Hz
    Power consumption 2KW 2.6KW 4.5KW
    Cooling way Water cooling
    Weight 210KG 250KG 265KG
    Chiller‘s water type Deionized water
    Protective gas Nitrogen gas Nitrogen gas Nitrogen gas
    Protective gas pressure 10~12 MPa

    Welding capacity
    Thickness/Materials  Stainless steel Carbon steel Aluminium
    0.3~2.0 mm 2000 W 2000 W 3000 W

    Handheld Laser machine Advantages
    A). Portable,easy operation.No need having experience worker

    B). High accuracy , the welding spot diameter can be 0.3mm-2mm

    C). Weld penetration can be 2mm , more stable than traditional YAG laser welder

    D). Handheld welding,it can turn around 360 degrees.

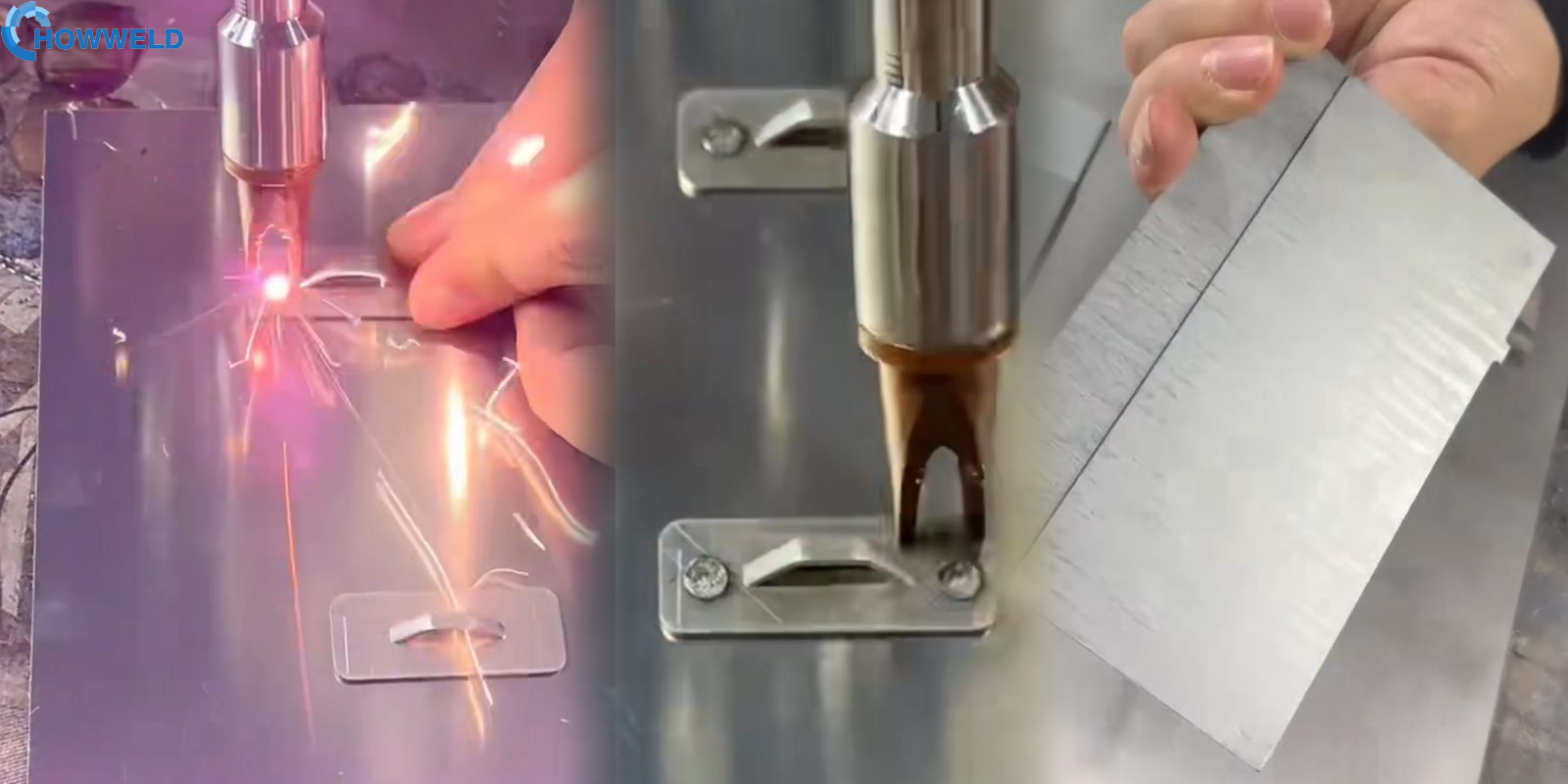

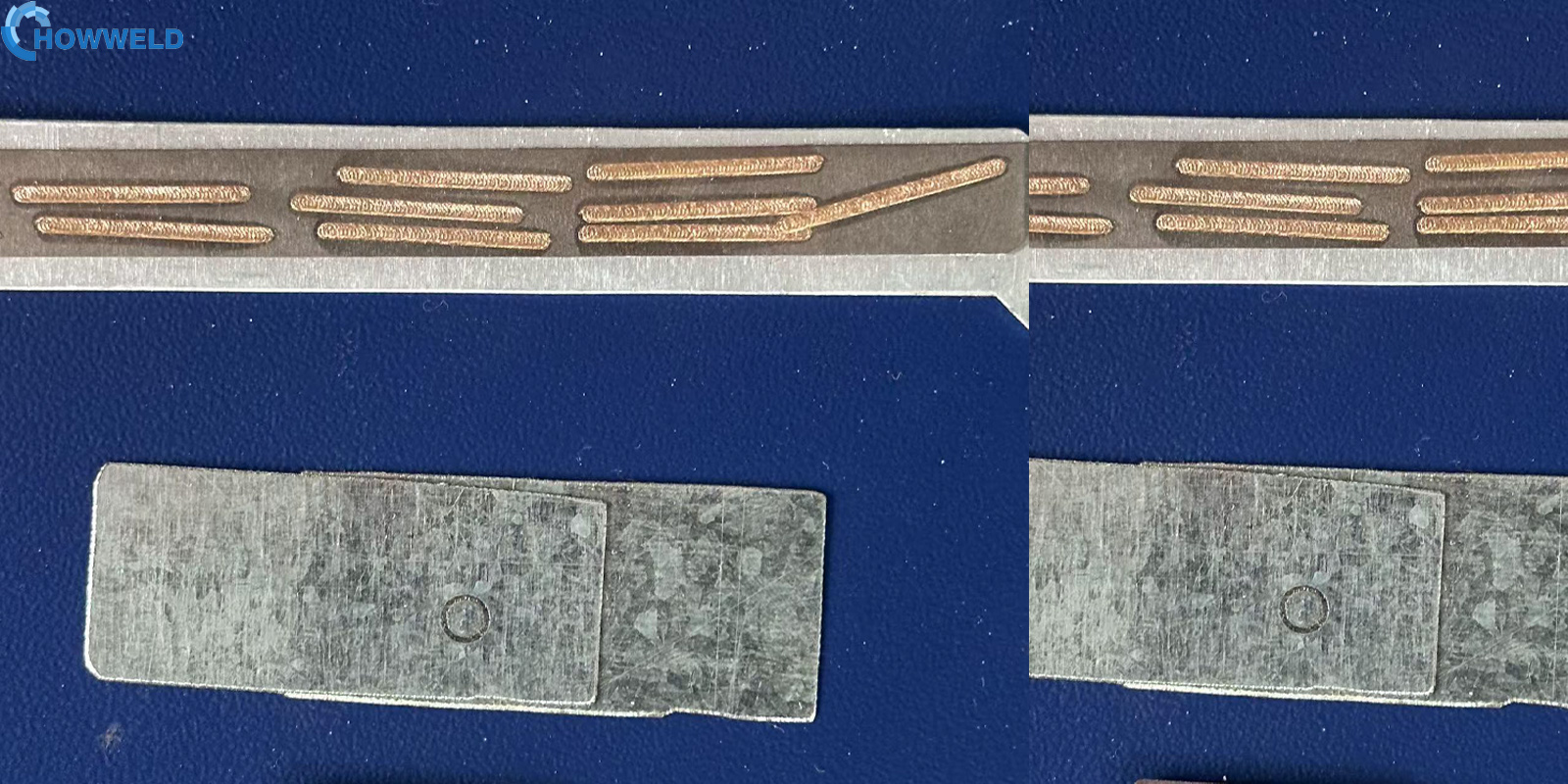

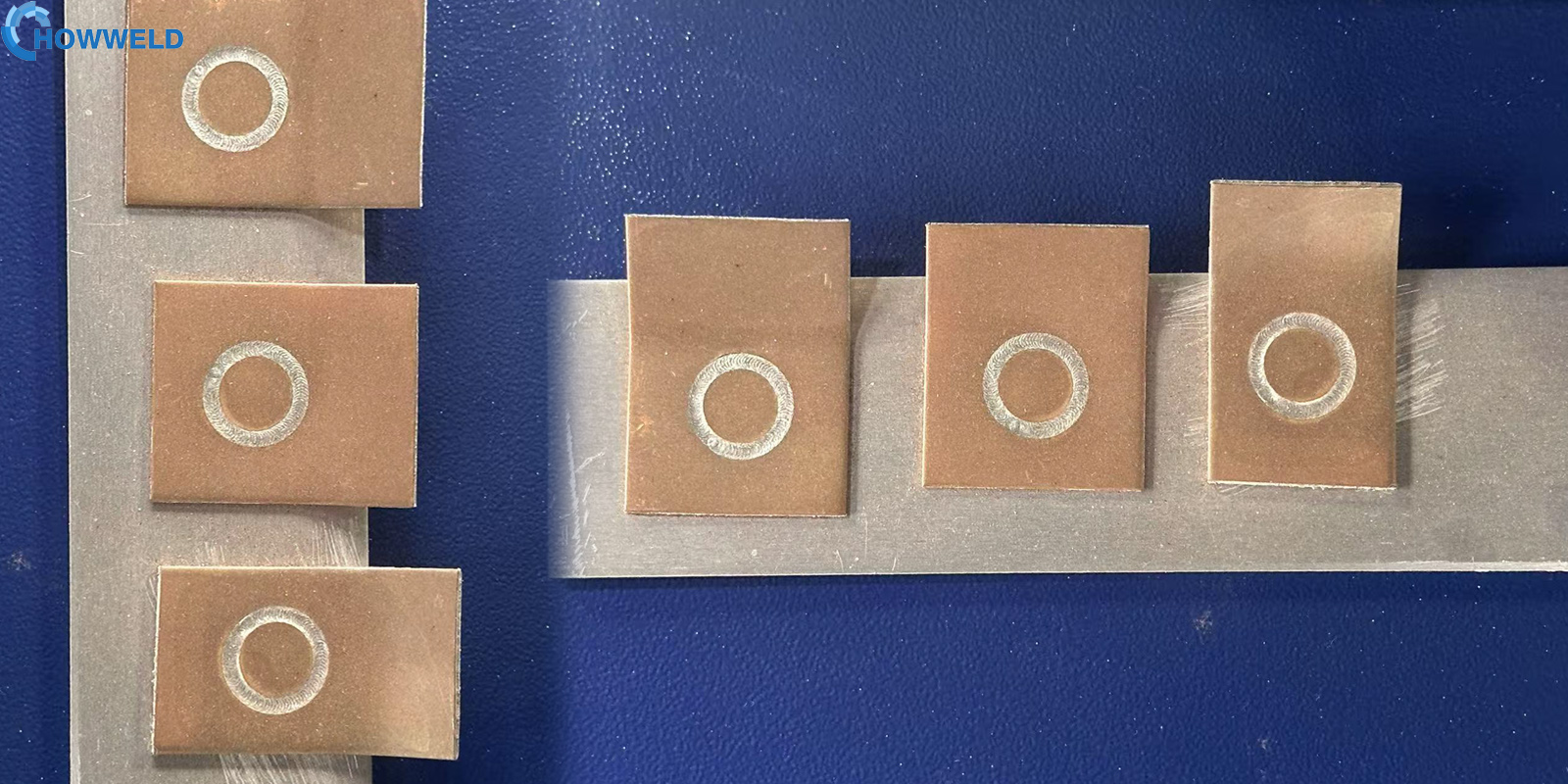

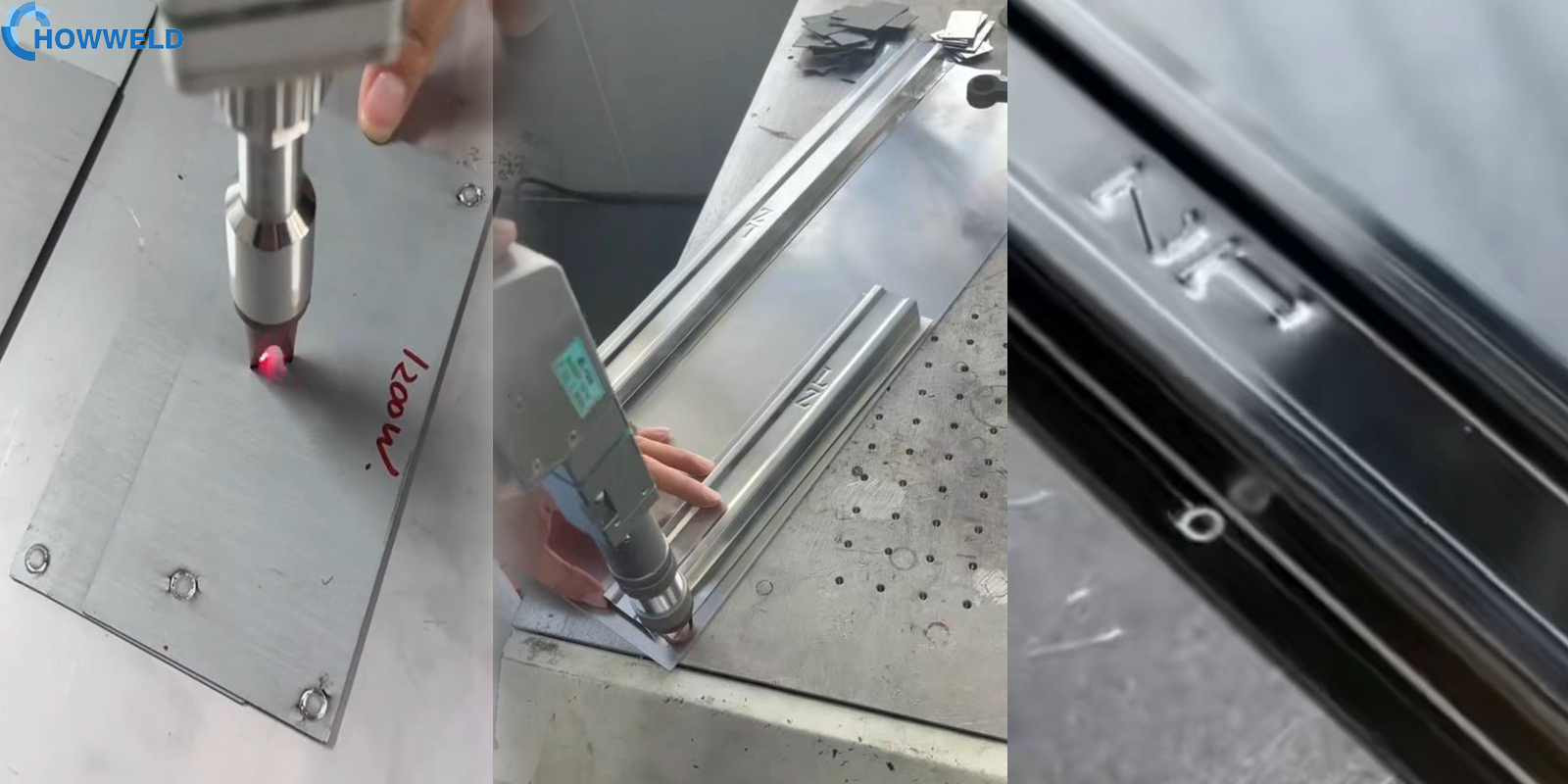

    Sample demonstration
