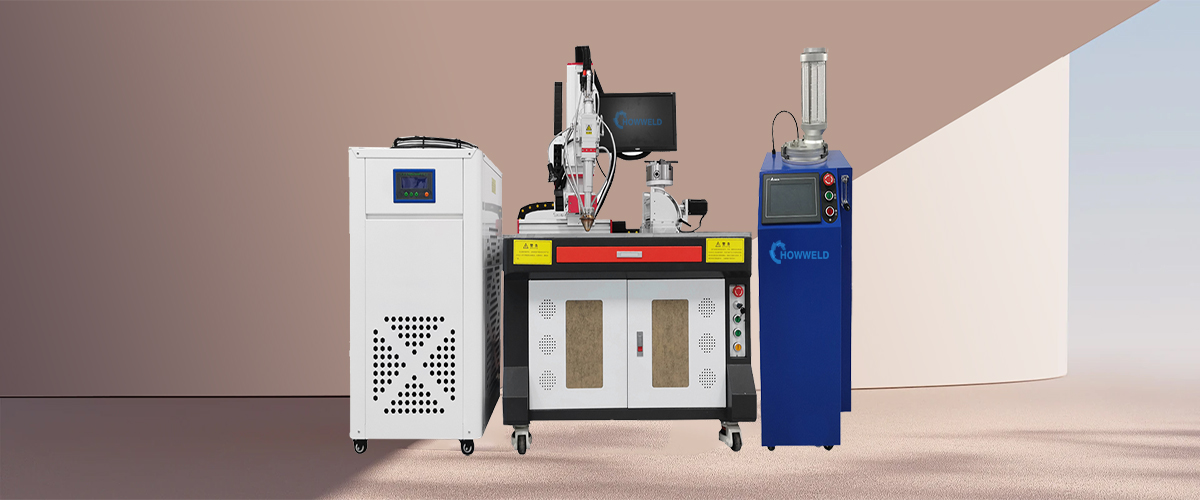

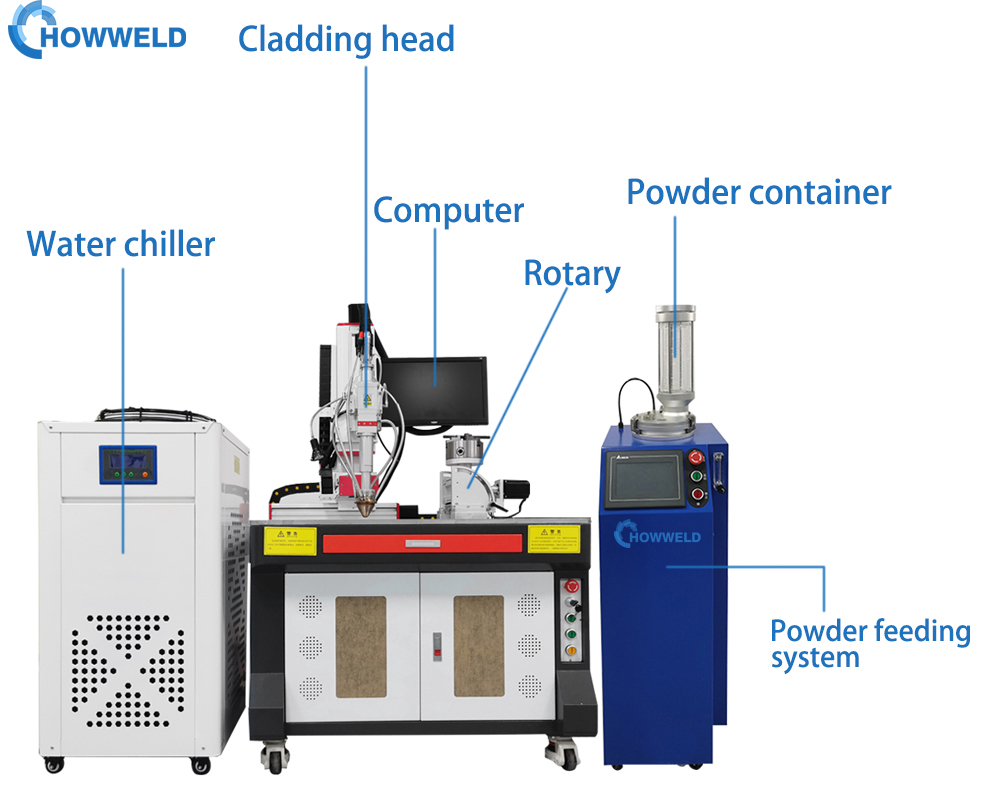

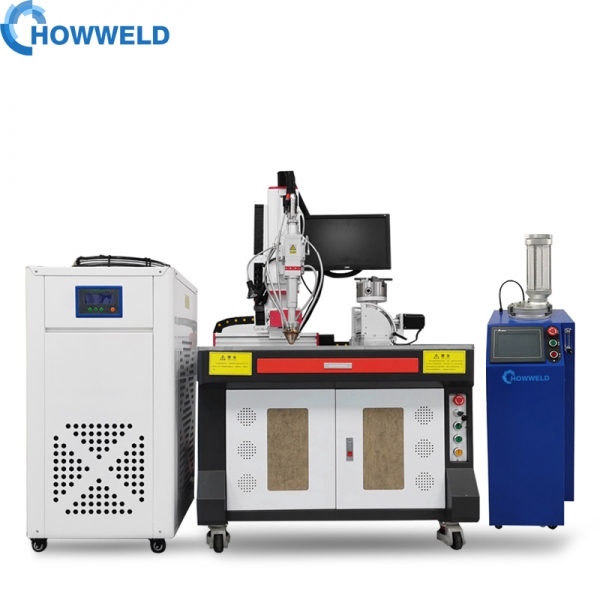

Laser Cladding Machine with 800x500mm Table Medium Power Machine

2000w fiber laser power

800x500mm small size working table

Repair for components
    Laser cladding is realized in the form of metal wire (laser hot wire cladding) or powder cladding. The laser beam forms a molten pool on the surface of the workpiece, and the laser coating material (wire or powder) melted by the laser is added to it. The exposure time is very short. Because the cooling is very fast, only a short delay will occur.

    The result is that one layer is metallurgically connected with the base material. It is tougher than the coating formed by thermal spraying, and it is harmless to health compared with hard chromium coating, for example.



    Cladding speed
    3kw cladding speed:  0.5 Square meters per hour
    6kw cladding speed:  1.2 Square meters per hour

    3kw can caldding for you. If you demand faster caldding speed, then choose 6kw.

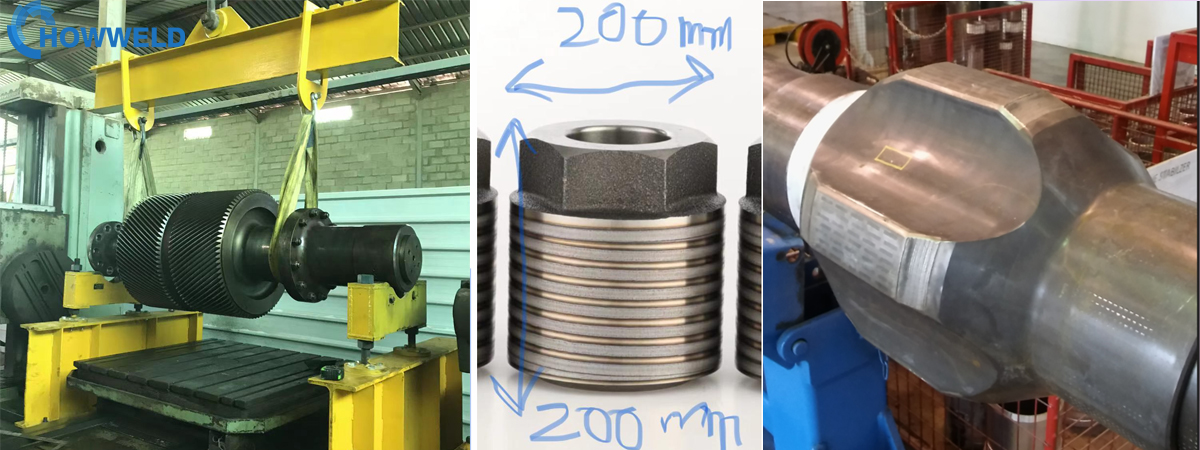

    Repair for components
    Components in the drilling, exploration and extraction of Oil & Gas are exposed to severe wear corrosion and erosion. Reliability of these components in critical to mitigate lost production time and significant financial losses.

    These tough drilling environments require the best protection and surface technologies to extend the life of critical oilfield tools; providing superior protection against abrasion, erosion and corrosion.

    The key beneficial properties of laser cladding is integral to this protection and results in improved reliability, long life, and reduced down time.

    Laser cladding is fast becoming the industry standard in the oil and gas field.




    Application industry
    a) Surface cladding of metal parts or remanufactured restorations;

    b) Perform surface heat treatment on metal parts or remanufactured repair parts, and carry out cladding strengthening or alloying;

    c) It can realize the processing of items a) and b) on the inner and outer surfaces of components with various structural types and sizes, with strong adaptability and flexible manufacturing;

    Field application
