How to remove wood plate surface painting?
Wood surface painting removal pulse laser cleaning machine
Introduction
100W Pulsed Air-Cooled Laser Cleaning Machine for Wood Paint Removal

This 100W pulsed fiber laser cleaning system efficiently removes paint from wood surfaces without damaging the substrate. Utilizing advanced air-cooling technology, it offers stable performance with adjustable parameters (pulse frequency: 20-100kHz, spot size: 0.2-2mm). Ideal for furniture restoration and woodworking, it provides:
- Non-contact cleaning – No mechanical abrasion
- Precise control – Selective paint layer removal
- Eco-friendly – No chemicals or dust pollution
- Compact design – Easy integration into production lines

With fast processing speeds (1.5-2m²/h) and low thermal impact, it outperforms traditional sanding/chemical methods in quality and efficiency.

1. Test background and purpose
The removal of paint from wood surfaces is an important process requirement in areas such as furniture renovation and ancient building restoration. Traditional chemical paint stripping and mechanical polishing methods have problems such as environmental pollution and substrate damage. Pulse laser cleaning technology has shown unique advantages in wood surface treatment due to its non-contact and selective removal characteristics.

2. Test purpose
1.Verify the removal effect of 100W pulse laser cleaning machine on paint on wood surface

Determine the optimal combination of process parameters

Assess the degree of impact on the wood matrix

Establish quality control standards

2. Testing equipment and materials
Equipment name, specifications, and parameters
Pulsed fiber laser with a wavelength of 1064nm and a maximum power of 100W
Scanning speed of scanning galvanometer system 500-10000mm/s
Air cooling machine, no need connect with gas.
Dust removal device with an air volume of 200m ³/h and a filtration accuracy of 0.3 μ m

testing materials
Substrate: pine, oak, walnut wood samples (100 × 100 × 20mm)

Coating: Polyurethane paint (thickness 80-120 μ m)

3. Test plan design
Laser power density (adjusted by power and spot size)

scanning speed

pulse frequency

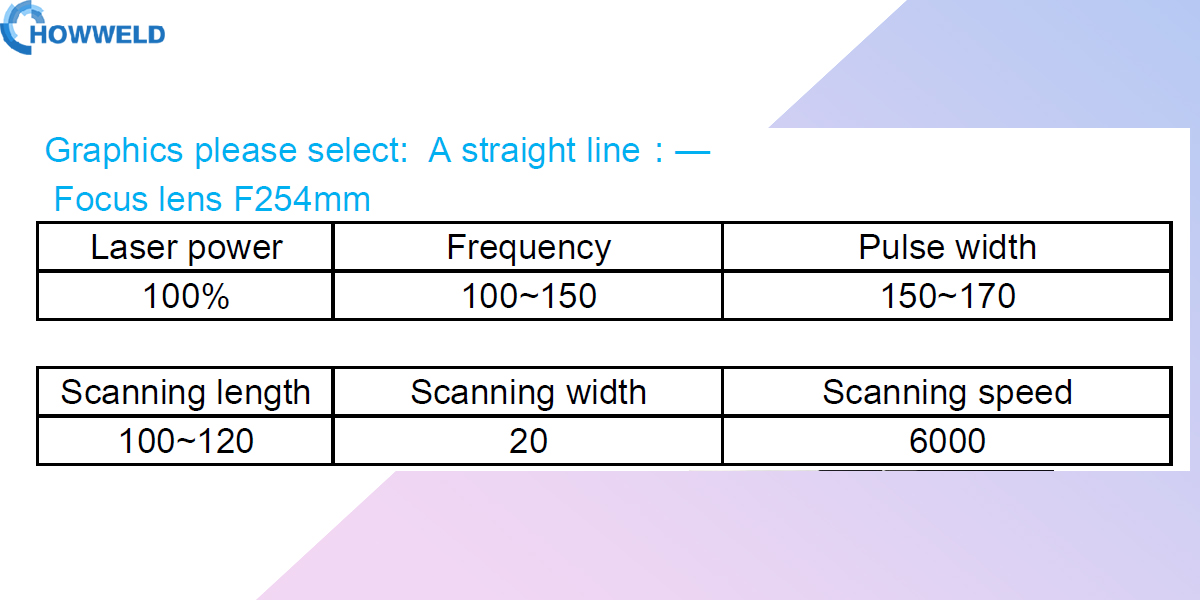

4. Test parameters
Wavelength: 1064nm

Working distance: 160mm

Spot diameter: 0.5mm (adjustable)

Scanning width: 65mm

5. Variable parameter range:
Parameter testing scope
Average power 50-100W (with a gradient of 20W)
Pulse frequency 80-200kHz
Scanning speed 500-10000mm/s (4 levels)

6. Testing process
Sample preprocessing
Real time monitoring (infrared temperature measurement, high-speed camera)
Effect evaluation (to be conducted 1 hour later)
Data recording and analysis

7. Evaluation methods and standards
Clearance efficiency:
Unit area processing time 3 (s/cm ²)
Surface roughness 2.6 (Ra, μ m)

8. Impact of substrate:
Depth of heat affected zone (μ m)
Change rate of flexural strength (%)
Quality loss rate (%)

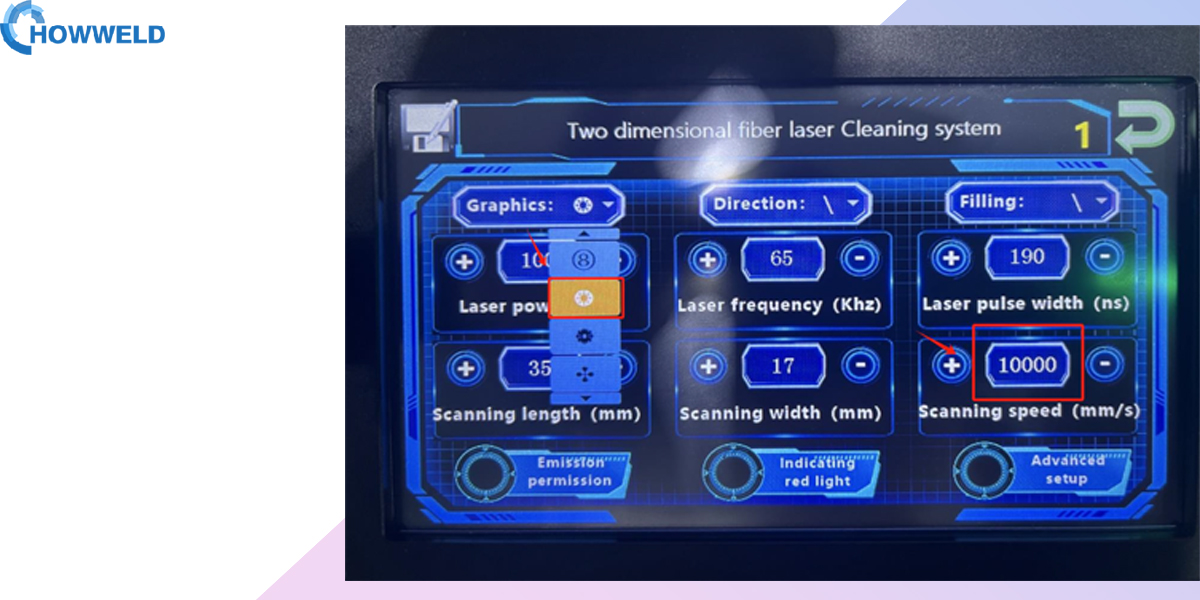

9. Recommended system configuration
Laser: 100W pulsed fiber laser (pulse width 100-200ns)
Optical system: Dynamic focusing galvanometer (F=160mm)
Auxiliary system: real-time visual monitoring

Automatic dust removal

10. Test Conclusion

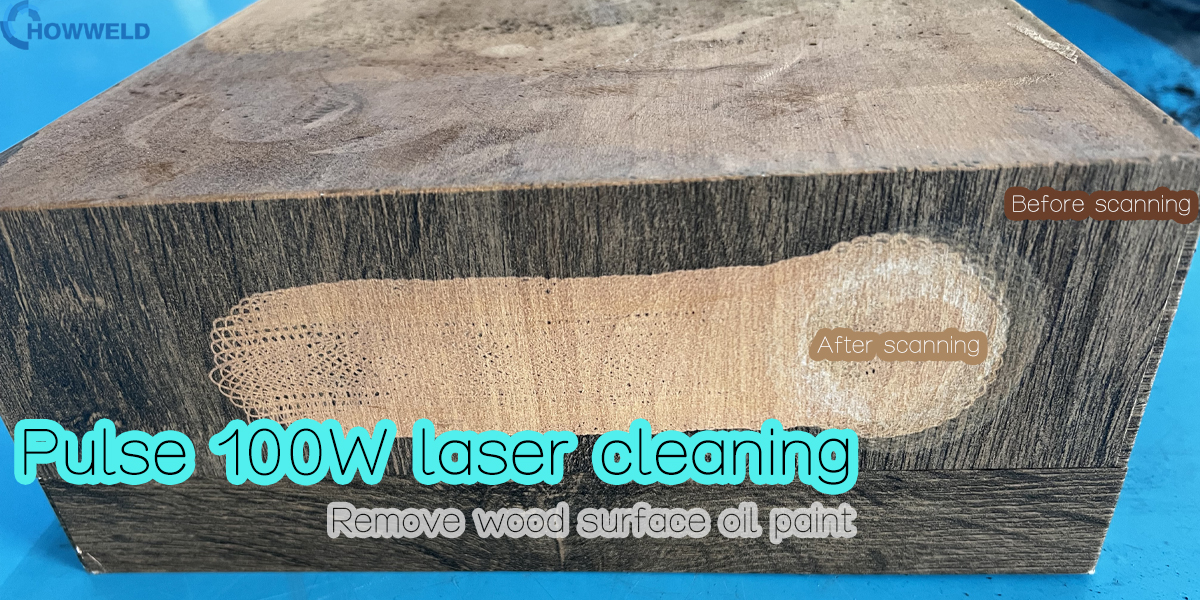

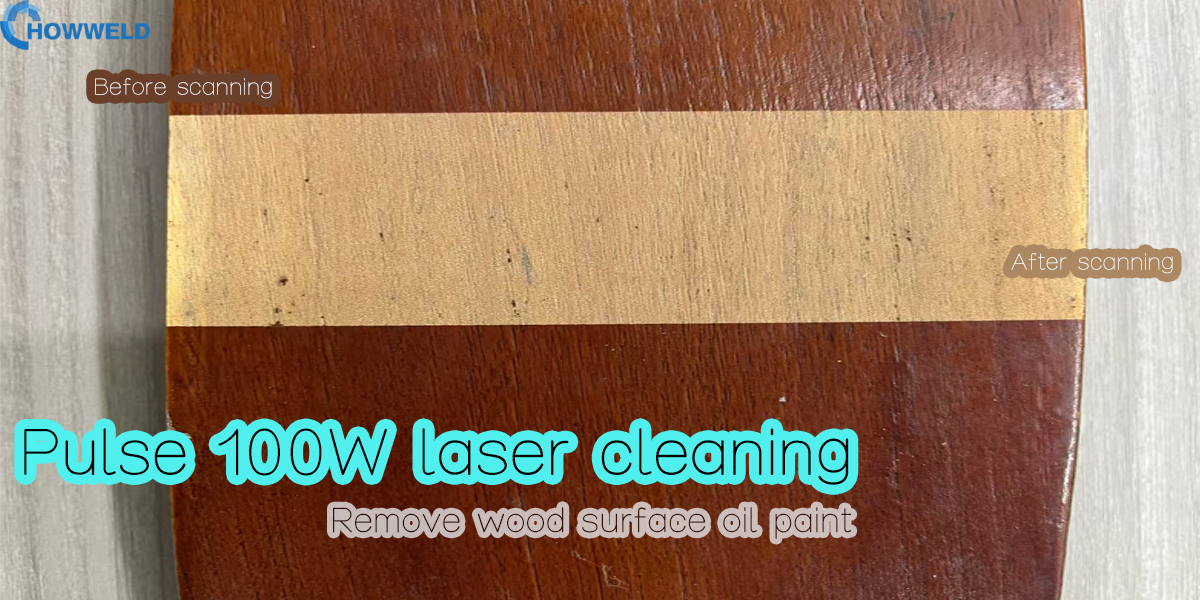

100W pulse laser can effectively remove paint on the surface of wood, with a removal rate of>95% under the optimal process window

Controllable impact on substrate (heat affected zone<100 μ m, strength loss<5%)

Compared to traditional methods, it increases efficiency by over 30% and is more environmentally friendly

11. Application suggestions
Furniture restoration: Priority for partial restoration of high-end solid wood furniture

Preservation of ancient architecture: removal of paint layers suitable for finely carved areas

This test confirms the feasibility of pulse laser cleaning technology in wood surface treatment, providing a new technological choice for green wood product processing. The next step is to conduct systematic research on different tree species and establish a more comprehensive process database.

To get more details or videos please feel free to contact with us/Howweld team info@howweld.com
