1.5 meter moving table design for handheld laser welding system

Time:2021-09-26 Views:1015

Handheld welding machine‘s partner

A handheld welding machine,with a machine body,and laser head,it is very easy operating to weld metal sheets,or others metal products.
Such as stainless steel,iron,aluminum alloy,galvanized sheets,even copper materials.

Handheld head can weld any angle,any corner,with 360 degree rotate,or moving.

But what is its weak point?
Worker weld long time,his hands feel tired,and welding effect not flat,not smooth.At last,we design a working talbe for the machine.

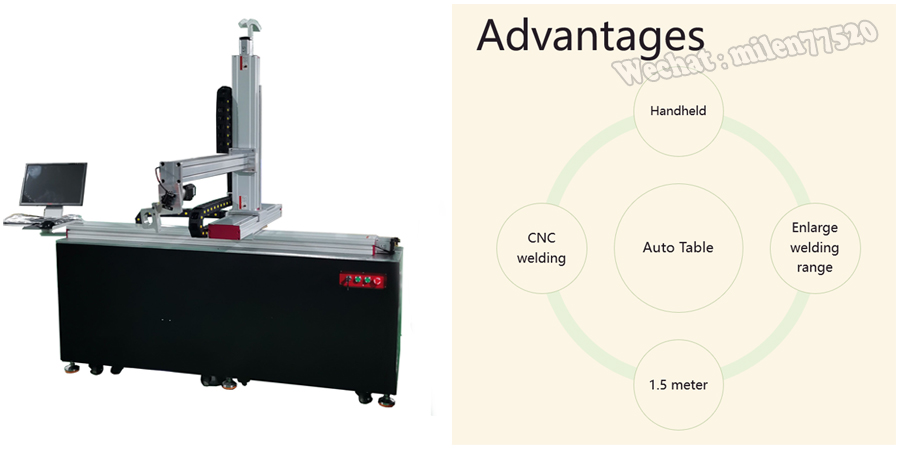

Double function moving table specification:

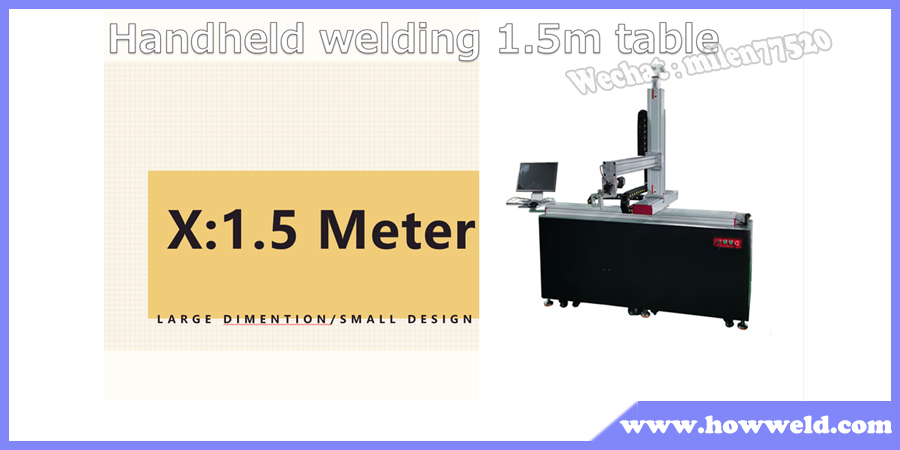

1500*600*600mm moving table
Install with handheld laser welding system / With laser welding system
Moving system:Servo motor with XYZ axis
Position precision:0.05mm
Vision : red light

Precision screw guide

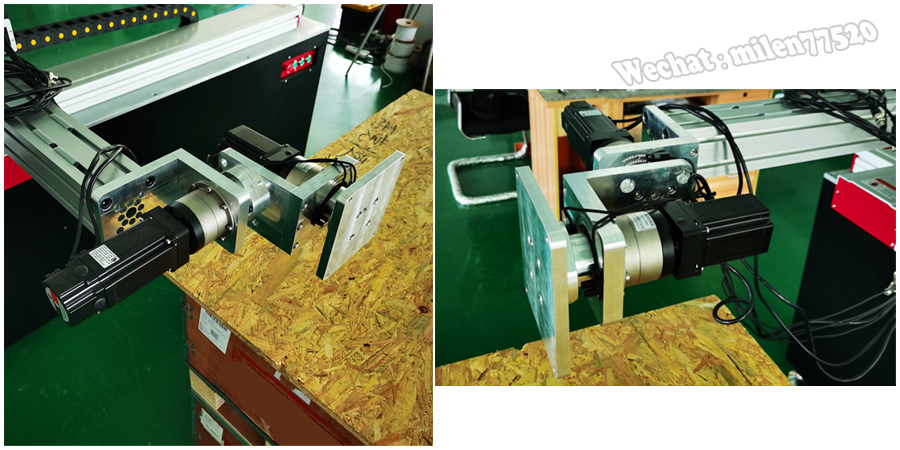

Servo motor
Optional: 4 axis moving / 6 axis moving

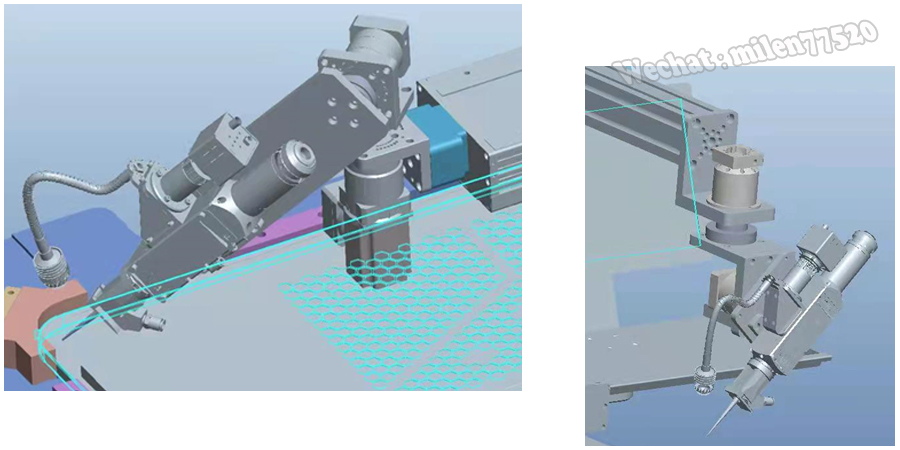

Welding head rotate and adjust angle
Max weight laser head can bear less than 2.5kg





Design by Howweld
