1kg weight laser head for laser cleaning system
Time:2022-02-26
Views:832
1 KG Laser cleaning head Promote to the market
Laser cleaning system with a scanning head which laser beam come out for removal metal rust.we design 1kg laser head so that operators manual cleaning products in a long time,will not feel tire.
Fiber laser cleaning head design by howweld.
Laser cleaning technology is a process in which high-energy laser beams are used to irradiate the surface of the workpiece, so that surface contaminants, rust spots or coatings are instantly excited or peeled off, so as to achieve a clean process. The principle is that the pulsed beam emitted by the laser is absorbed by the pollution layer on the surface to be treated, and the pollution layer absorbs the light energy and generates transient superheat.
The temperature rises suddenly, the particles of the pollution layer expand rapidly, and the particles that absorb the energy generate shock waves. The shock waves turn the pollutants into fragments and are eliminated, but the temperature is not enough to evaporate the surface of the substrate, protect the surface of the substrate, and remove the pollution layer.
.jpg)

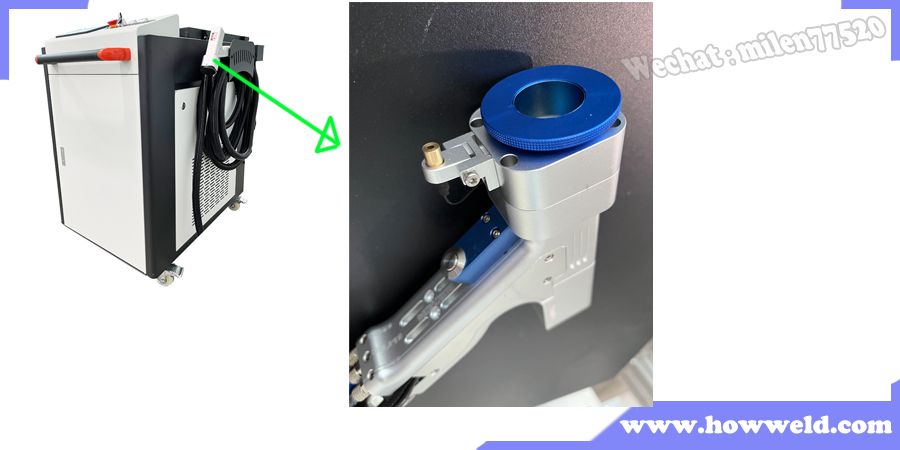

The laser cleaning head is composed of two-dimensional laser scanning system, focusing field lens, control card and software. Our laser cleaning heads are compact in structure and easy to use, and are especially suitable for working with fiber lasers to form a laser cleaning machine with reliable quality. The laser cleaning head can be cleaned in a fixed position or hand-held, which is determined by the user according to the items to be cleaned and the environment.
| Product configuration | Specification |
| Handheld optical fiber continuous cleaning head | HWC-1S |
| Power | 2kW / 3KW (standard configuration 2kW) |
| Interface type | QBH |
| Laser band | 1064 |
| Product weight | 0.78kg |
| Galvanometer mode | Monocular mirror (ARC) |
| Galvanometer frequency | 0-200hz adjustable |
| Working spot size | 0-150MM adjustable |
| Applicable laser brand | Common to all lasers worldwide |
| Electric machinery | Imported chip devices |
| Drive plate | High speed and stability of imported devices |
| Software | Independently |
.jpg "laser cleaning head")
We testing for more than 60 days to cleaning again and again,to remove metal rust.
In order to achieve convenient operation, a suitable laser head is necessary. At present, there is no lightweight laser head on the market.

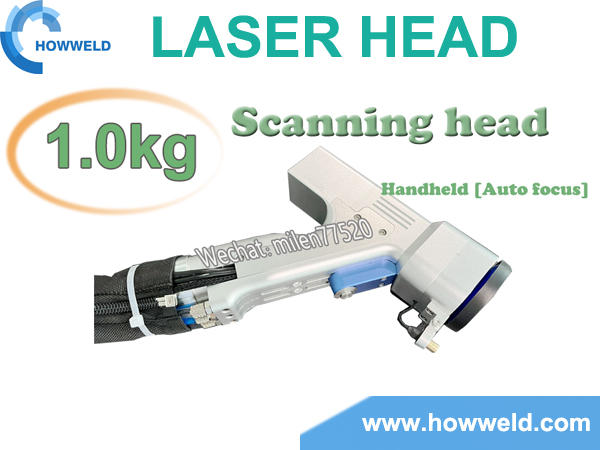

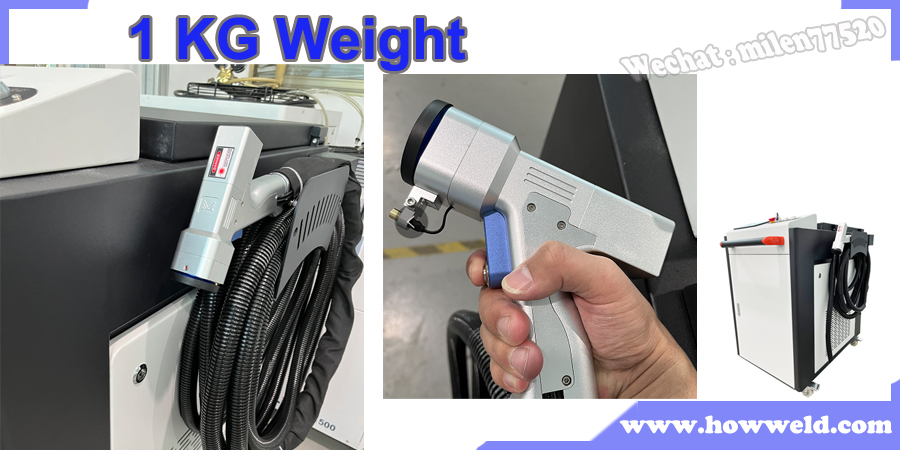

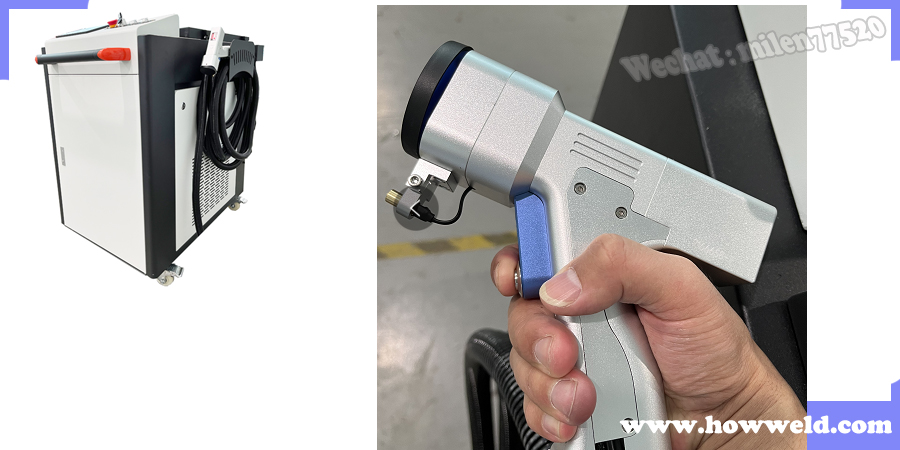

We have designed a special laser head that weighs only 1kg but can withstand impact.
.jpg)
