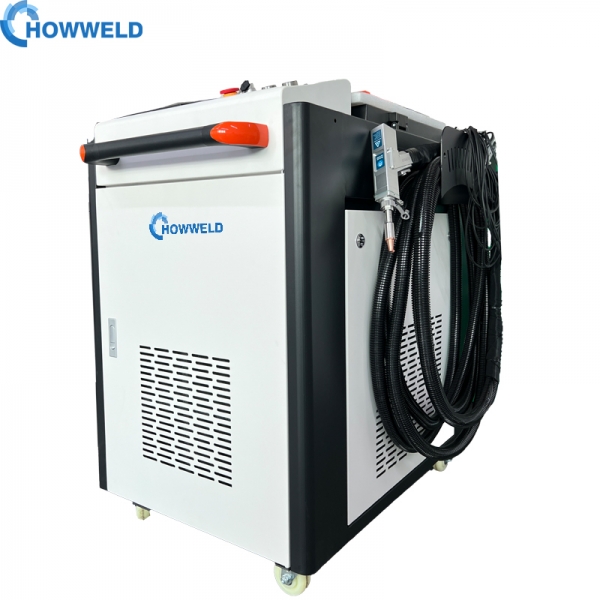

1000W 1500W 2000W 3000W Rust Removal Laser Cleaning Machine

Fiber laser cleaning machine, different power 1KW, 1.5KW, 2KW

Non-contact cleaning.

Scanning head weight: 1kg

    Laser cleaning technology:
    1. Laser cleaning technology refers to the use of high-energy laser beams to irradiate the surface of the product‘ surface/workpiece to instantly evaporate or peel off the dirt,rust or coating on the surface,so as to cleaning process.

    2. It‘s application objects involve the protection of machinery industry,microelectronics industry and artwork.

    3. The principle of laser cleaning is mainly based on the fact that the contaminants on the surface of the object absorb the laser energy,or vaporize and volatilize,or instantly expand by heat to overcome the adsorption force of the particles on the surface,and make it detach from the surface of the object.

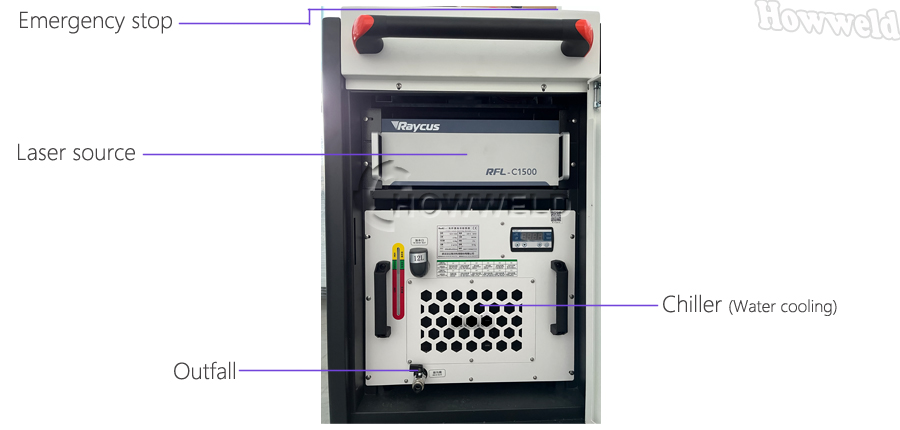

    Handheld laser cleaning configuration:
    Main parts Specification
    Fiber laser source Fiber laser source Raycus or IPG
    Cleaning head Made in China
    Water chiller Made in China
    Control system Made in China



    Technical specification:
    Model HW-LC-1000W
    Laser power 1000W
    Cooling way Water cooling
    Laser wavelength 1064nm
    Power supply AC220V/50Hz
    Power consumption 2500W
    Demension L*W*H 1230*620*960mm
    Weight 150kgs
    Working Temperature 5~40℃
    Focal depth 10mm
    Laser source type Fiber laser source
    Fiber optic length 5 meters

    Features:
    A: First high power fiber laser cleaning machine in China.
    B: Non-contact cleaning, no damage to workpiece.
    C: Easy to operate,Either portable or equipped with robot for automatic cleaning.
    D: Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.
    E: Stable laser cleaning system, free maintenance.


    Brief introduction:

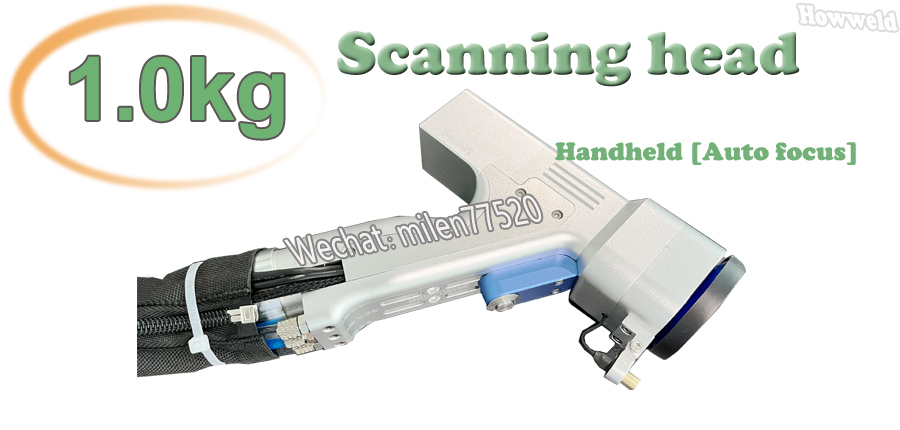

    Cleaning head weight 1 kg
    Scanning width 110 mm
    Machine weight 160 kgs
    Cleaning speed 60m²/h

    Laser cleaning machine is the latest high-tech product in recent years.
    Plug in power supply,turn on then can start to cleaning.
    Easy to install,operate,easy to achieving automation.

    Without chemicals,media,dust,water.
    Cleaning with no detergent,no media,no dust,no water.
    Auto focus,can clean curved surface,gentle cleaning surface.
    Cleaning resin,oil stain,rust,coating materials,paints on workpiece surface.

    Applicable materials and industries:
    1.Metal surface rust
    2.Painting
    3.Oil stain,contaminant
    4.Oxide layer,oxide coating
    5.Welding surface pre-treatment

    Automobile tire mould,Rubber mold,Anilox roller,Ceramic anilox roller,metal welding spot;
    Stone surface,Cultural relics protection,Marble surface.Railway track.

    Samples display:
