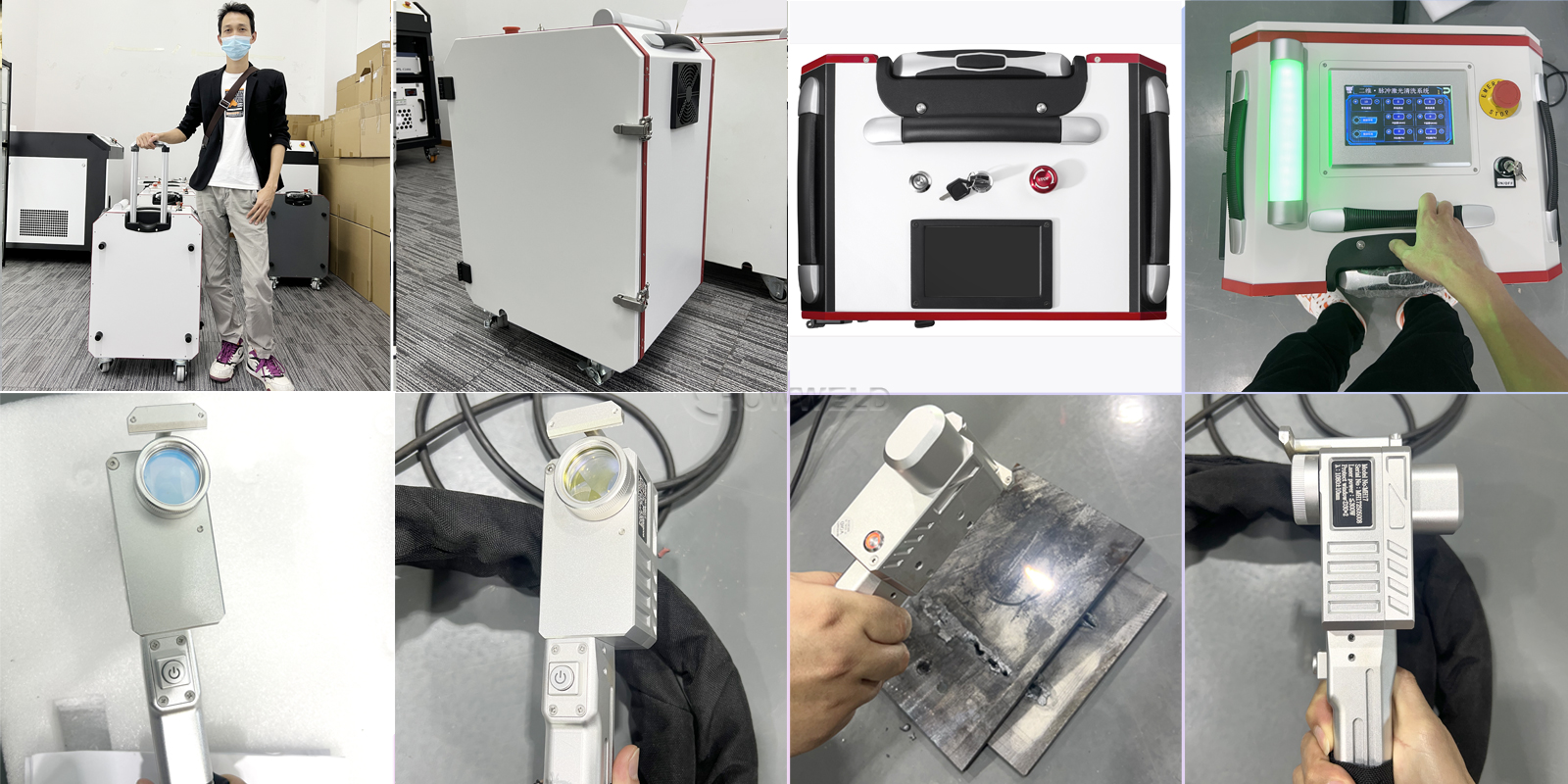

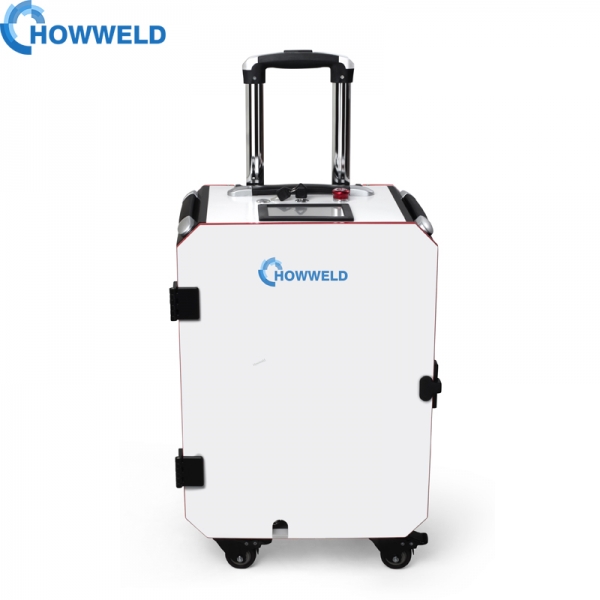

IntroductionTrolley-Mounted Pulsed Laser Cleaner—your portable solution for hassle-free industrial surface treatment. Designed with mobility in mind, its trolley-style build enables effortless transportation to job sites, eliminating the need for fixed cleaning stations. Operation couldn’t be simpler: an intuitive control panel with preset modes lets both seasoned technicians and new users tackle rust, paint, oxide layers, and contaminants in minutes.
Maintenance is equally straightforward, with tool-free access to core components and minimal consumables, cutting downtime and long-term costs. Most importantly, its precise pulsed laser technology ensures non-abrasive cleaning that never damages the underlying substrate, preserving workpiece integrity for post-processing. Ideal for automotive, aerospace, and metal fabrication!
#Laser Cleaning #Industrial Maintenance #Howweld
Characteristics of traditional cleaning methods
1. Mechanical friction cleaning: high cleanliness, easy to damage the substrate;
2. Chemical corrosion cleaning: no stress cleaning, heavy pollution;
3. Solid and liquid jet cleaning: high flexibility and complex waste liquid recovery;
4. High frequency ultrasonic cleaning: small matrix damage and limited single cleaning volume.
Laser cleaning features: efficient and green cleaning technology
1. No consumables, minimal pollution, no chemicals and cleaning fluid;
2. No contact, no grinding, no stress, minimal damage to the matrix;
3. Optical fiber transmission, which can clean inaccessible parts;
4. Wide range of application, rust, paint and oil removal;
5. It can remove pollution particles below nanometer level and has high cleanliness;

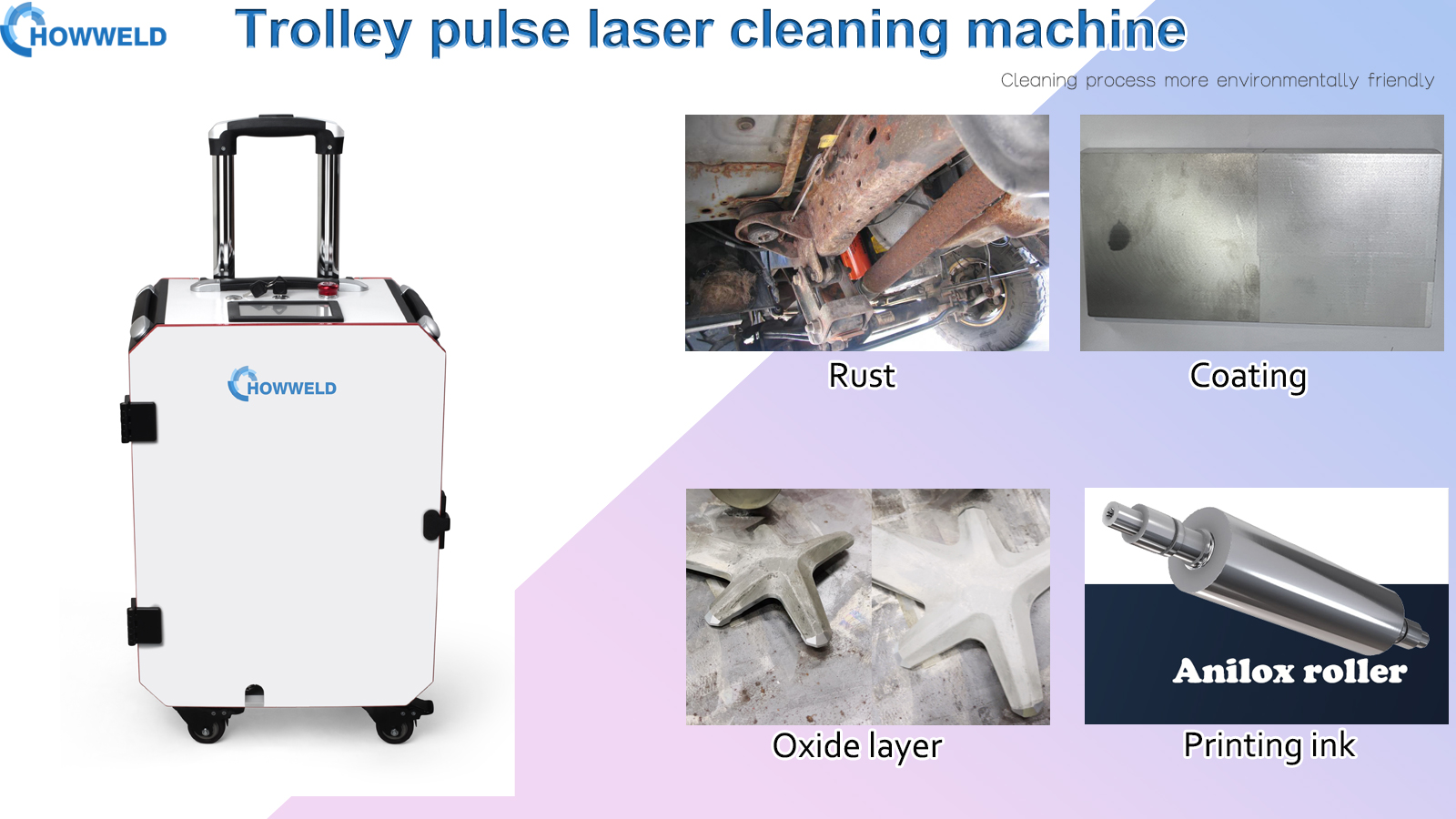

Application
Laser cleaning equipment is a new generation of high-tech products for surface cleaning. Easy to install, operate and automate. The utility model has the advantages of simple operation, no chemical reagent, no medium, no dust and no water when the equipment is turned on, automatic focusing, surface fitting cleaning and high surface cleanliness, and can remove the resin, oil stain, stain, dirt, rust, coating, coating and paint on the surface of the object.
Samples display:
Key words: Trolley Pulse Laser Cleaning Machine
|
Model
|
HW-LPA-200W
|
HW-LCA-100W
|
|
Laser Power
|
200W
|
100W
|
|
Cooling Way
|
Air Cooling [Without water chiller]
|
|
|
Laser Wavelength
|
1064 nm
|
|
|
Max pulse energy(mj)
|
1.8mj
|
|
|
Power Supply
|
AC220V/50Hz. Current 23~28A
|
|
|
Machine power consumption
|
1300W
|
800W
|
|
Dimension：L*W*H
|
538mmX412mmX685mm
|
|
|
Weight
|
80KG
|
75KG
|
|
Working Temperature
|
5-36°C
|
|
|
Laser head scanning width
|
160mm
|
|
|
Laser source type
|
Pulse Fiber Laser Source
|
|
|
Options
|
Portable/ Automation/Robot system
|
|
|
Maximum Optical fiber line length
|
3 Meters
|
|
Samples display:
Key words: Trolley Pulse Laser Cleaning Machine
