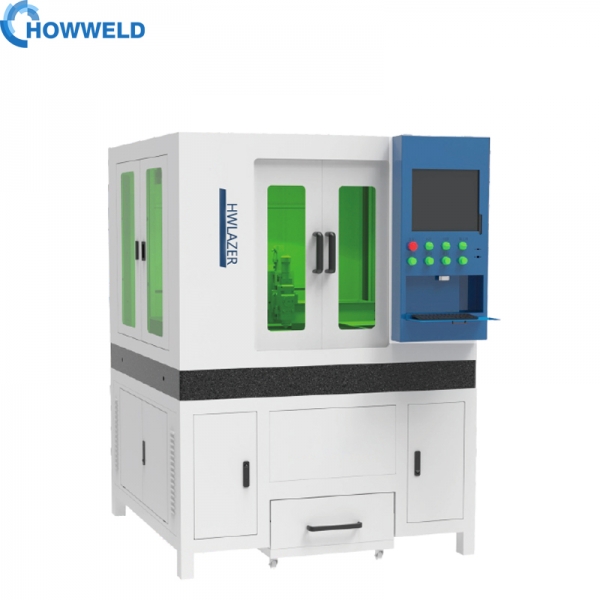

Small size Laser cutting machine for metal sheets
Expecially cut for stainless steel,aluminum,titanium sheet
500W,1000W,1500W,2000W,3000W
500W,1000W,1500W,2000W,3000W
Brief introduction:
Fiber laser cutting machine launch horizontal laser beam emitted by the laser source,transmission laser by optical-fiber through a 45° total reflection mirror,then focused by a lens to form a very small spot at the focal point.
When the spot is irradiated on the material,it will quickly heated to the vaporization temperature and evaporates to form holes.As the beam moves on the material, and with auxiliary gas (carbon dioxide gas, oxygen, nitrogen, etc.) to blow away the molten slag, the holes continuously form a narrow width (such as 0.1mm or so) cut the seam to complete the cutting of the material.
When the spot is irradiated on the material,it will quickly heated to the vaporization temperature and evaporates to form holes.As the beam moves on the material, and with auxiliary gas (carbon dioxide gas, oxygen, nitrogen, etc.) to blow away the molten slag, the holes continuously form a narrow width (such as 0.1mm or so) cut the seam to complete the cutting of the material.

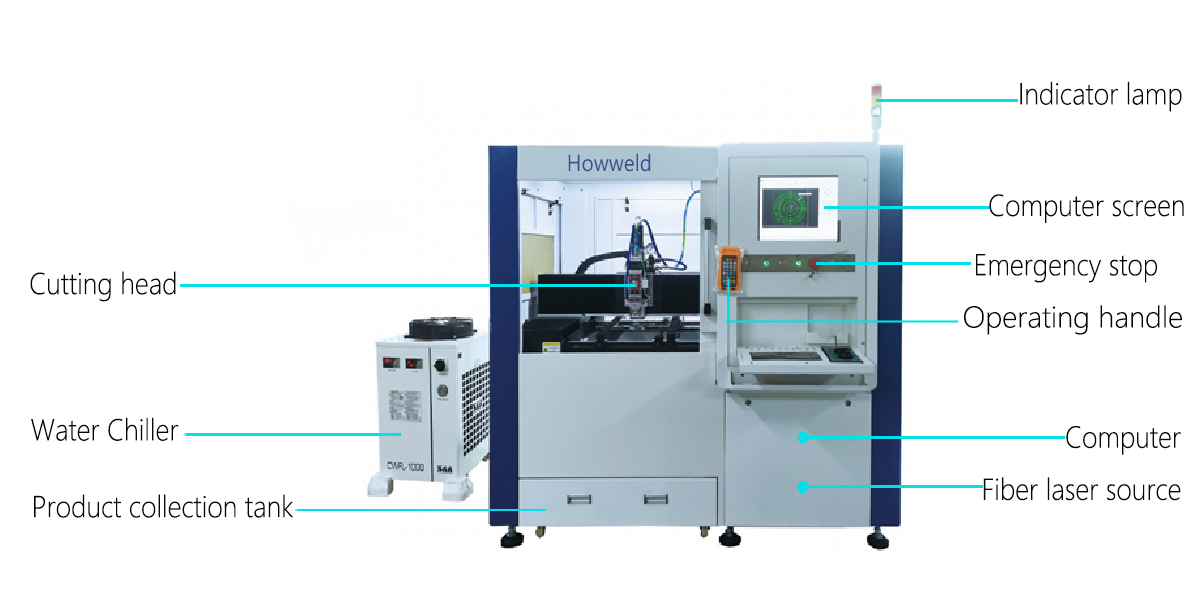

Machine configuration:
| Laser source | Fiber laser source,Max Raycus IPG |
| Cutting head | Made in China |
| Cooling water chiller | S&A Brand |
| Cutting software | Matching with laser head |
| Computer | Industrial computer |
Technical specification:
| Model/Power | 1000W | 1500W | 2000W |
| Max energy of single pulse | 100J | 110J | 120J |
| Laser type | CW Contunuous laser |
||
| Laser wavelength | 1080nm |
||
| Laser frequency | 10~50KHz |
||

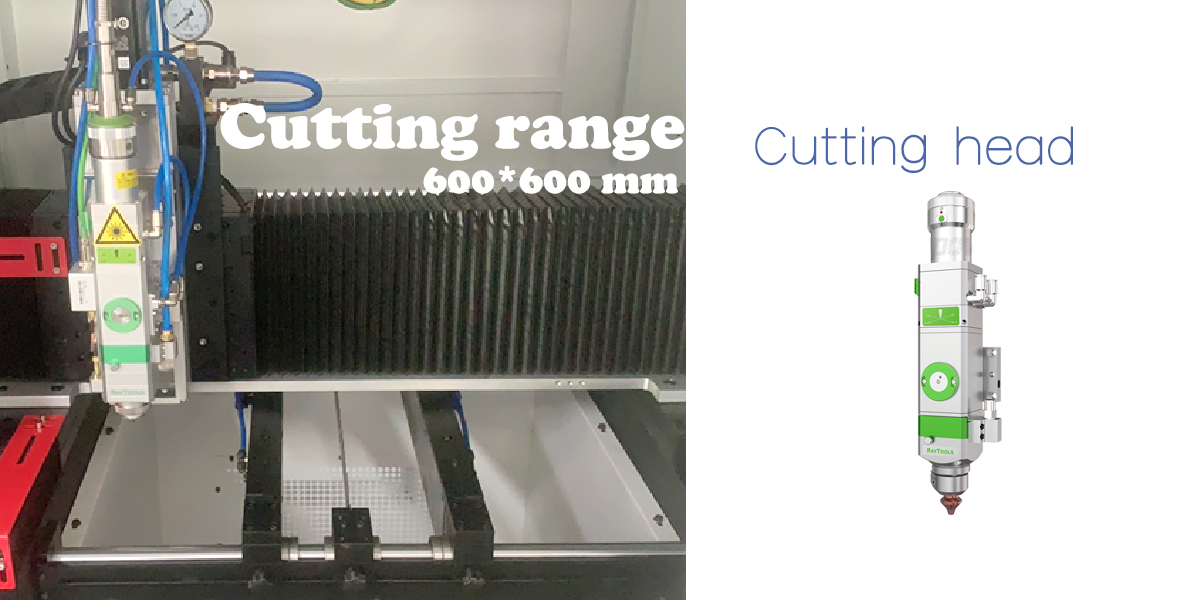

| Cutting range | 600*600mm(Option) | ||
| Max cutting speed | 15 m/min(Up to material) | ||
| Repeat position | 0.02mm | ||
| Minimum line width | 0.1~1.16mm(Up to material) |
||
| Power supply | 220V/50-60Hz | 220V/50-60Hz | 380V/50-60Hz |
| Power consumption | 4KW | 5.5KW | 8.5KW |
| Cooling way | Water cooling |
||
| Weight | 680KG | 730KG | 770KG |
| Chiller‘s water type | Deionized water |
||
| Protective gas | Nitrogen gas | Nitrogen gas | Nitrogen gas |
| Protective gas pressure | 15~18 MPa | ||
Advantages:
1.X,Y,axis install:Magnetic suspension linear motorer;
2.High accuracy to 0.02mm;
3.Process any graphics.
Applicable materials and industries:
Glasses,clocks and watches
Electronic cigarette
Cutting for Stainless steel,aluminum,titanium,carbon steel.brass.
Kitchen industry,household appliances industry,advertising industry,stainless steel door and doors and windows industry;
Handicraft industry,mold industry,the furniture industry.
Kitchen industry,household appliances industry,advertising industry,stainless steel door and doors and windows industry;
Handicraft industry,mold industry,the furniture industry.
Samples display:
