Brief introduction:

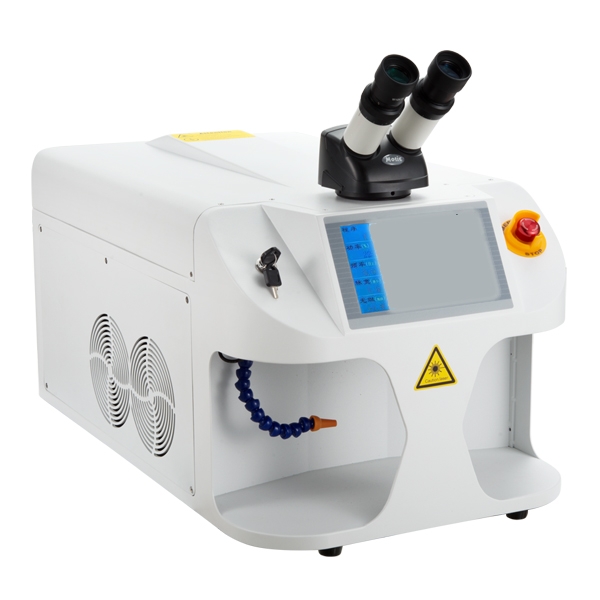

Small size,table type Jewelry laser spot welding machine is mainly used for filling holes and spot welding of gold and silver jewelry.Laser spot welding is one of the important aspects of the application of laser material processing technology.
The spot welding process is thermally conductive, that is the surface of the workpiece is heated by laser radiation,and the surface heat diffusion into the interior through heat conduction,controlling the width, energy, peak power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool.Because of its unique advantages,it has been successfully used in the processing of gold and silver jewelry and the welding of micro and small parts.
Machine configuration:
Technical specifications:
Small size,table type Jewelry laser spot welding machine is mainly used for filling holes and spot welding of gold and silver jewelry.Laser spot welding is one of the important aspects of the application of laser material processing technology.
The spot welding process is thermally conductive, that is the surface of the workpiece is heated by laser radiation,and the surface heat diffusion into the interior through heat conduction,controlling the width, energy, peak power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool.Because of its unique advantages,it has been successfully used in the processing of gold and silver jewelry and the welding of micro and small parts.
Machine configuration:
| Laser source | YAG laser |
| Aim at positioning | Microscope |
| CCD Vision | LCD |
| Laser head | welding head with lens |
| Cooling system | Air cooling system |
Technical specifications:
| Model | HW-SS-150W |
| Max. output power | 150W |
| Max energy pulse | 75J |
| Laser wavelength | 1064nm |
| Pump source | Single lamp |
| Pulse width | 0.1-20ms |
| Pulse frequency | 50Hz |
| Aiming and positioning | Microscope and camera system |
| Power Supply | 220VAC ± 5% / 50HZ |
| Power Consumption | 2KW |
| Cooling system | Air cooling |
| Weight | 45kg |
| Size | 660*385*440mm |
| Laser Type | Pulse |
Advantages:
1.Energy,pulse width,frequency,spot size can be adjusted in a larger range to achieve a variety of welding effects.
2.Install British imported ceramic concentrating cavity,concentrating cavity life (8-10 years), xenon lamp life more than 5 million times.
3.Adopt the advanced automatic shading system to eliminate the irritation to the eyes during working hours.
4.Small solder joint width, small heat-affected area, small product deformation, high weld strength, no porosity.
Applicable to meterial and fields:Perforation and spot welding of sand hole for gold and silver jewelries, gold and silver jewelries processing, and welding of small-sized parts.
Samples display:
Samples display:
