6000W Handheld laser welding machine for 10~12mm carbon steel

Time:2025-06-12 Views:20
Test report: 6000W Handheld laser welding machine on 10~12mm carbon steel
1. Introduction
This report evaluates the performance of a 6kW handheld laser welding machine when welding 10mm carbon steel. The test assesses penetration depth, weld quality, speed, and operational efficiency compared to traditional welding methods. Mr Leo responsible for summary testing result and report in Howweld factory.

Objective
Verify the feasibility of single-pass welding on 10mm carbon steel.

Analyze weld seam quality (porosity, cracks, penetration).

Compare welding speed and distortion levels with MIG/TIG welding.

2. Test Setup & Parameters

Equipment & Materials
Laser Welder: 6kW handheld fiber laser welder (MAX/RAYCUS source)

Material: 10mm low-carbon steel (Q235 equivalent)

Shielding Gas: Argon (8-15 L/min)

Welding Gun: Single motor welding gun

3. Test Parameters
Parameter                  Value
Laser Power                  6000W-100%
Welding Speed          1.2 m/min
Focal Length                   200 mm
Beam Diameter           0.3 mm
Shielding Gas                   Nitrogen

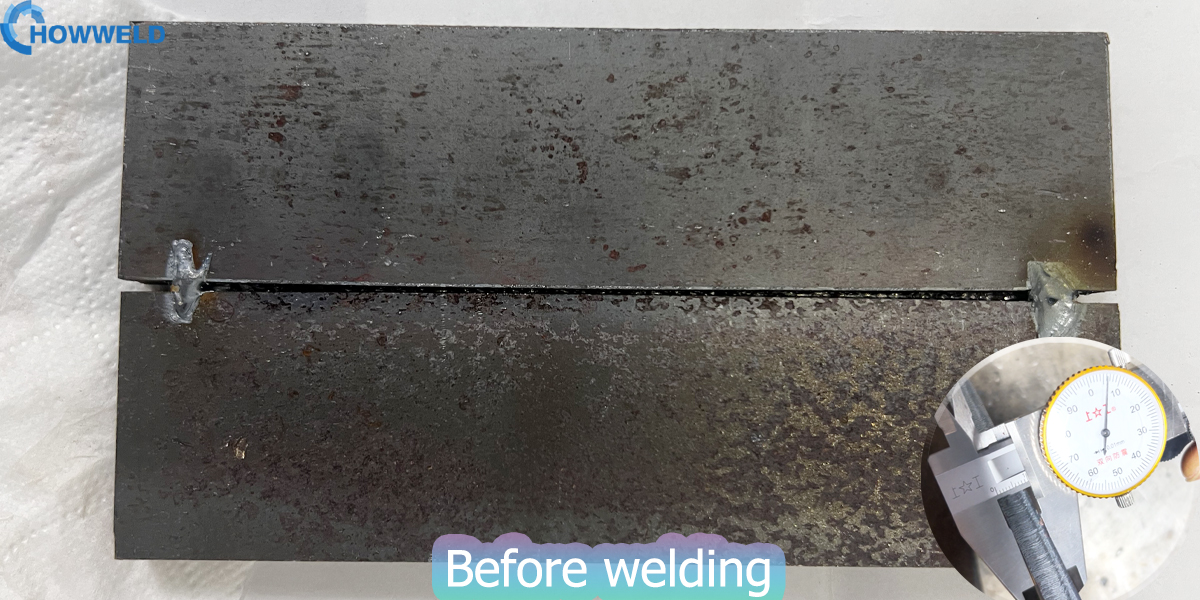

Joint Type                   Butt weld (1~3mm gap)

4. Welding Process
Single-pass welding with 6kW power at 8mm/s speed.

Filling 4 steel wires in 1.6mm diameter.

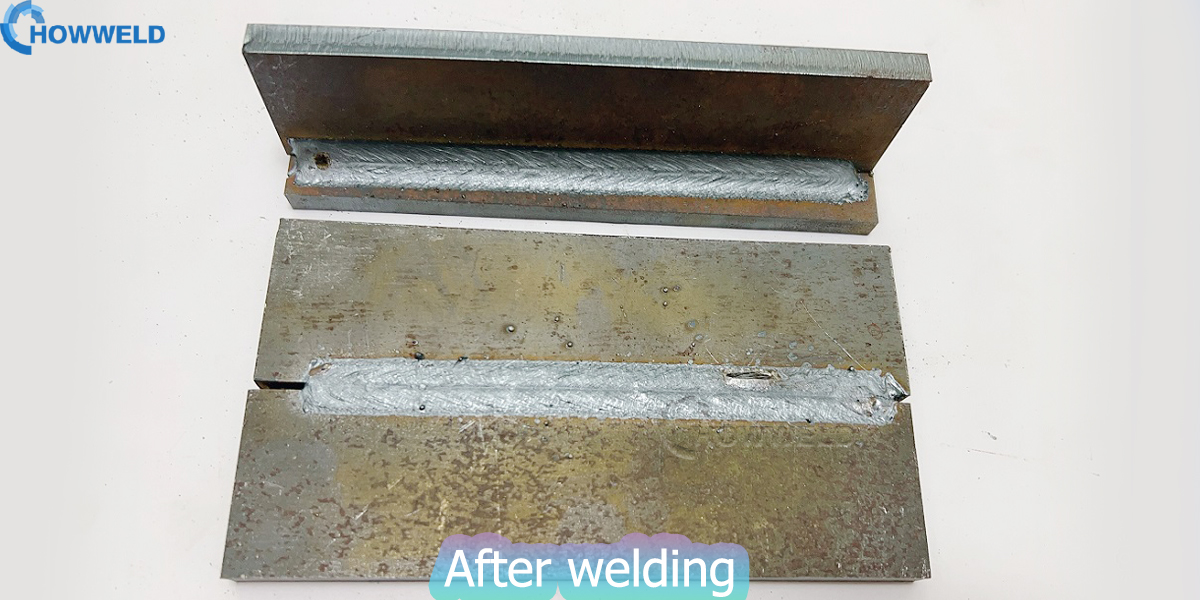

5. Test results
Weld Penetration & Bead Appearance
Full penetration achieved in a single pass (10mm depth).

Smooth, uniform weld bead with lots of splashing.

No visible cracks or porosity.

Distortion 1.0~2.0 mm

6. Welding speed&Efficiency
Laser welding speed: 0.7 m/min (single pass).

MIG welding (10mm steel): Requires 3-4 passes at 0.9 m/min.

Time savings: ~60% faster than conventional methods.

7. Conclusion
The 6kW handheld laser welding system demonstrates superior performance for 10mm carbon steel welding:

Full penetration in a single pass.

Excellent mechanical properties (strength, hardness).

Minimal distortion & post-weld cleanup.

70% faster than MIG/TIG welding.

Recommendations
Use Argon shielding gas for best results.

Ensure proper joint alignment for consistent penetration.

Suitable for automotive, construction, and heavy machinery applications.
