Butt hinge 77 spots 53 joints automatic welding
Time:2021-04-01
Views:1082
Which kind of product should choose automatic welding system?
Automatic welding system Brief introduction:
Fiber laser welding machine with small table or large X,Y,Z,A,B axis moving,can weld 180°angle of products.It is a kind of laser welding equipment that couples a high-energy laser beam into an optical fiber, transmits the laser through the optical fiber, and focuses on the workpiece to perform welding. For parts that are difficult to be welded, the simple universal instrument can be used to dock large molds and difficult-to-access precision parts, and implement flexible transmission non-contact welding, which has greater flexibility. The laser beam can split the light in time and energy, and can process multiple beams at the same time, which provides conditions for more precise welding.
2.Each product dimension error less than 0.2mm.
3.Fixture must be fixed.
Such as below this "butt hinge" product
Which kind of product should choose automatic welding system?
1.Mass production need to weld per day.2.Each product dimension error less than 0.2mm.
3.Fixture must be fixed.

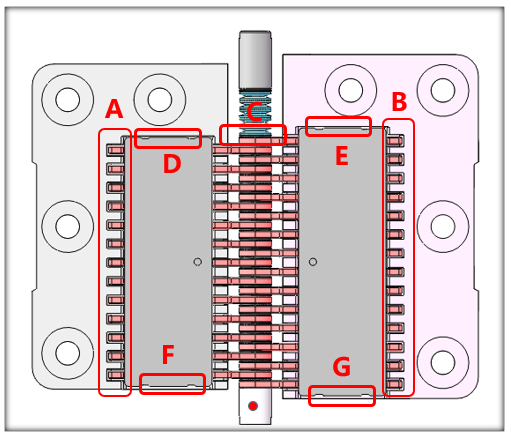

Such as below this "butt hinge" product
![](/web/userfiles/微信图片_20210401001242.png)
This product need to weld 77 joints on per one.

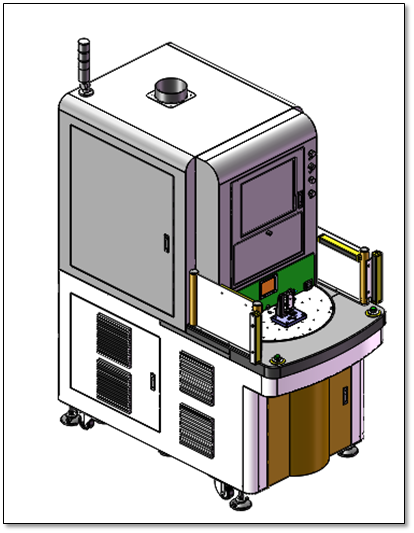

We design double welding station,with this kind of rotate work station,below machine for reference:
We design double welding station,with this kind of rotate work station,below machine for reference:
![](/web/userfiles/微信图片_20210401000941.png)

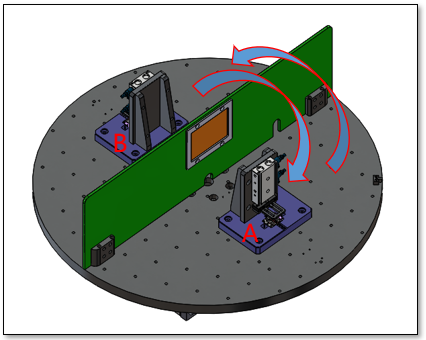

With this machine,welding staff can feed base materials on the front of table meanwhile machine welding processing.
![](/web/userfiles/微信图片_20210401001015.png)
