What is Laser cleaning machine?
Laser cleaning system distributes thousands of focused laser pulses per second onto the target surface.
These powerful beam pulses are linearly deflected & placed adjacent to each other.
Most laser energy is absorbed by the target surface, creating micro-bursts of plasma that decompose the target layer/coating/contaminant through sublimation.
Thermal energy is rapidly dispersed as laser vaporized residues are removed from the substrate. Process speed relates to the laser energy absorption properties of the target material & laser power as measured in watts.
![laser cleaning machine 500w](/web/userfiles/product/500w%E6%9C%BA%E5%99%A8%E5%B1%95%E7%A4%BA.jpg)

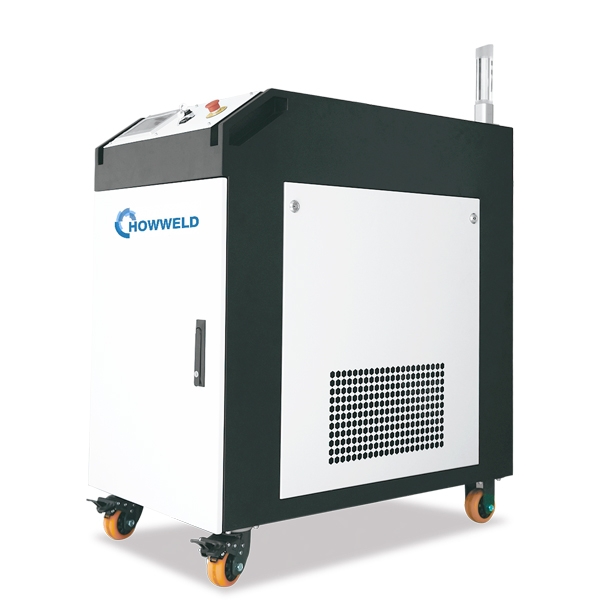

500W Laser Cleaning Machine Technical Specification
Cleaning head:
![pulse laser cleaning machine](/web/userfiles/product/cleaning/1_8kgs.jpg)
Main parts display:
![rust removal laser cleaner](/web/userfiles/product/500w%E6%B8%85%E6%B4%97%E5%86%85%E9%83%A8%E5%9B%BE.jpg)
![rust removal fiber laser](/web/userfiles/Cleaning2023/RUST.jpg)
![oxide layer removal fiber laser](/web/userfiles/Cleaning2023/%E6%A0%B7%E5%93%8101.jpg)
Max average power(W) | 500 |
Output central wavelength(nm) | 1064±5 |
Beam quality | 62.5 |
Power adjustment range(%) | 10~100 |
Output power instability(%) | ≤5 |
Pulse repetition rate(KHz) | 20~50 |
Pulse length(ns) | 130~160 |
Max pulse energy(mj) | 25 |
Fiber length(m) | 10 |
Cooling way | Water |
Laser type | Fiber laser source |
![laser cleaning head howweld](/web/userfiles/Cleaning2023/HEAD.jpg)
![pulse laser cleaning machine](/web/userfiles/product/cleaning/1_8kgs.jpg)
Main parts display:
![rust removal laser cleaner](/web/userfiles/product/500w%E6%B8%85%E6%B4%97%E5%86%85%E9%83%A8%E5%9B%BE.jpg)
Brief introduction:
Cleaning head weight: 2.8kg
Scanning width: 80mm
Cleaning speed: 60m²/h
Easy to install, operate, easy to achieving automation.Plug in power, turn on and start cleaning-without chemicals,media,dust,water.Cleaning for:
1. Mould surface
2. Oil stain,Painting
3. Oxide layer,oxide coating
Cleaning without detergent,without media,without dust,without water.
Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.
Samples display:
Samples display:
![laser cleaning machine for sale](/web/userfiles/product/cleaning/SAMPLES02.jpg)
![rust removal fiber laser](/web/userfiles/Cleaning2023/RUST.jpg)
![oxide layer removal fiber laser](/web/userfiles/Cleaning2023/%E6%A0%B7%E5%93%8101.jpg)
![pulse laser cleaning for painting](/web/userfiles/Cleaning2023/painting22.jpg)
![ceramic roller surface cleaning fiber howweld](/web/userfiles/Cleaning2023/Anilox-roller.jpg)
![pulse laser clenaing for aluminum sheet](/web/userfiles/Cleaning2023/ALUMINUM.jpg)
![laser cleaning for coating howweld](/web/userfiles/Cleaning2023/COATING02.jpg)
![laser fiber welding](/web/userfiles/Cleaning2023/oxide-layer.jpg)
