Laser cleaning machine

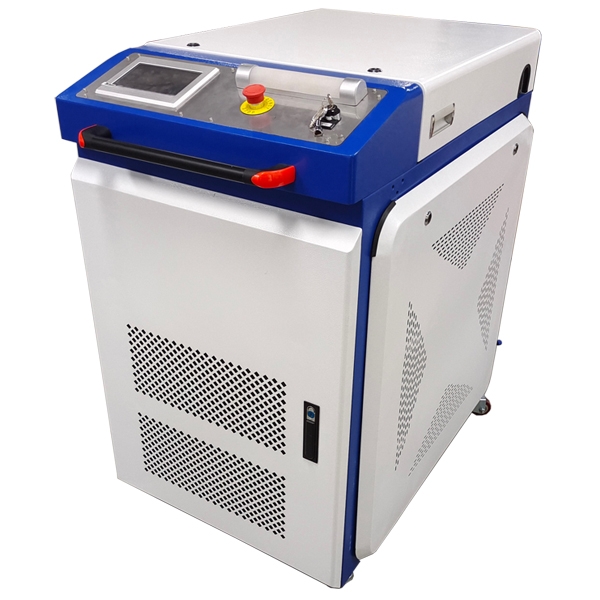

500W Laser cleaning equipment

Environment protection

No damage to workpiece

Scanning head weight: 2.8kg
    What is Laser cleaning machine?
    Laser cleaning system distributes thousands of focused laser pulses per second onto the target surface.
    These powerful beam pulses are linearly deflected & placed adjacent to each other.

    Most laser energy is absorbed by the target surface, creating micro-bursts of plasma that decompose the target layer/coating/contaminant through sublimation.
    Thermal energy is rapidly dispersed as laser vaporized residues are removed from the substrate. Process speed relates to the laser energy absorption properties of the target material & laser power as measured in watts.

    500W Laser Cleaning Machine Technical Specification
    Max average power(W) 500
    Output central wavelength(nm) 1064±5
    Beam quality 62.5
    Power adjustment range(%) 10~100
    Output power instability(%) ≤5
    Pulse repetition rate(KHz) 20~50
    Pulse length(ns) 130~160
    Max pulse energy(mj) 25
    Fiber length(m) 10
    Cooling way Water
    Laser type Fiber laser source

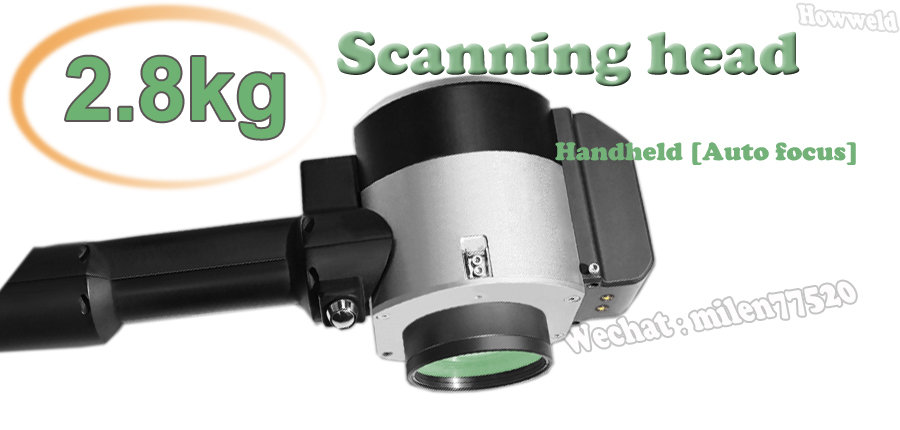

    Cleaning head:

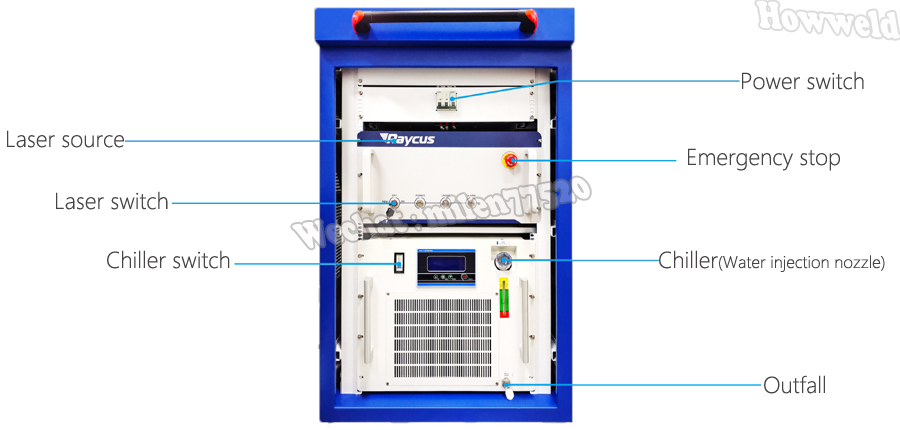

    Main parts display:


    Brief introduction:
    Cleaning head weight: 2.8kg
    Scanning           width: 80mm
    Cleaning           speed:  60m²/h

    Applicable Cleaning for:
    1.Mould surface
    2.Oil stain,Painting
    3.Oxide layer,oxide coating

    Easy to install, operate, easy to achieving automation.Plug in power, turn on and start cleaning-without chemicals,media,dust,water.
    Cleaning without detergent,without media,without dust,without water.
    Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.

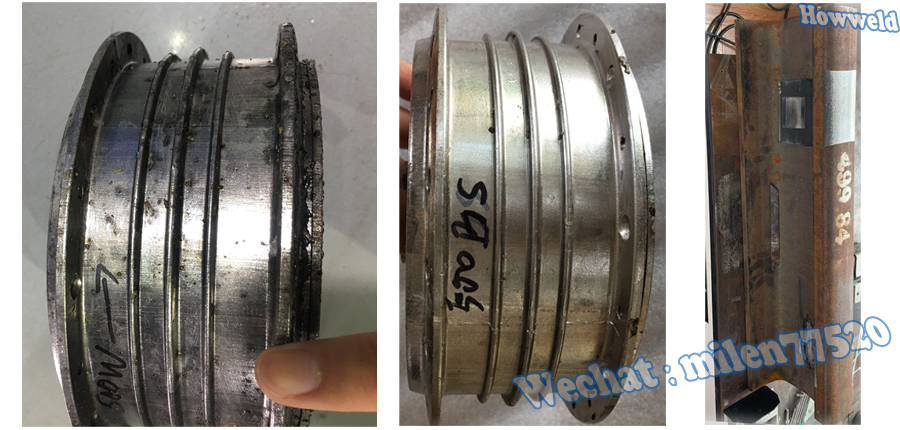

    Samples display:
