Oil painting, painting on metal surface to cleaning by pulse laser cleaning machine
Time:2022-07-25
Views:602

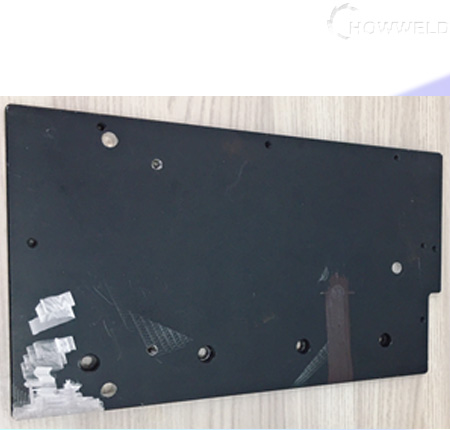

Pulse laser cleaning machine test remove: painting on metal surface![laser cleaning for painting remove](/web/userfiles/cleaning%20solution/painting01.jpg)
![laser cleaning for painting remove](/web/userfiles/cleaning%20solution/painting01.jpg)
Brief introdution:
1. Phosgenation/Photolysis
The laser generated by the laser can be concentrated by the optical system to achieve a high concentration of energy. The focused laser beam can generate a high temperature of several thousand degrees or even tens of thousands of degrees near the focal point, which will instantly vaporize or decompose the attachments on the surface of the object.
2. Light peeling
Through the action of the laser, the attachments on the surface of the object are heated and expanded. When the expansion force of the attachments on the surface of the object is greater than the adsorption force between it and the substrate, the attachments on the surface of the object will be detached from the surface of the object.
Test cleaning:
Test time: 2022.7
Samples from: Taiwan
Cleaning requirements: clean surface
Machine power: 1000W laser power, full 100% power, continuous laser beam;
Laser time: 180 seconds one piece;
Test factory: Howweld

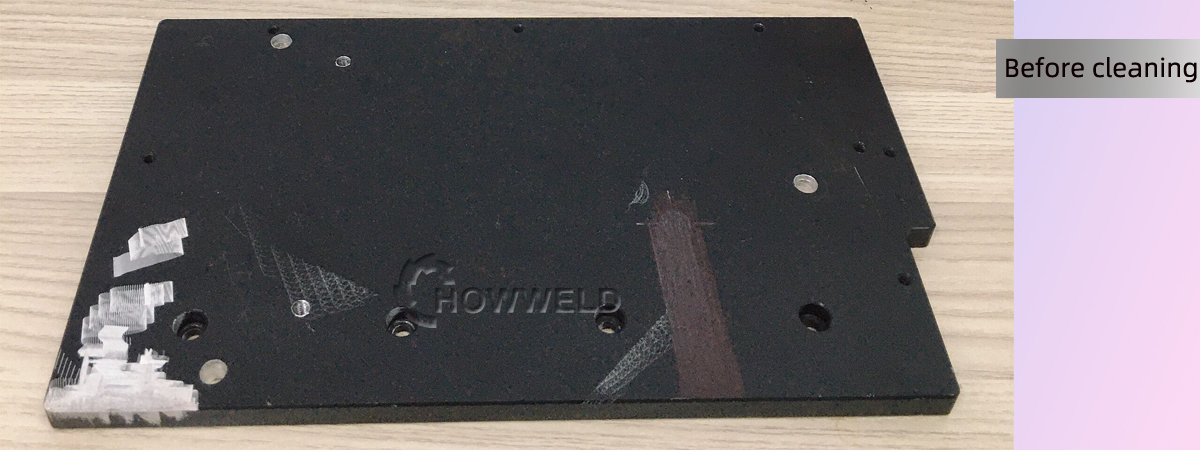

Before cleaning:
![how much pulse laser cleaning machine howweld](/web/userfiles/cleaning%20solution/Before1200.jpg)

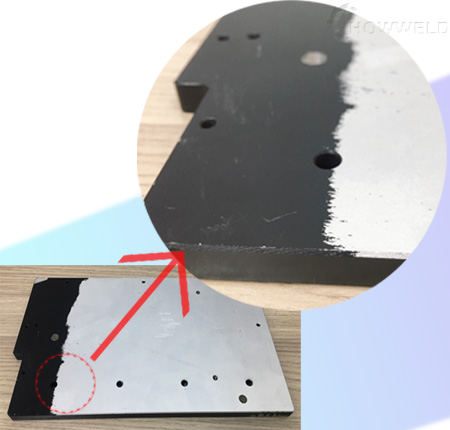

After cleaning:
![pulse laser cleaning equipment price](/web/userfiles/cleaning%20solution/Painting1200.jpg)
![pulse laser cleaning equipment price](/web/userfiles/cleaning%20solution/Painting1200.jpg)
![100w laser cleaning machine supplier](/web/userfiles/cleaning%20solution/painting02.jpg)
Parameters of laser:
Laser power: 85% of 200W power
Scanning width: 5mm
Scanning length: 30mm
Scanning speed: 6000
Laser frequency: 3000Hz
Laser : pulse
Scanning mode: straight line
