Laser cleaning technology:
1. Laser cleaning technology refers to the use of high-energy laser beams to irradiate the surface of the product‘ surface/workpiece to instantly evaporate or peel off the dirt,rust or coating on the surface,so as to cleaning process.
2. It‘s application objects involve the protection of machinery industry,microelectronics industry and artwork.
3. The principle of laser cleaning is mainly based on the fact that the contaminants on the surface of the object absorb the laser energy,or vaporize and volatilize,or instantly expand by heat to overcome the adsorption force of the particles on the surface,and make it detach from the surface of the object.
Brief introduction:

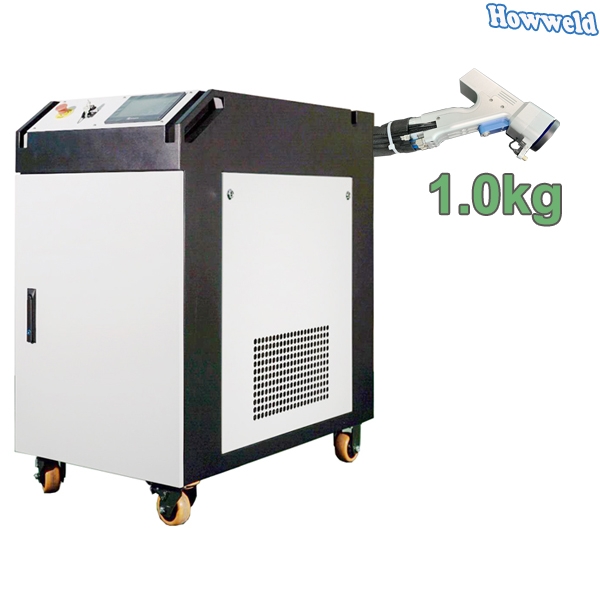

Cleaning head weight: 1 kg
Scanning width: 120mm
Machine weight: 160kg
Cleaning speed: 60m²/h
Automatic laser welding machine configuration:
Brief introduction:
Cleaning head weight: 1 kg
Scanning width: 120mm
Machine weight: 160kg
Cleaning speed: 60m²/h
Laser cleaning machine is the latest high-tech product in recent years.
Plug in power supply,turn on then can start to cleaning.
Easy to install,operate,easy to achieving automation.
Without chemicals,media,dust,water.
Cleaning with no detergent,no media,no dust,no water.
Auto focus,can clean curved surface,gentle cleaning surface.
Cleaning resin,oil stain,rust,coating materials,paints on workpiece surface.
Automatic laser welding machine configuration:
| Main parts | Specification |
| Fiber laser source | Fiber laser source Max or IPG |
| Cleaning head | Made in China,SCQX |
| Water chiller | Made in China,S&A brand |
| Control system | Made in China,DPQX |
Technical specification:
| Model | HW-LC-1000W |
| Laser power | 1000W |
| Cooling way | Water cooling |
| Laser wavelength | 1064nm |
| Power supply | AC220V/50Hz |
| Power consumption | 2500W |
| Demension | L*W*H 1230*620*960mm |
| Weight | 150kgs |
| Working Temperature | 5~40℃ |
| Focal depth | 10mm |
| Laser source type | Fiber laser source |
| Fiber optic length | 5 meters |
Features:
| A: | First high power fiber laser cleaning machine in China. |
| B: | Non-contact cleaning, no damage to workpiece. |
| C: | Easy to operate,Either portable or equipped with robot for automatic cleaning. |
| D: | Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface. |
| E: | Stable laser cleaning system, free maintenance. |
Applicable materials and industries:
Cleaning for
1.Metal surface rust
2.Painting
3.Oil stain,contaminant
4.Oxide layer,oxide coating
5.Welding surface pre-treatment
Automobile tire mould,Rubber mold,Anilox roller,Ceramic anilox roller,metal welding spot;
Stone surface,Cultural relics protection,Marble surface.Railway track.
