The control system of the 6000W handheld laser cleaning machine utilizes the high energy density of the laser beam to instantly heat and expand substances such as dirt or oxide layers, separating them from the substrate and achieving the purpose of cleaning. This cleaning method has significant advantages compared to traditional chemical cleaning, mechanical cleaning, and other methods. Howweld company can install maximum power fiber laser cleaning machine with practical testing and sold one set to remove rust in Mechanical Parts.
Non contact cleaning
Continuous laser cleaning is a non-contact cleaning method that does not require the use of physical media such as brushes or abrasives, so it will not cause scratches or damage to the surface of the workpiece, ensuring the integrity and accuracy of the workpiece.
Efficient cleaning
The continuous laser cleaning machine uses a high-power laser, which can quickly remove dirt and coatings on the surface of the workpiece, improving cleaning efficiency. At the same time, it can also clean complex shaped workpieces for better cleaning effect.
Technical Parameter

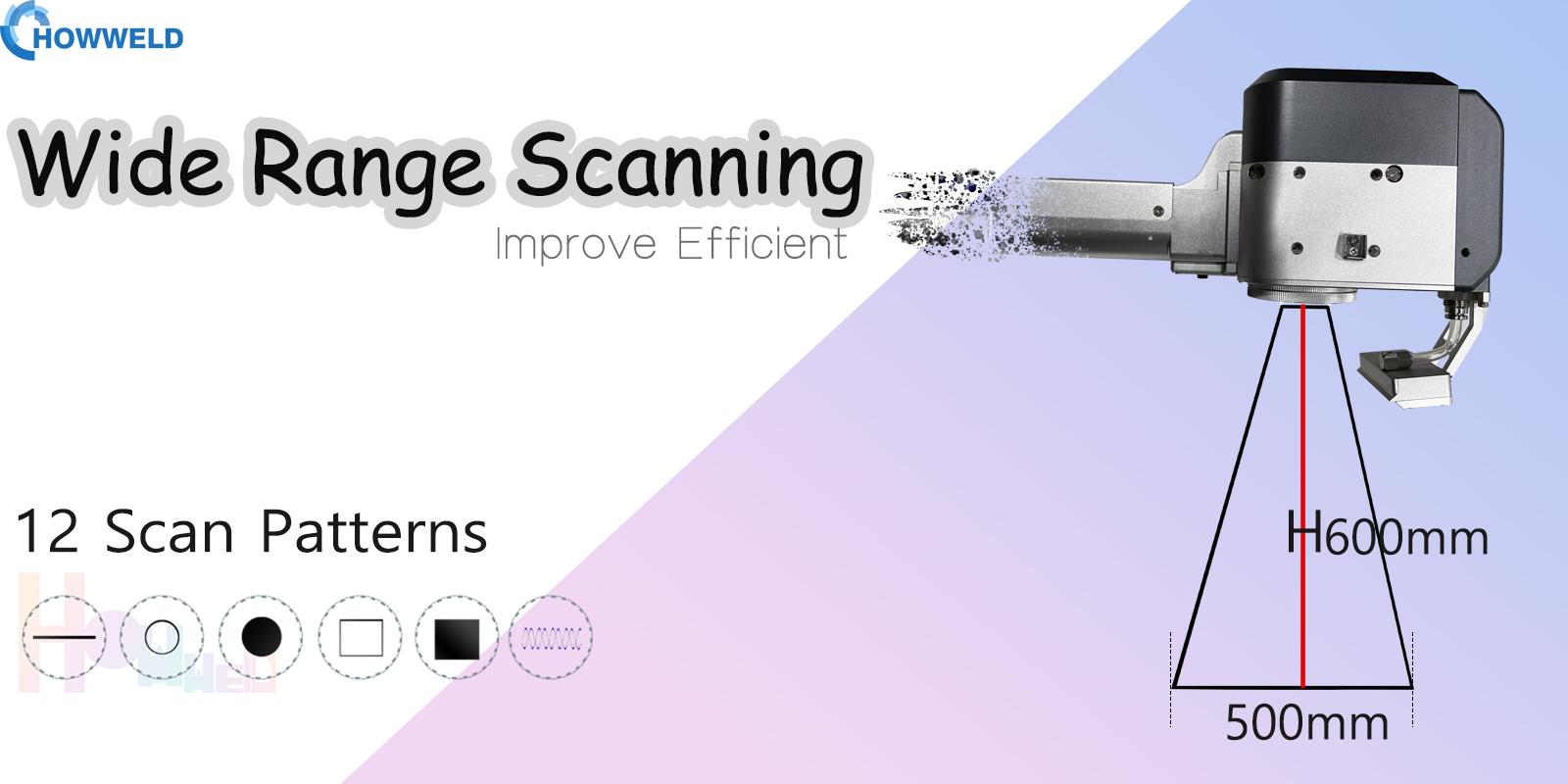

Scanning data

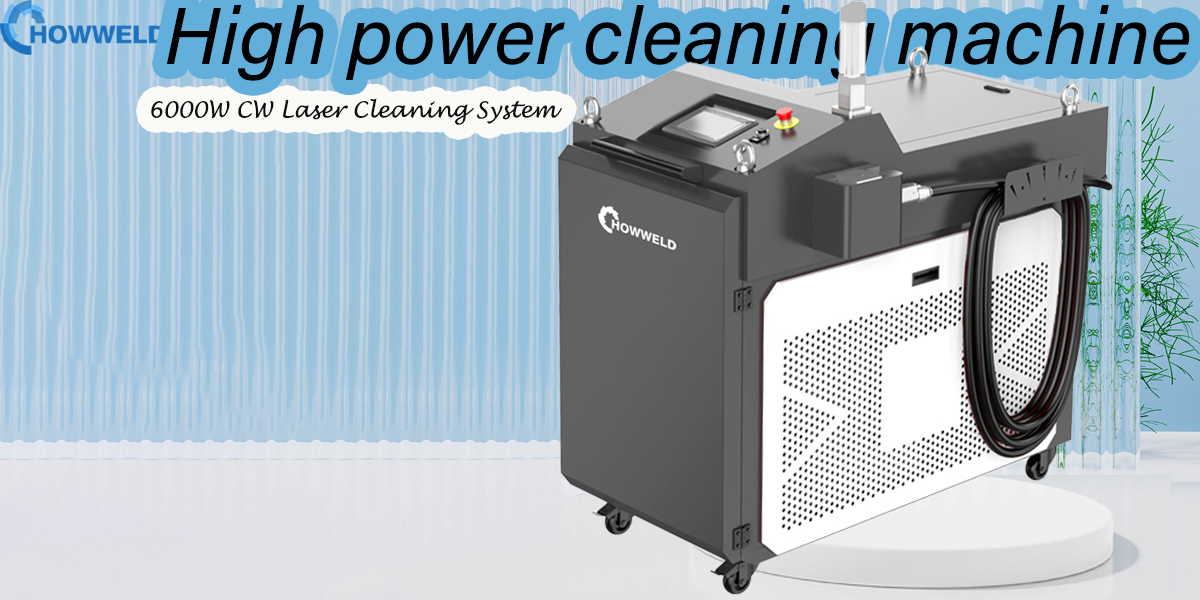

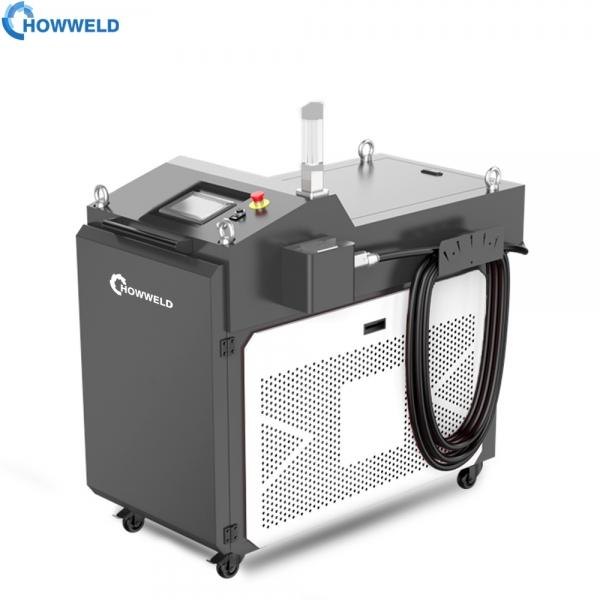

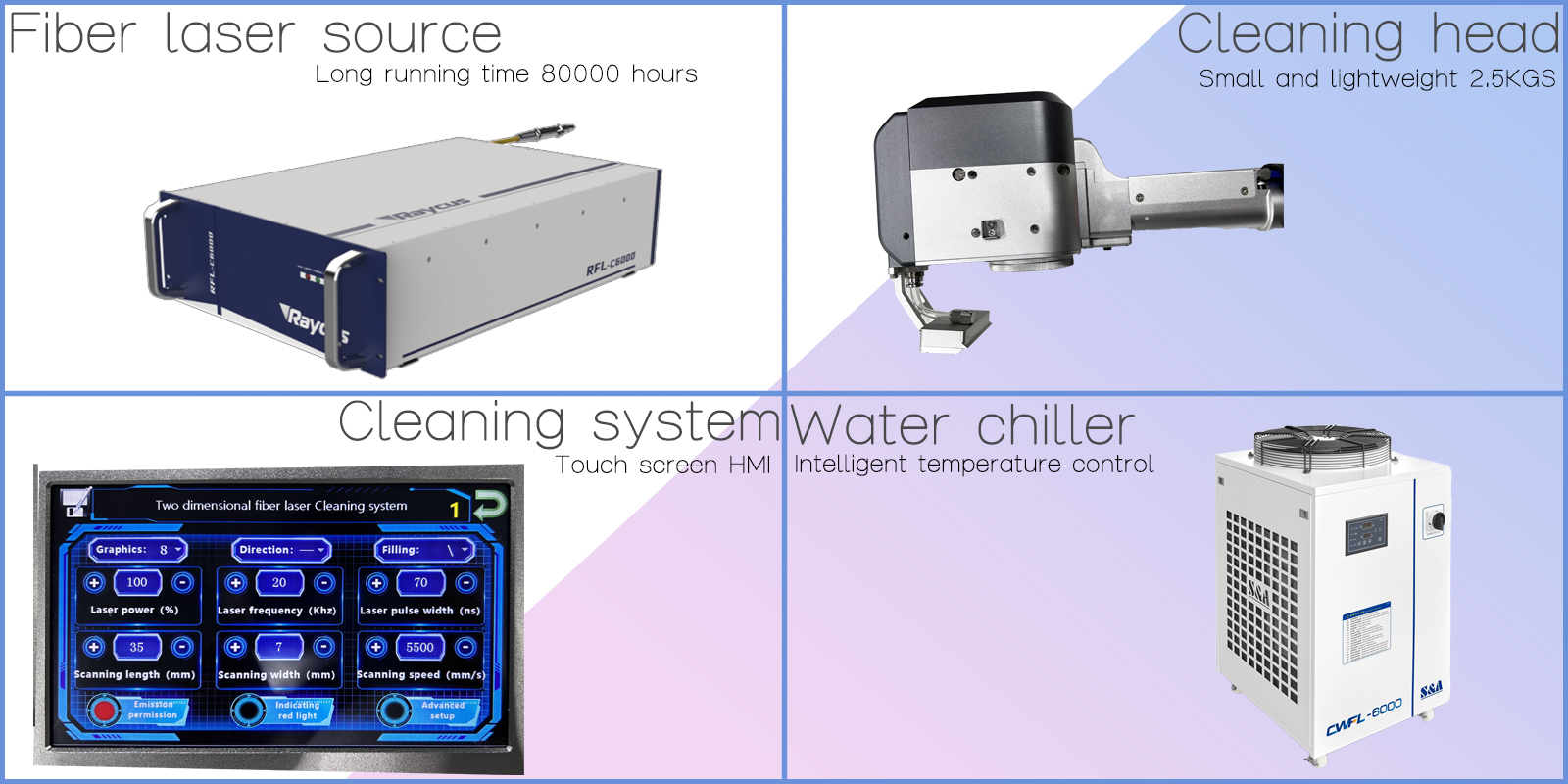

6000W Handheld laser cleaning machine main configuration
| Fiber laser source | CW Type laser |
| Scanning head | Two dimensional way |
| Water chiller | S&A Brand |
| Control software | Customized |
| Safety system | Closed circuit system |
Technical Parameter
| Max average power(W) | 6000 |
| Output central wavelength(nm) | 1080 |
| Beam quality | 62.5 |
| Power adjustment range(%) | 10~100 |
| Output power instability(%) | ≤5 |
| Pulse | Without |
| Pulse length(ns) | Without |
| Max pulse energy(mj) | Without |
| Fiber length(m) | 20 |
| Cooling way | Water |
| Laser type | Fiber laser source |
Scanning data
Application
Samples display
