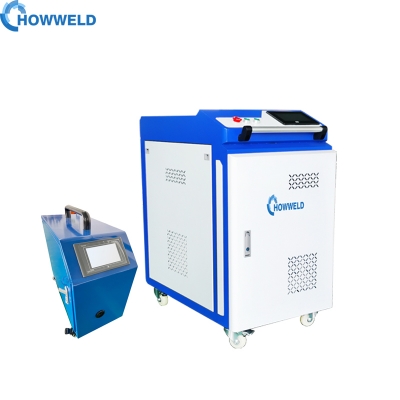

3000W Handheld Laser Welding Machine

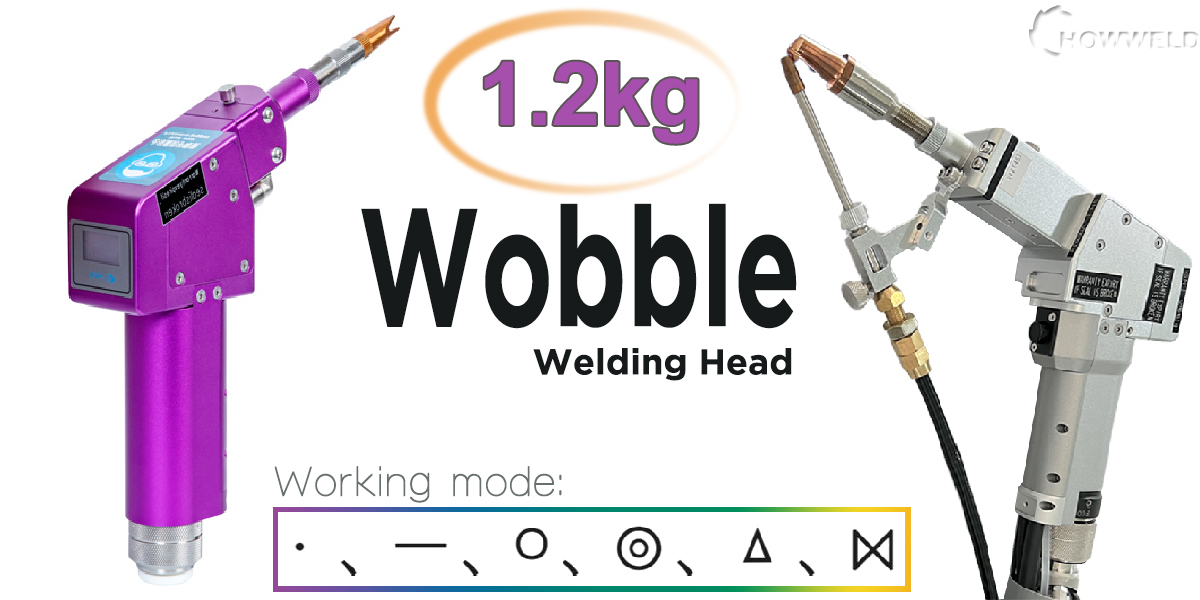

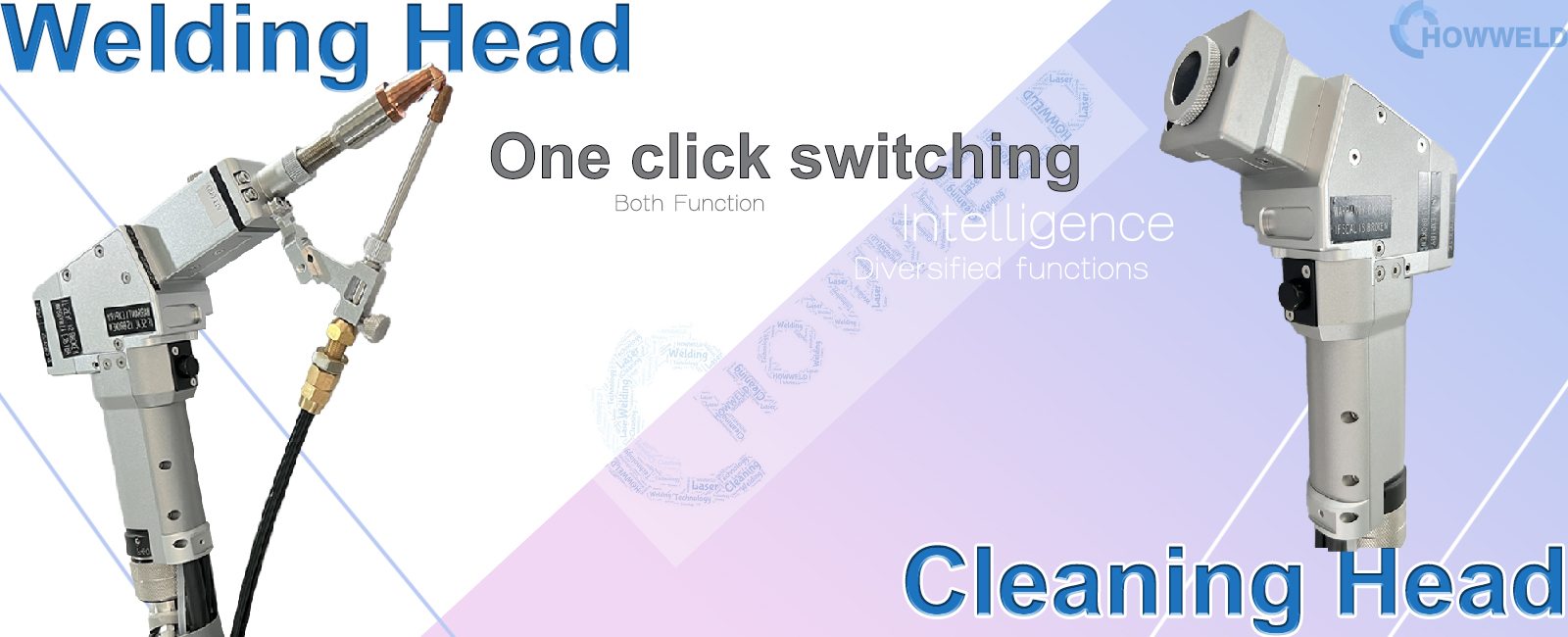

Wobble welding head with six welding mode; Machine portable for carry, easy operation.
Welding speed faster than MIG TIG welding, more than 5 times.
No need having experience worker.

360 degrees operation way.
1500w power mini welding machine

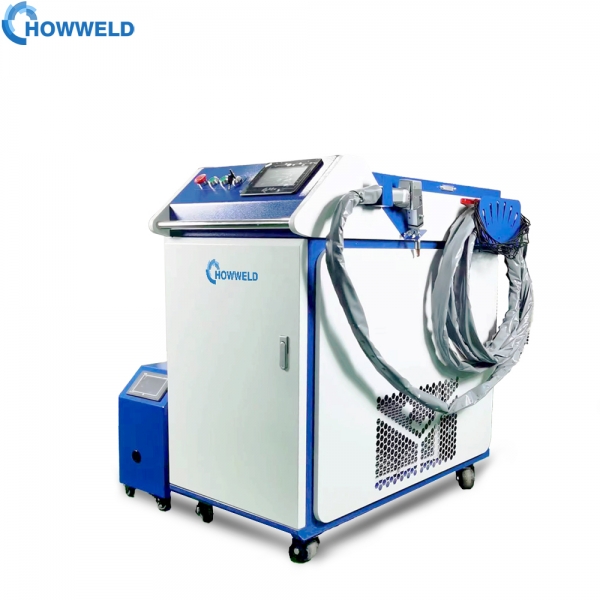

    Handheld welding machine - Manual laser welding equipment
                                                         ---Brings welding efficiency for metal products
                                                                ---Expecially for stainless steel,iron,aluminum,galvanized sheet
    Brief introduction
    Hand-held laser welding machine,install with fiber laser source,transfer laser by optical fiber line.It uses latest generation laser generator.Install with wobble head which is developed by ourselves. The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam, fast welding speed and no consumables.



    Welding stainless steel sheet, iron sheet, galvanized sheet and titanium other metal materials.Perfectly replace the traditional argon arc welding, electric welding and other processes.

    Application to widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.

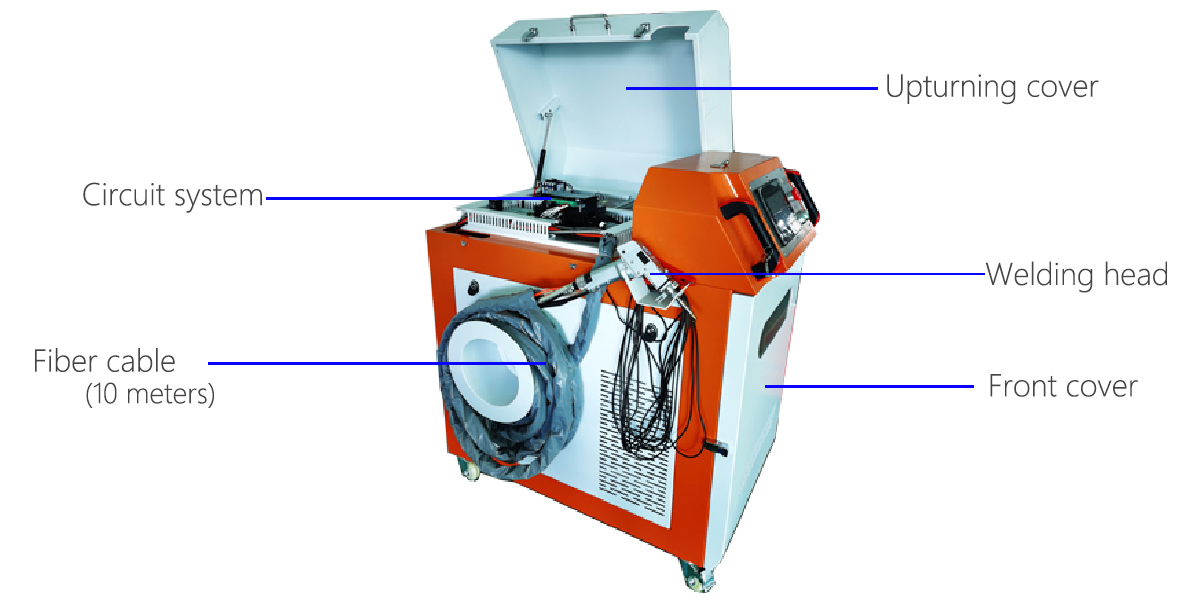

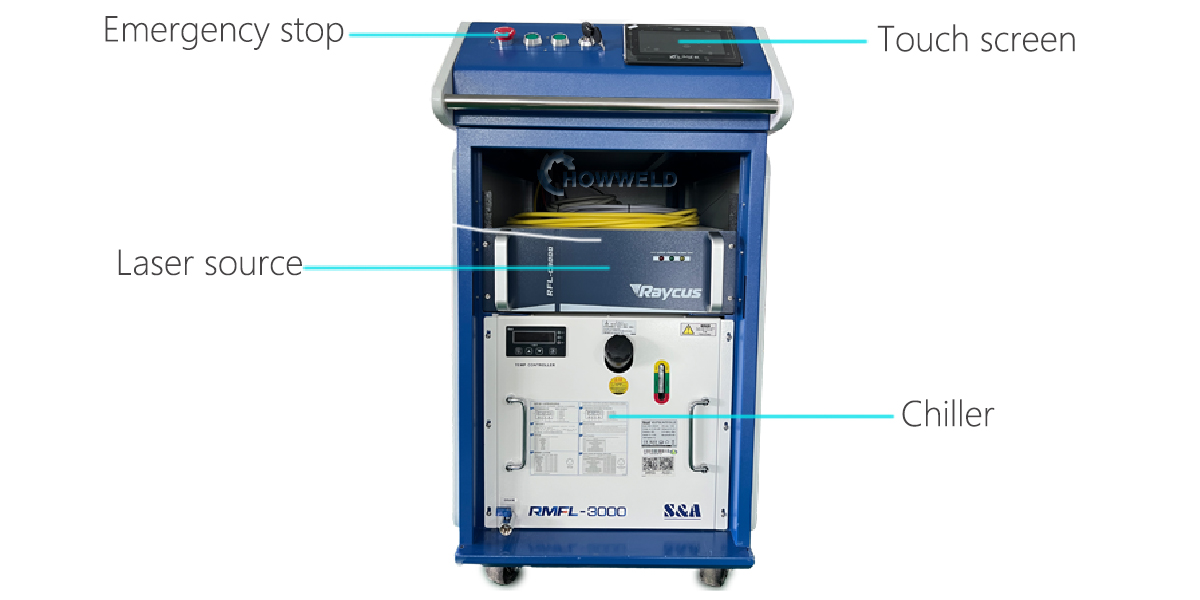

    Handheld welding machine configuration
    Laser source Fiber laser source,Max JPT Raycus IPG

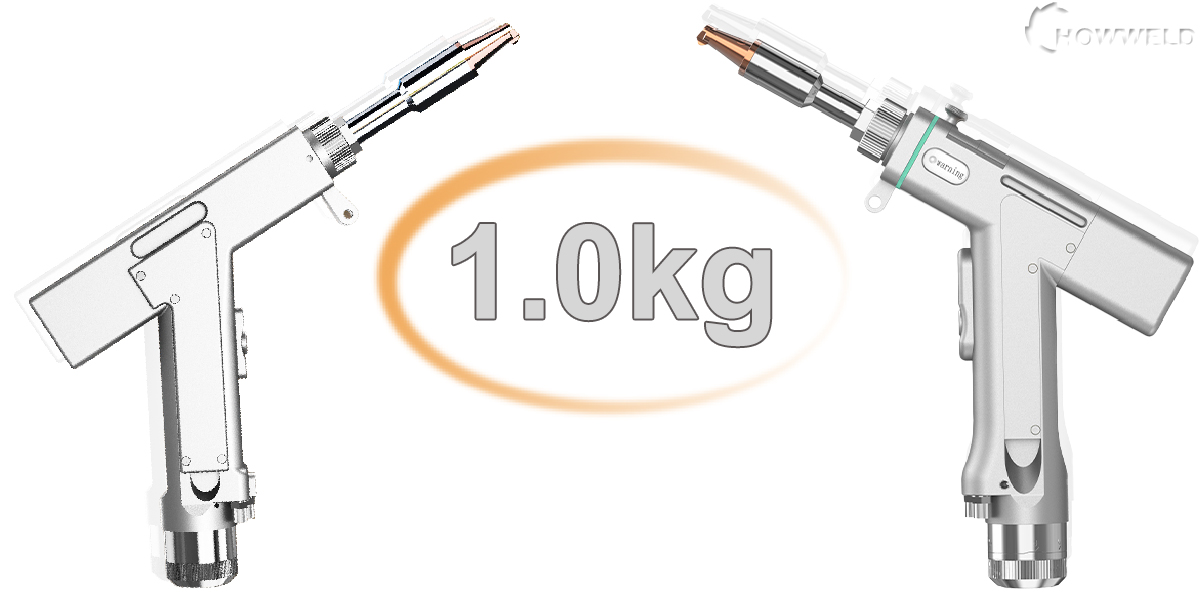

    Handheld gun/Laser head Made in China/QL brand
    Cooling water chiller S&A
    Welding software Matching with laser head
    Safety system Closed circuit system



    Technical specification
    Model/Power 1000W 1500W 2000W
    Max energy of single pulse 100J 110J 120J
    Laser type CW Contunuous laser
    Laser wavelength 1064nm
    Laser frequency 1000Hz
    Laser spot diameter 0.4~2mm
    Welding penetration 0.1~3mm
    Power adjust range 5%~100%
    Pulse width 1ms
    Power supply 220V/50-60Hz 220V/50-60Hz 380V/50-60Hz
    Power consumption 1.7KW 2.2KW 3.6KW
    Cooling way Water cooling
    Weight 230KG 260KG 285KG
    Chiller‘s water type Deionized water
    Protective gas Nitrogen gas Nitrogen gas Nitrogen gas
    Protective gas pressure 12~14 MPa

    Which power machine should choose

    Thickness/Materials Stainless steel Carbon steel Aluminium
    0.4~2.9mm thickness 1.5 KW 1.5 KW 2 KW
    3.0~5.0mm thickness 2 KW 2 KW 3 KW






    Handheld Laser machine Advantages
    1. Portable,easy operation.No need having experience worker.
    2. High accuracy , the welding spot diameter can be 0.3mm-2mm ;
    3. Weld penetration can be 2mm , more stable than traditional YAG laser welder;
    4. Handheld welding,it can turn around 360 degrees.


    Applicable materials and industries
    Widely used in the kitchen industry, household appliances industry, advertising industry, stainless steel door and doors and windows industry, handicraft industry, mold industry, home supplies industry, the furniture industry, the auto parts industry, etc.

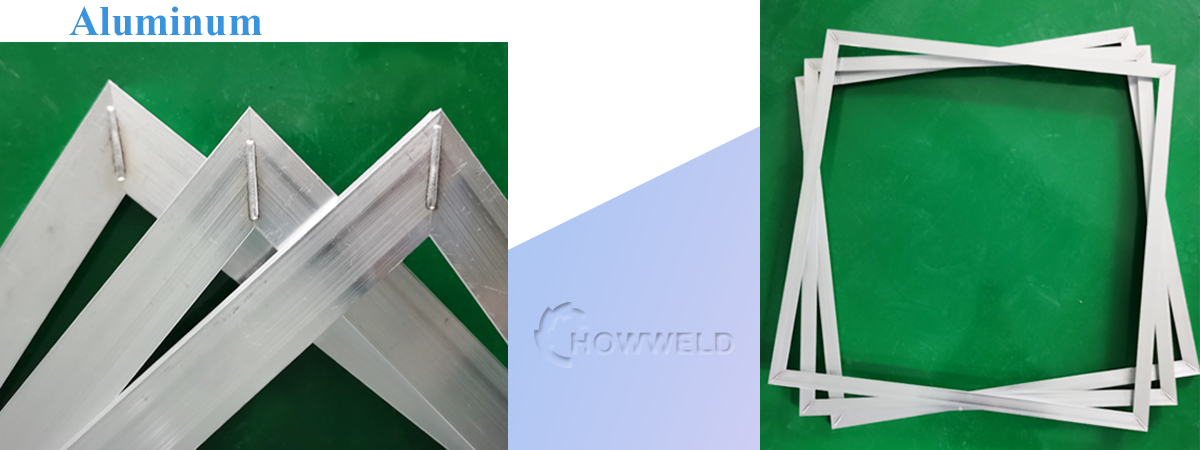

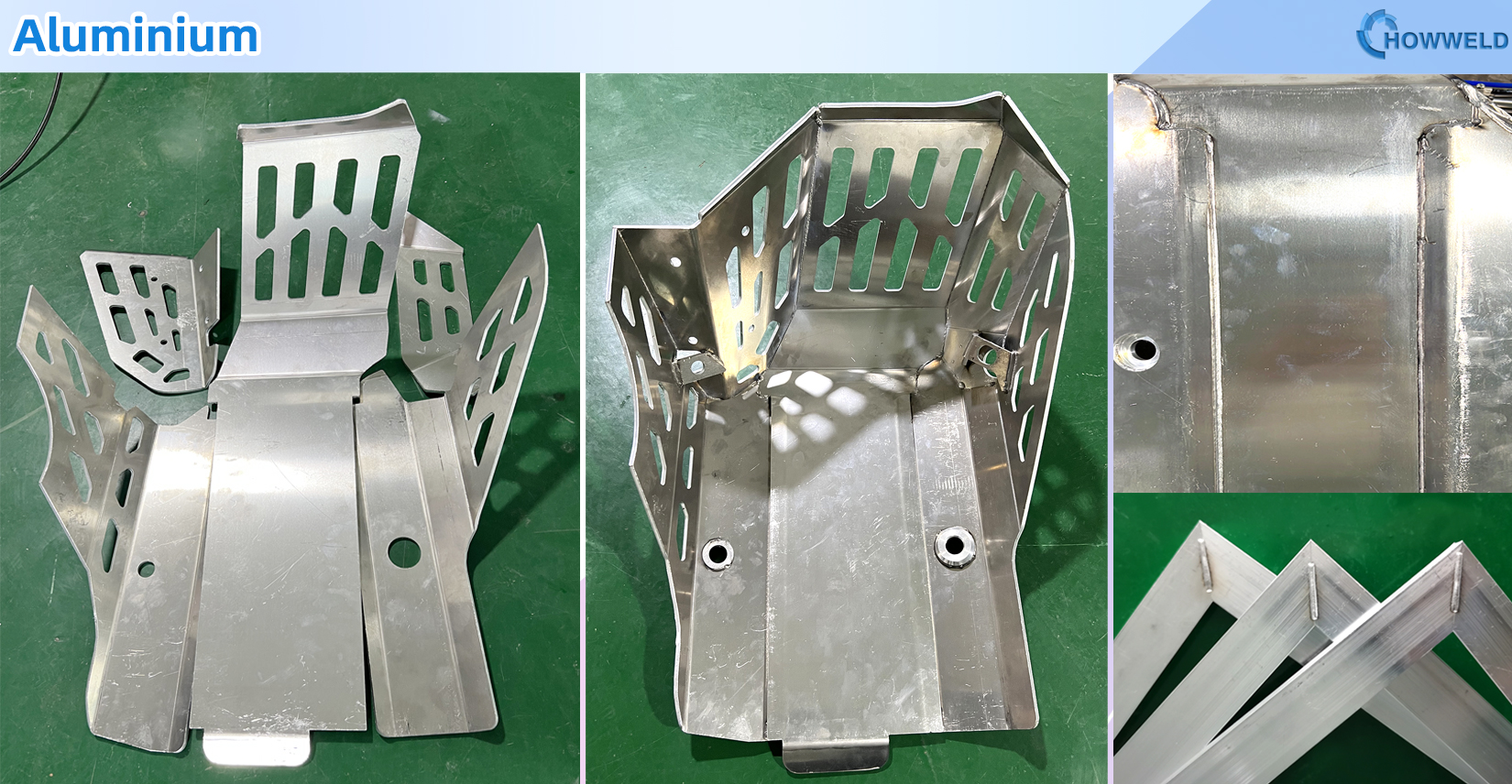

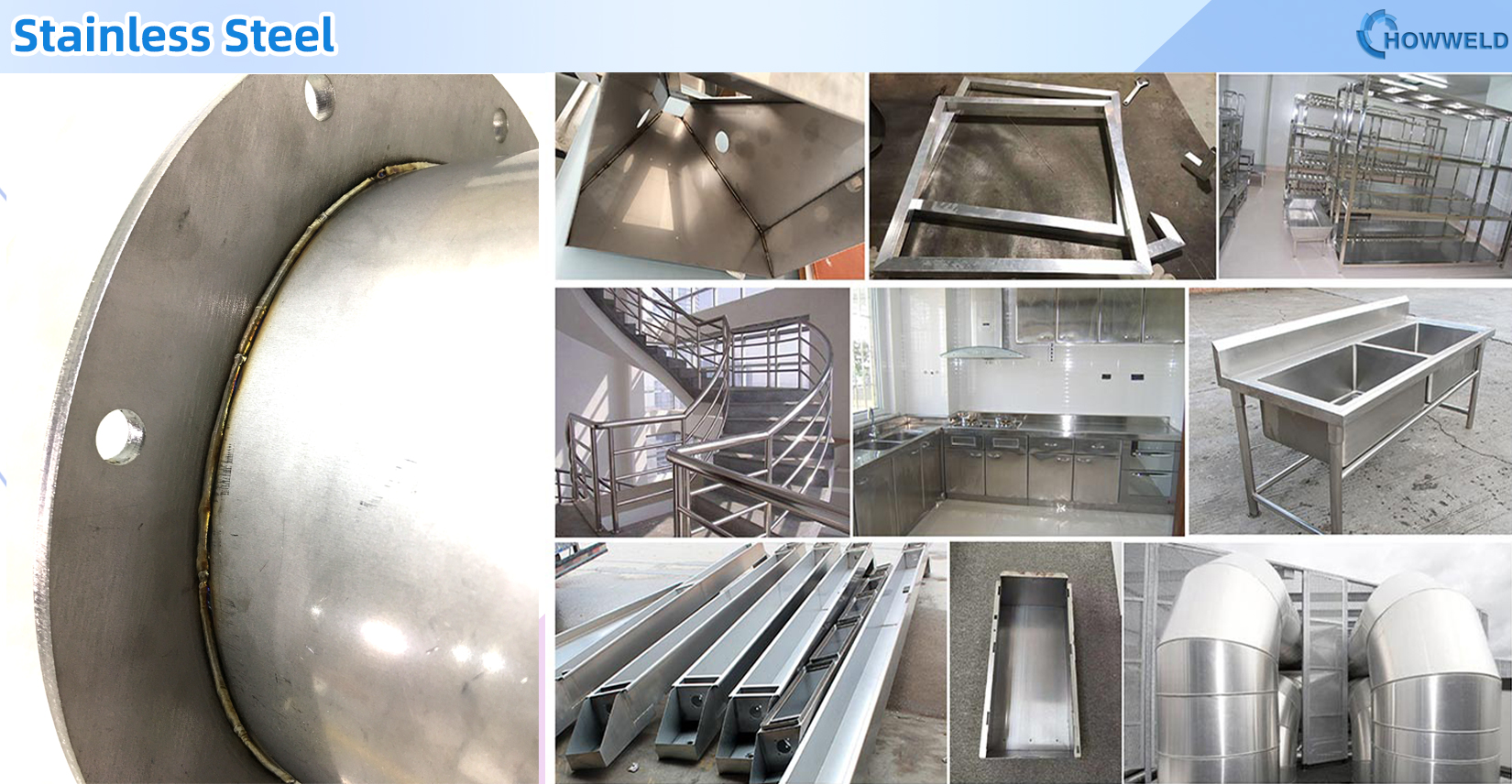

    Samples display
