Application technology of laser cleaning
Laser cleaning mechanism: after absorbing laser energy, the pollutants on the surface of the object vaporize and volatilize, and expand instantaneously, so as to overcome the adsorption force of the body surface on the pollutant particles and make them separate from the surface of the object.
Characteristics of traditional cleaning methods
1. Mechanical friction cleaning: high cleanliness, easy to damage the substrate;
2. Chemical corrosion cleaning: no stress cleaning, heavy pollution;
3. Solid and liquid jet cleaning: high flexibility and complex waste liquid recovery;
4. High frequency ultrasonic cleaning: small matrix damage and limited single cleaning volume.
Laser cleaning features: efficient and green cleaning technology
1. No consumables, minimal pollution, no chemicals and cleaning fluid;
2. No contact, no grinding, no stress, minimal damage to the matrix;
3. Optical fiber transmission, which can clean inaccessible parts;
4. Wide range of application, rust, paint and oil removal;
5. It can remove pollution particles below nanometer level and has high cleanliness;
Application of laser cleaning
Laser cleaning equipment is a new generation of high-tech products for surface cleaning. Easy to install, operate and automate. The utility model has the advantages of simple operation, no chemical reagent, no medium, no dust and no water when the equipment is turned on, automatic focusing, surface fitting cleaning and high surface cleanliness, and can remove the resin, oil stain, stain, dirt, rust, coating, coating and paint on the surface of the object.
|

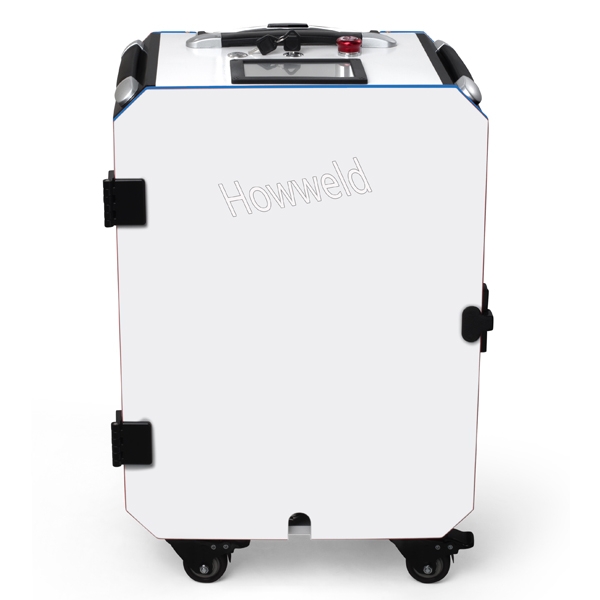

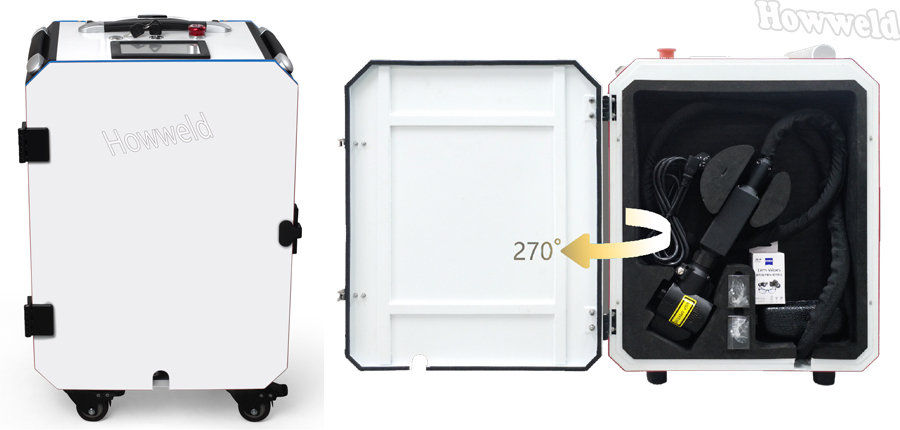

Model
|
HW-LPA-200W
|
HW-LCA-100W
|
|
Laser Power
|
200W
|
100W
|
|
Cooling Way
|
Air Cooling [Without water chiller]
|
|
|
Laser Wavelength
|
1064 nm
|
|
|
Max pulse energy(mj)
|
1mj
|
|
|
Power Supply
|
AC220V/50Hz. Current 23~28A
|
|
|
Machine power consumption
|
1300W
|
800W
|
|
Dimension：L*W*H
|
538mmX412mmX685mm
|
|
|
Weight
|
80KG
|
75KG
|
|
Working Temperature
|
5-36°C
|
|
|
Laser head scanning width
|
110mm
|
|
|
Laser source type
|
Pulse Fiber Laser Source
|
|
|
Options
|
Portable/ Automation/Robot system
|
|
|
Maximum Optical fiber line length
|
3 Meters
|
|
