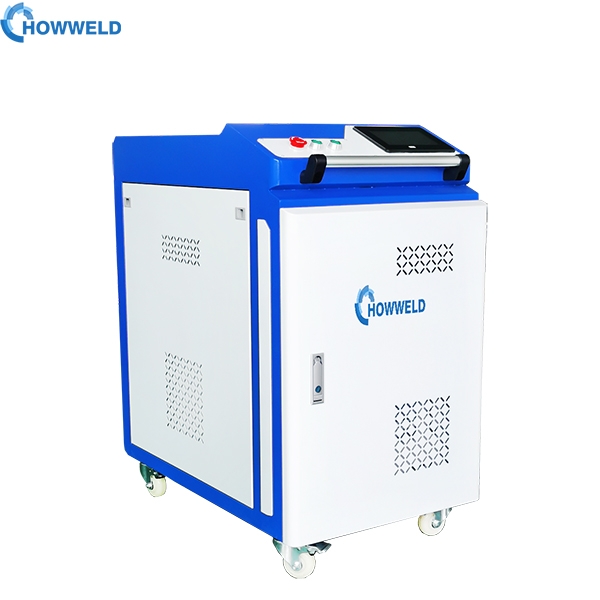

2023 hot sales laser machine, one set laser with 3 kinds function:
1. Laser cleaning; 2. Laser welding; 3. Laser cutting.
Switching principle:1. Laser cleaning; 2. Laser welding; 3. Laser cutting.

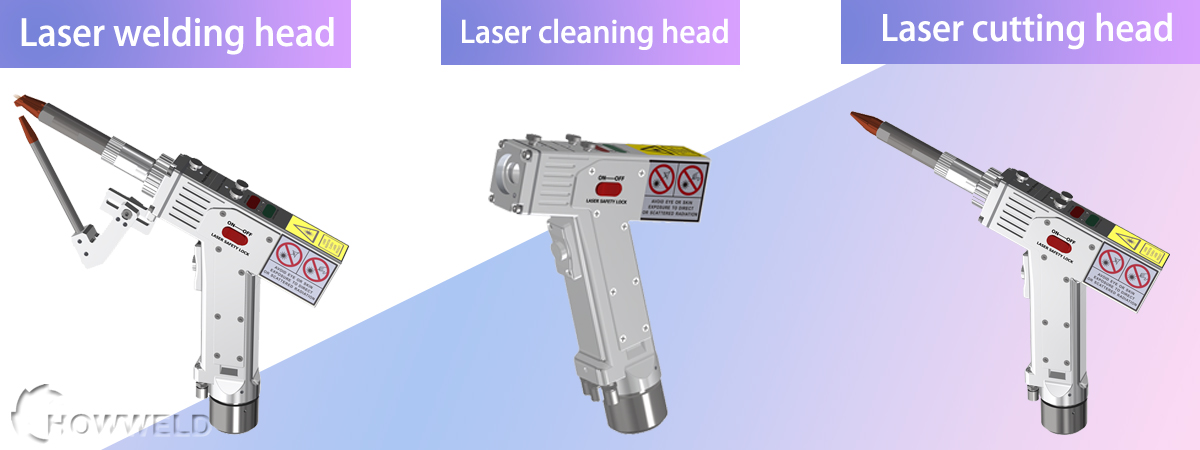

3 in 1 machine can be changed the laser head in different type. Laser beam transmission through optical fiber, go through galvanometer, focus laser beam to 3mm laser spot coming out from protective lens.
When change to focus laser beam, to adjust laser welding. When remove focus function, to adjust laser cleaning. When install cutting nozzle, to adjust laser cutting.
All function in 1 machine:

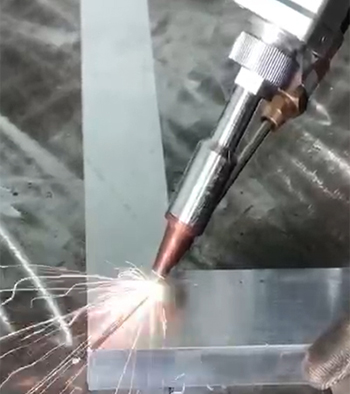

Laser welding : faster, cleaner, cheaper, very small HAF (heat affected zone), no warping, stronger connections.
Laser cleaning : remove rust, grease, scale and other contaminants in seconds. Even in hard-to-reach places.
Laser cutting : Not plasma cutting, but laser cutting! Fast and accurate handheld metal cutting without burrs with a very small HAF.
As a laser cleaner, it is a very green cleaning method. It does not require the use of any chemicals or cleaning solutions. The waste after cleaning is a solid powder.
As a laser welding machine, the weld seam both smooth and beautiful; No need to polish, no deformation or welding scars, and the weld is firm. Save time and improve efficiency.
As a portable laser cutting machine, it is very easy to operate and can cut various types of metals.
Such as stainless steel, aluminium sheets, carbon steel etc. The portable laser gun is easy to carry and features a simple handheld configuration. There is a touch screen on it. And also, it is easy to switch the parameters with the touch screen and simplify the operation during the work.
Machine parameters
Machine parameters
Laser source type | Continuous fiber laser source |
Interface type | QBH |
Laser wavelength | 1070 |
Power adjust range | 10~100% |
Output power instability | ≤3% |
Optical fiber cable length | 10 meters |
Welding mode scanning width range | <5mm |
Cleaning mode scanning width range | ≤160mm |

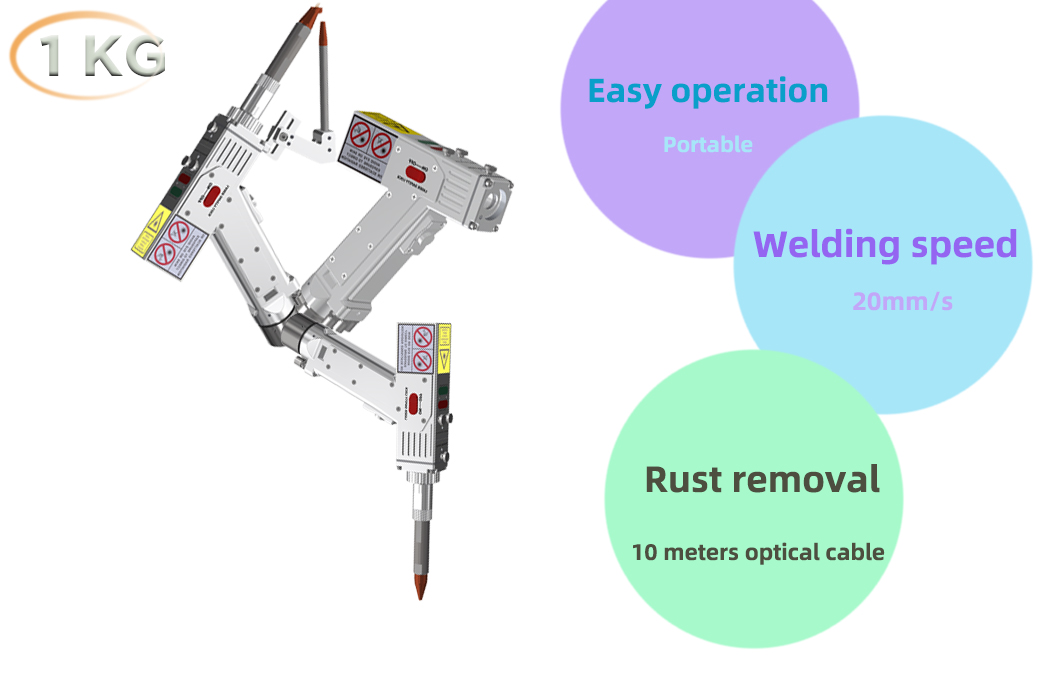

Weight of hand-held laser head | 800 g |
Cooling mode | Water cooling |
Machine power optional | 1000W 1500W 2000W 3000W |
Handheld Laser Welding and Cleaning Systems
Easy to Learn & Operate • Simple & Fast to Set Up • Consistent High-Quality Results
High power+Wide range
Laser power up to 2000W
The body of the gun will not heat up.
Cleaning mode line width 160mm. Wide coverage.
High security
Multiple safety measures. If all safety measures are not taken, the laser can not be released, and there will be a red light warning after the laser is released.
Multiple safety measures. If all safety measures are not taken, the laser can not be released, and there will be a red light warning after the laser is released.
Adjustable focus
The focus lens can be replaced to realize random switching of laser cleaning working distance. When the working distance is close, the energy is strong and the cleaning effect is good. When the working distance is far, it is highly practical. The positions that are difficult to reach can be cleaned instantly without dead corners.

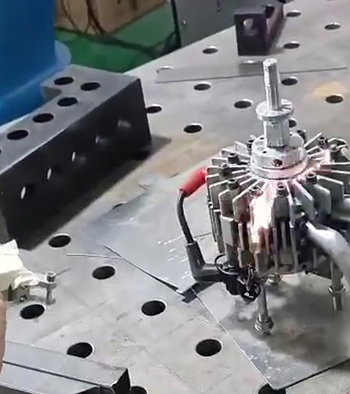

Sample display
