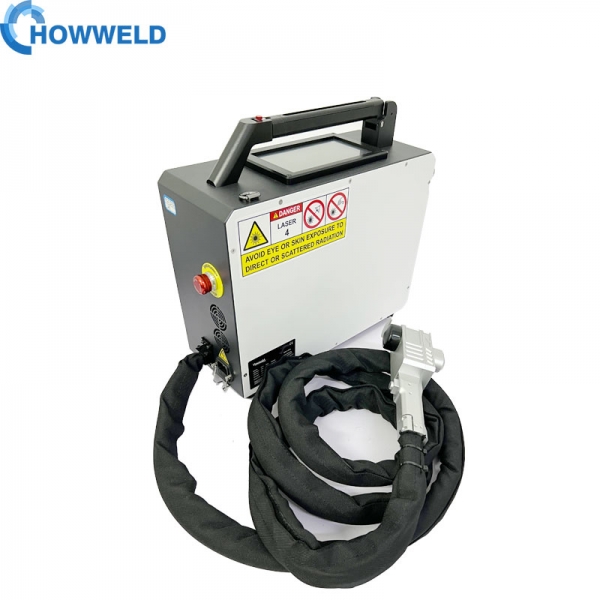

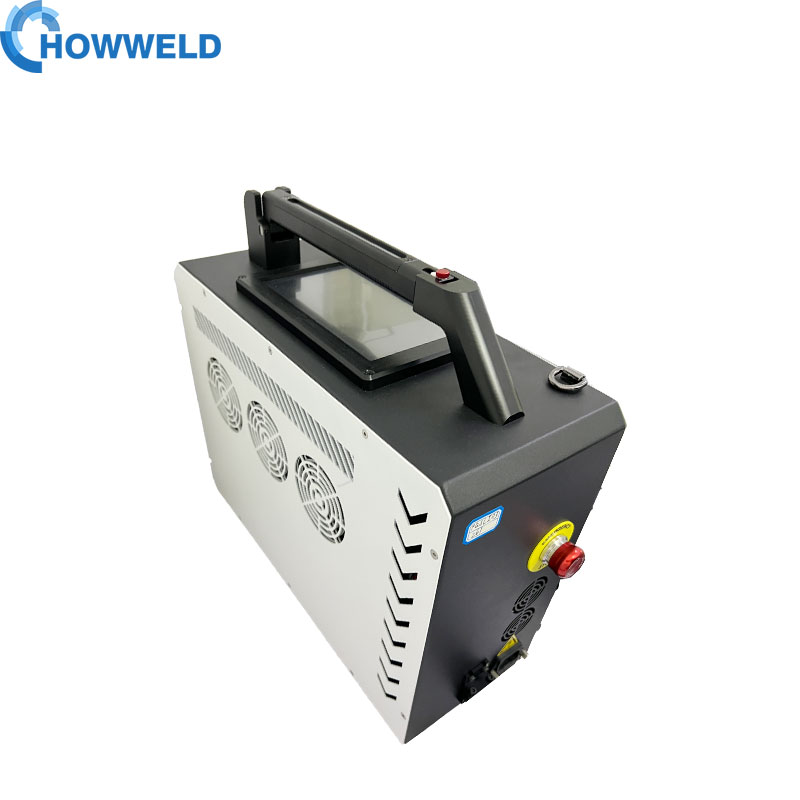

Backpack Type Laser Cleaning Machine

Backpack type portable type
100W 200W Air cooling pulse cleaning system
Total weight 13kgs Max resonator adjustable pulse width





    Introduction:
    The backpack cleaning machine is specially developed according to customer needs.
    On the basis of simple operation, no chemical reagent, no medium and no water cleaning.
    Small size, light weight, easy to carry, and mobile cleaning.


    Handheld flexible cleaning.

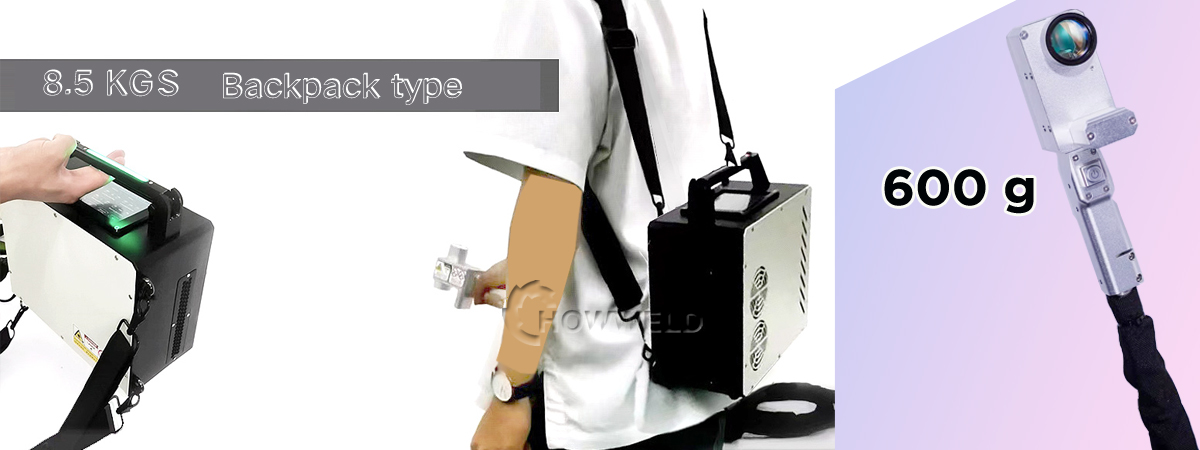

    Long time holding without getting tired, only 8.5kg of whole machine, laser gun only 600g.

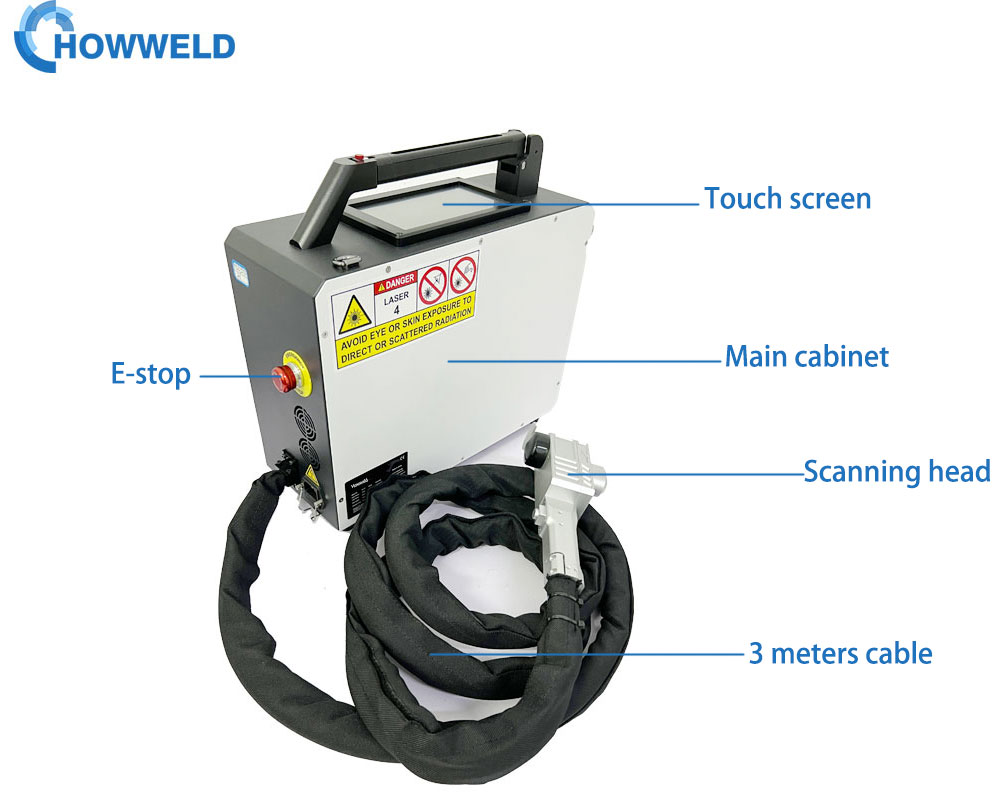

    Configuration:
    Laser source MAX fiber laser source

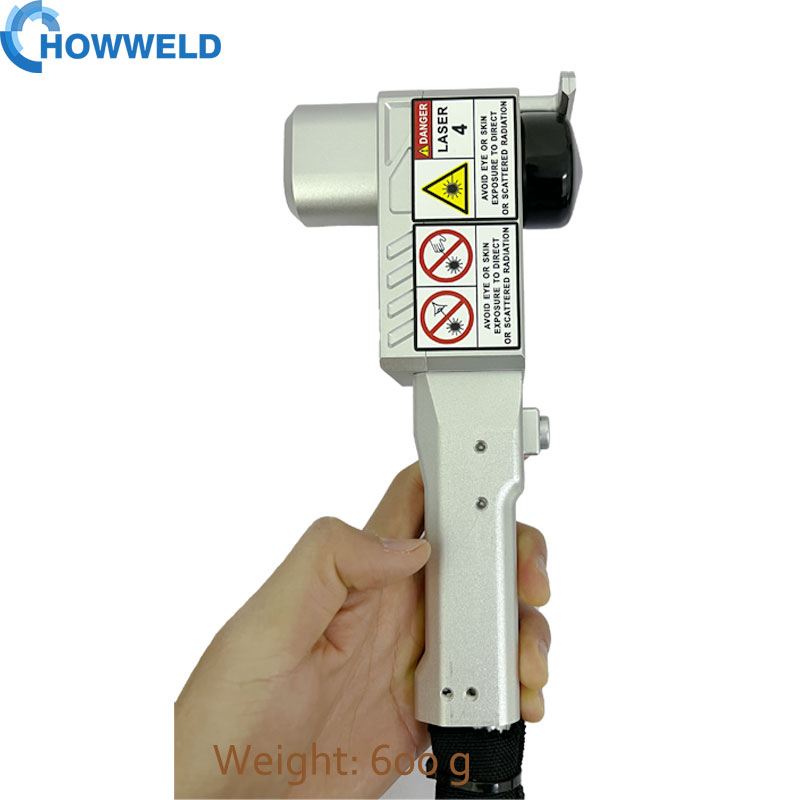

    Scanning head 600g laser gun
    Cleaning system Closed circuit system, Touch screen display
    HMI Control software



    Parameters:
    Laser power optional 50W 100W 200W
    Cooling way Air cooling
    Power consumption 260W
    Laser pulse width 500ns
    Max pulse energy 1.6 mj
    Weight 12.5 kgs
    Dimension 320*280*130mm
    Laser head cable length 2 meters

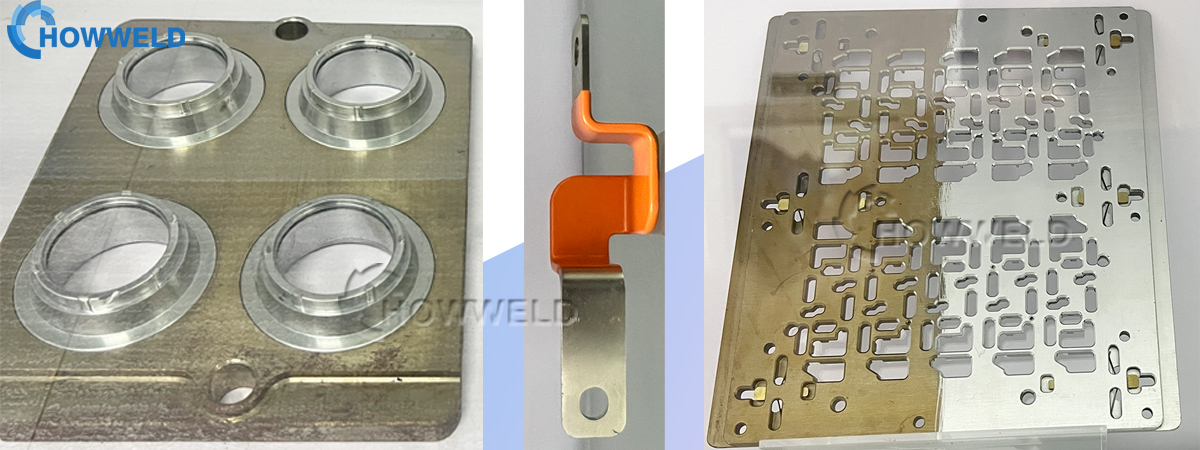

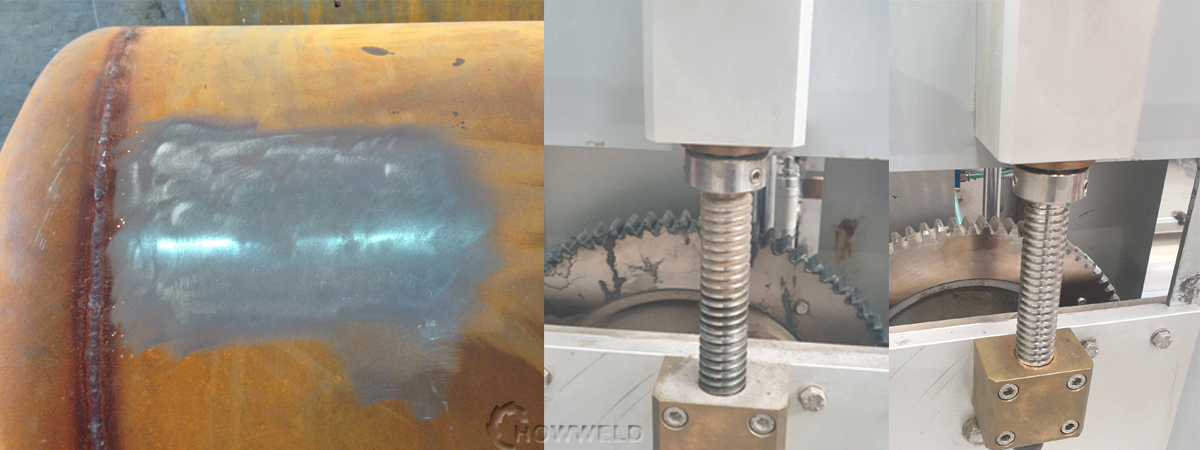

    Samples
