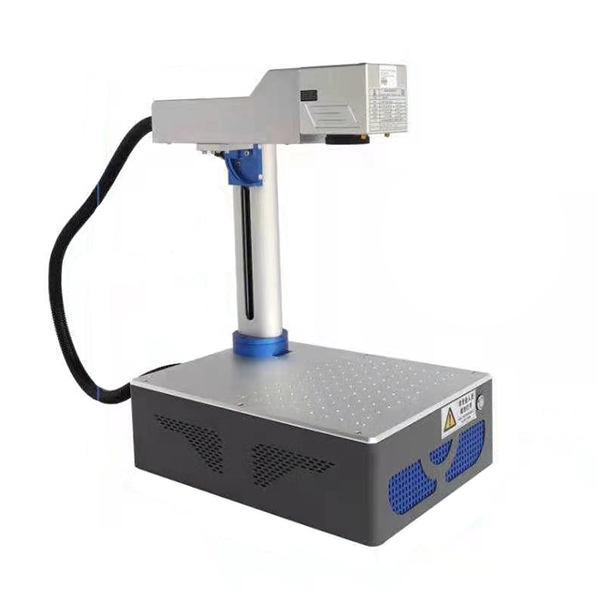

Desktop type laser marking machine

1.Power consumption:800W
2.High efficiency,wind cooling
3.Small size,with high beam output quality
4.No consumable
    How is laser engraving working principle?
    Fiber laser marking machine,also called fiber laser engraving machine,fiber laser output the laser, and then optical fiber transmission to scanning galvanometer system,focused laser acts on the product material,realizes the marking function.

    The fiber laser marking equipment has high electro-optical conversion efficiency, air-cooling way,small size, and the output beam quality is good.
    High reliability,long operating lifetime, energy saving, can engrave metal materials and some non-metal materials.

    Laser engraving for production molds,PC boards,LED light bulbs, pistons, piston rings, valves, valve seats, hardware tools, sanitary ware, electronic components, plastic and other surfaces.

    Laser marking machine configuration:
    Desktop type laser engraving machine
    Laser source 20w,30w,50w,100w;Max made in China,or
    IPG made in Germany
    Scanning head HY head,or Scanlab head
    Focal lens Wavelength
    Software EZCAD
    Computer Standard computer,win 10
    Control card JC card/USC-1
    Plug USA Standard
    Foot pedal One pedal
    Body bracket Metal bracket

    Technical specification:
    Model HW-MK-AD01
    Laser Power 20W
    Laser wavelength 1064nm
    Repeating Frequency 20~120 KHz
    Beam Quality  M<1.8
    Marking Range 100*100mm/200*200/300*300mm
    Marking Depth 0.1~1.5 mm(depend on material)
    Marking Speed 10,000mm/s
    Min.line Width 0.01mm
    Min.Character 0.15mm
    Repeatability Accuracy ±0.002
    Power Supply 220V±10% / 50Hz
    Power Consumption  800W
    Machine Weight 45KGS
    Operating System Win 10
    Cooling Way Built-in air cooling
    Control Interface  Standard USB
    Laser Type  Pulse
    Laser source MAX/JPT/RAYCUS/IPG
    Laser head High precision galvanometer
    Characteristics:
    1. High efficiency in electrical / optical conversion,  wind cooling ;
    2. Small size, with high beam output quality, high reliability;
    3. The marking speed is 3~12 times of first and second generation of laser markers;
    4. No consumable,long term service life of the laser source,energy saving;
    5. Low power consumption(800W).

    Applicable materials and industries:
    1.Marking for metallic and non-metallic materials,such as stainless steel,aluminum,brass,decorating parts,handsets, clocks, watches, moulds, ICs, handset buttons,  bitmap marking etc.

    2.Engraving for eyewear frames,metal sheets,TR,rubber,optic lens.

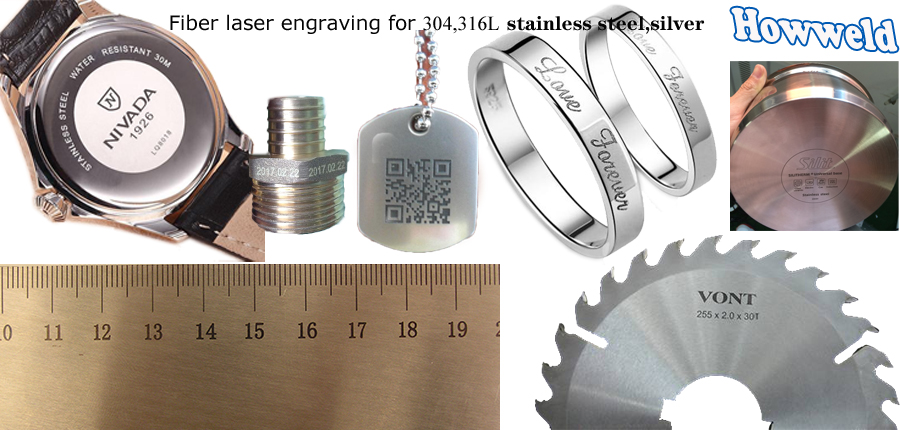

    Samples display:
