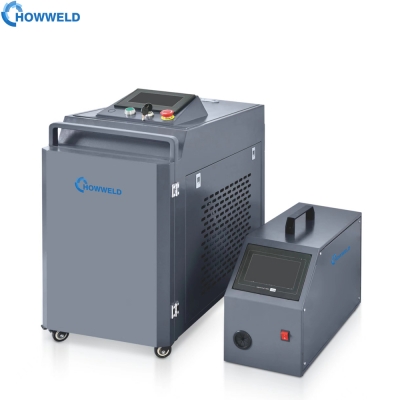

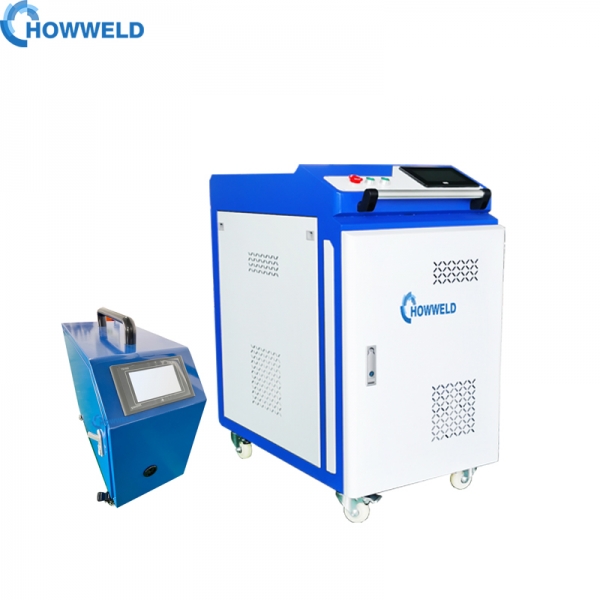

1500W 2000W Aluminum Galvanized Manual Laser Welding Machine

Description

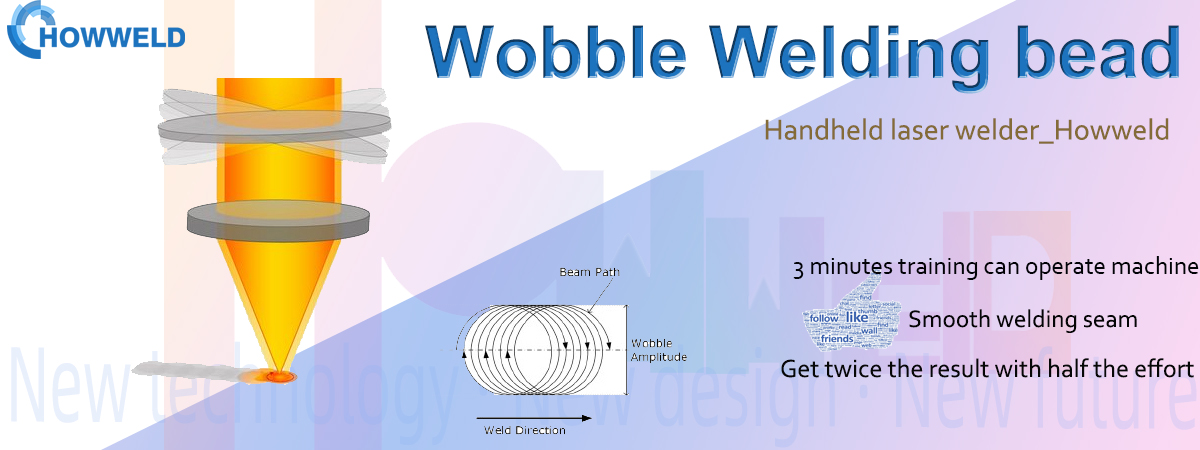

Basic operating principle: In swing welding, the welding gun or laser beam swings laterally along the weld seam during the welding process. This swinging can be done manually or assisted by mechanical equipment. ‌

Use of shielding gas: In swing welding, due to the direct pressure of the welding gun nozzle on the groove, the distance between the nozzle and the liquid molten pool is relatively close, which helps to fully protect the molten pool with shielding gas, thereby preventing oxidation and ensuring welding quality. ‌

hand-held fiber laser welding 1500w-howweld

Technical specifications

Model/Power	1KW	1.5KW	3KW
Max energy of single pulse	100J	110J	120J
Laser Type	CW Continuous Laser
Model	HW-MY-H1000
Laser wavelength	1064nm
Laser welding frequency	1000HZ
Laser spot diameter	0.4-2 mm
Weld penetration	0.1~3mm
Power can be adjustable	5%~100%
Pulse width	1ms
Power Supply	220V±10%/50-60HZ	220V±10%/50-60HZ	380V±10%/50-60HZ
Power Consumption	2.5KW	3KW	5KW
Cooling water flow	15L/min
Weight	190KG	210KG	260KG
Cooling Way	Water cooling
Chiller’s water	Deionized water
Protective gas	Nitrogen gas
Protective gas pressure	12~14 MPa

Which power machine should choose:

1000W power Handheld welding system

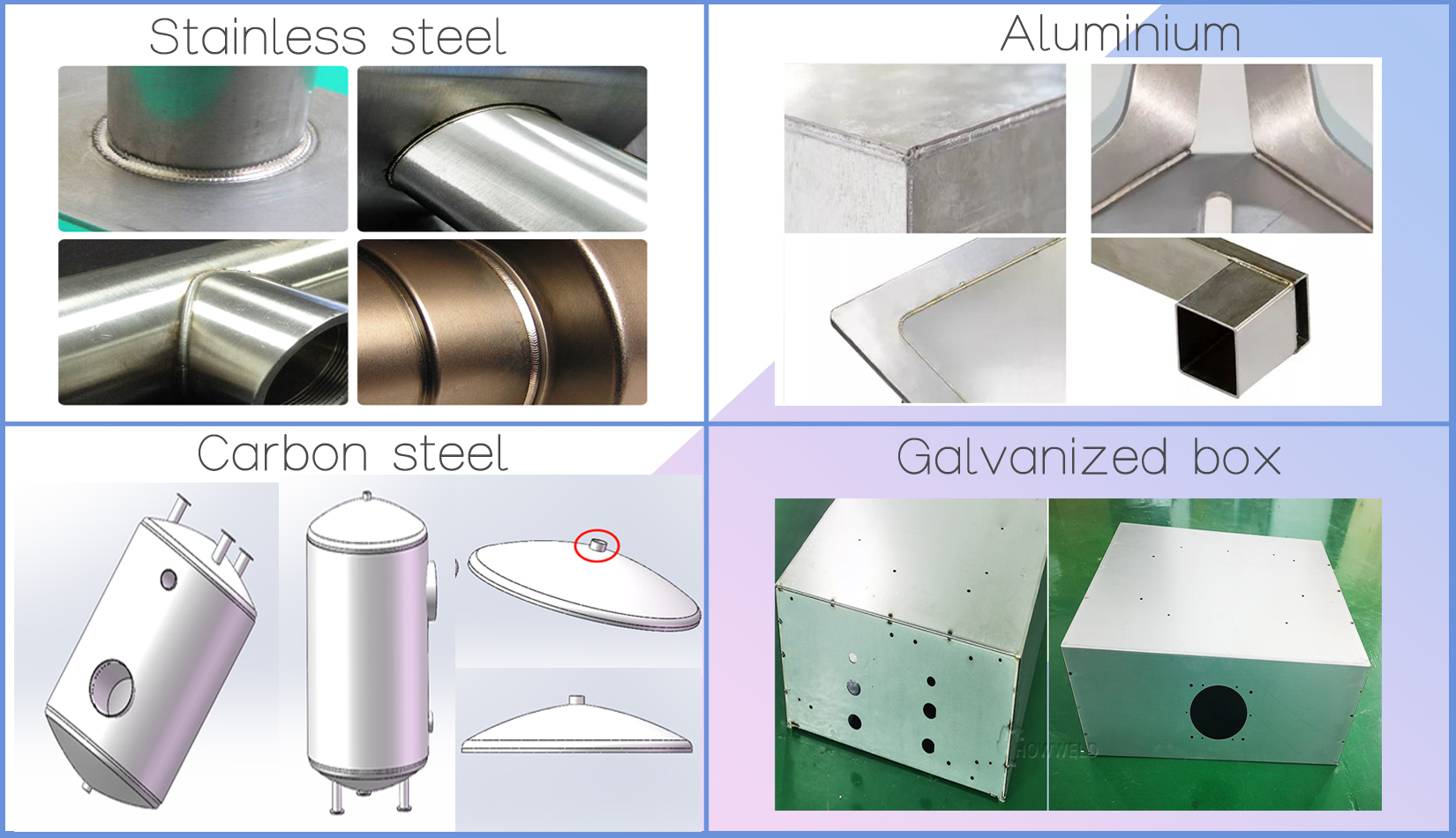

Materials

Stainless steel

Carbon steel

Aluminium

Brass

Red copper

Thickness-mm

0.5

Weld OK

0.8

Weld OK

1.5

Weld OK

2.5

Weld OK

1500W

Materials

Stainless steel

Carbon steel

Aluminium

Brass

Red copper

Thickness-mm

0.5

Weld OK

0.8

Weld OK

1.5

Weld OK

2.5

Weld OK

3.5

Weld OK

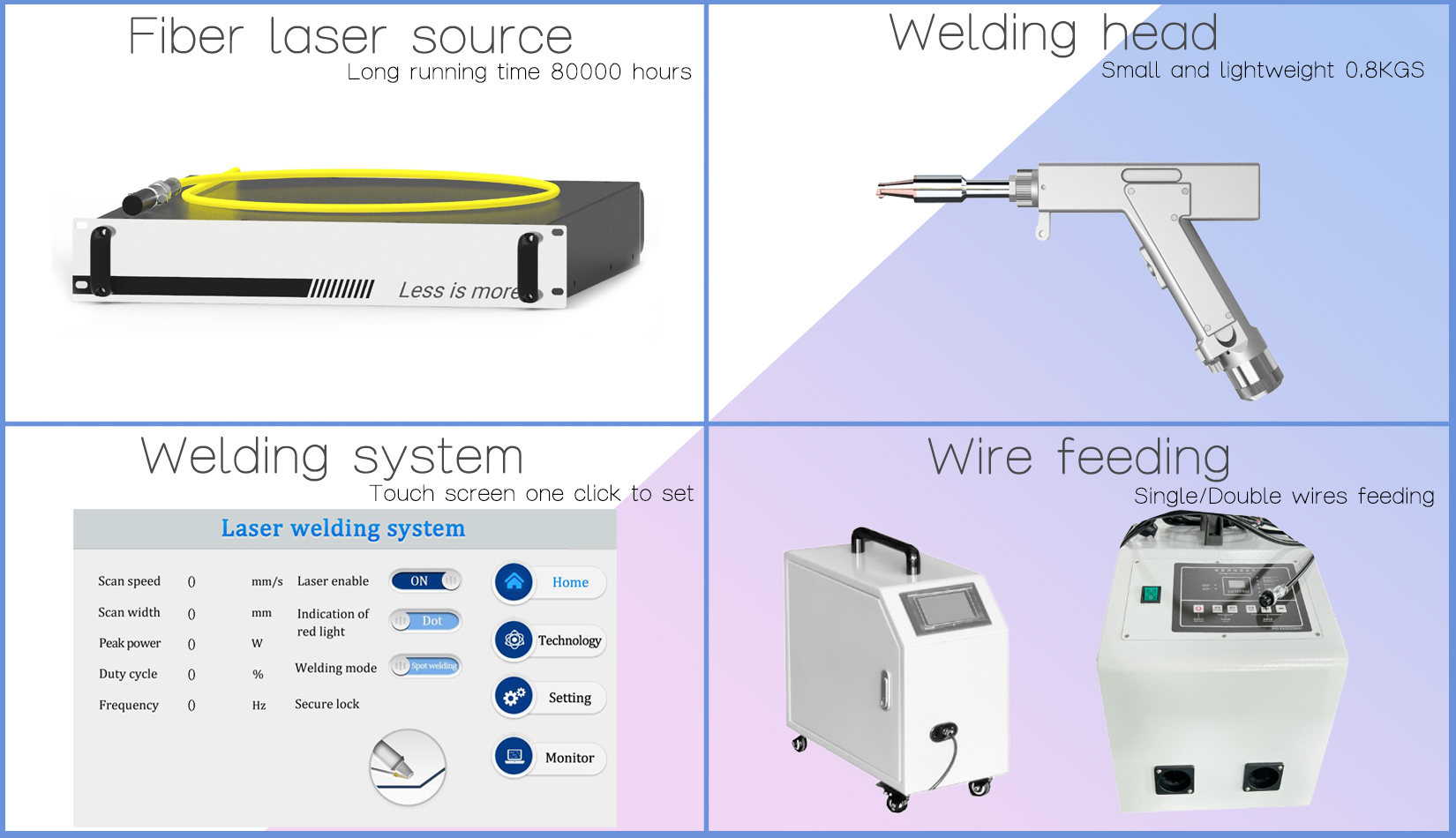

Main parts

Main parts:	Brand Details:
Laser source	Fiber laser source ,Max,Raycus or IPG
Handheld gun/Laser head	Made in China
Cooling chiller	Made in China
Welding software	Made in China
