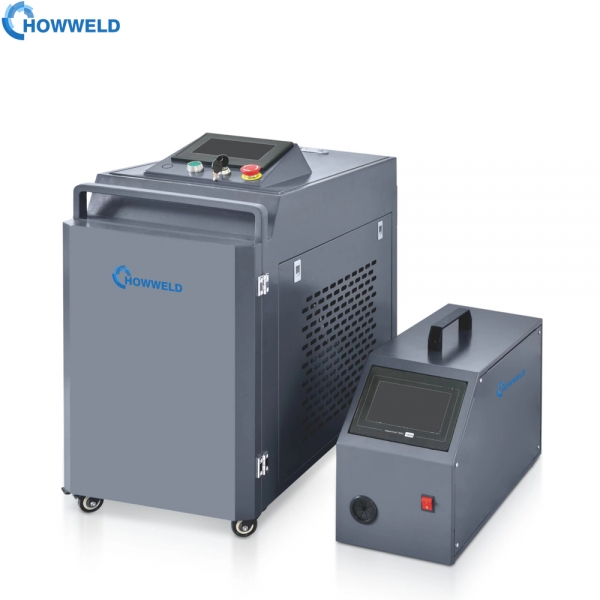

Fiber Handheld Laser Welding Machine Wobble Welding

Wobble head can be set 8 types welding mode, each oscillation mode useful for metal welding.
Howweld can install maximum 3000w manual type and also designing 4000w in the future.
Serial communication. Adjustable double wire feeding.  3000w handheld type
Strong anti-interference, safe and stable. Convenient operation.
    Wobble head can be set 6 types welding mode, each oscillation mode useful for metal welding.
    1. annular mode 2.triangle mode 3. Figure 8 mode 4. rotundity mode 5. spot mode 6.straight line mode.

    Howweld can install maximum 3000w manual type and also designing 4000w in the future.
    Serial communication. Adjustable double wire feeding.
    Strong anti-interference, safe and stable. Convenient operation.


    Main parts

    Main parts:

    Brand Details:

    Laser source

    Fiber laser source ,Max,Raycus or IPG

    Handheld gun/Laser head

    Made in China

    Cooling chiller

    Made in China

    Welding software

    Made in China


    Welding capacity

    2000W



    Materials

    Stainless steel

    Carbon steel

    Aluminium

    Brass

    Red copper

    Thickness-mm

    0.5

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    0.8

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    1

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    1.5

    Weld OK

    Weld OK

    Weld OK

    Weld OK



    2

    Weld OK

    Weld OK

    Weld OK

    Weld OK



    2.5

    Weld OK

    Weld OK

    Weld OK





    3

    Weld OK

    Weld OK

    Weld OK





    3.5

    Weld OK

    Weld OK







    4

    Weld OK

    Weld OK







    6

    Weld OK

    Weld OK








    3000W



    Materials

    Stainless steel

    Carbon steel

    Aluminium

    Brass

    Red copper

    Thickness-mm

    0.5~2

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    3

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    4

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    Weld OK

    5

    Weld OK

    Weld OK

    Weld OK



    6

    Weld OK

    Weld OK

    Weld OK



    7

    Weld OK

    Weld OK







    8

    Weld OK

    Weld OK







    HOWWELD_2024

     Sample display

     RFQ questions

    1. How long time can the machine use for?
    Normal working time From Monday to Friday, 8-10 hours everyday, the machine can use for longer to 7~10 years.

    2. What kind of consumables?
    Protective lens. One piece can use for more than 1 month.

    3. What metal materials can weld? How much thickness can weld?
    Stainless steel, carbon steel, aluminum sheet, galvanized plate, cold plate material, below 1mm copper sheets.

    1000w power machine can weld max 2.5mm stainless steel.
    1500w can weld 3.5mm thickness SS.
    2000w can weld 6mm maximum SS.
    3000w can weld 6mm aluminum alloy.

    Why our price higher than other supplier?
    Firstly, compare with other manufacturers price, please compare which kind of parts install into the machine.
    The luminous point 1: we install a filter to provide stronger anti-interference ability, more stable during laser welding.

    More application for products: 200w pulse laser cleaning; backpack laser cleaning machine; rust removal 1000w
