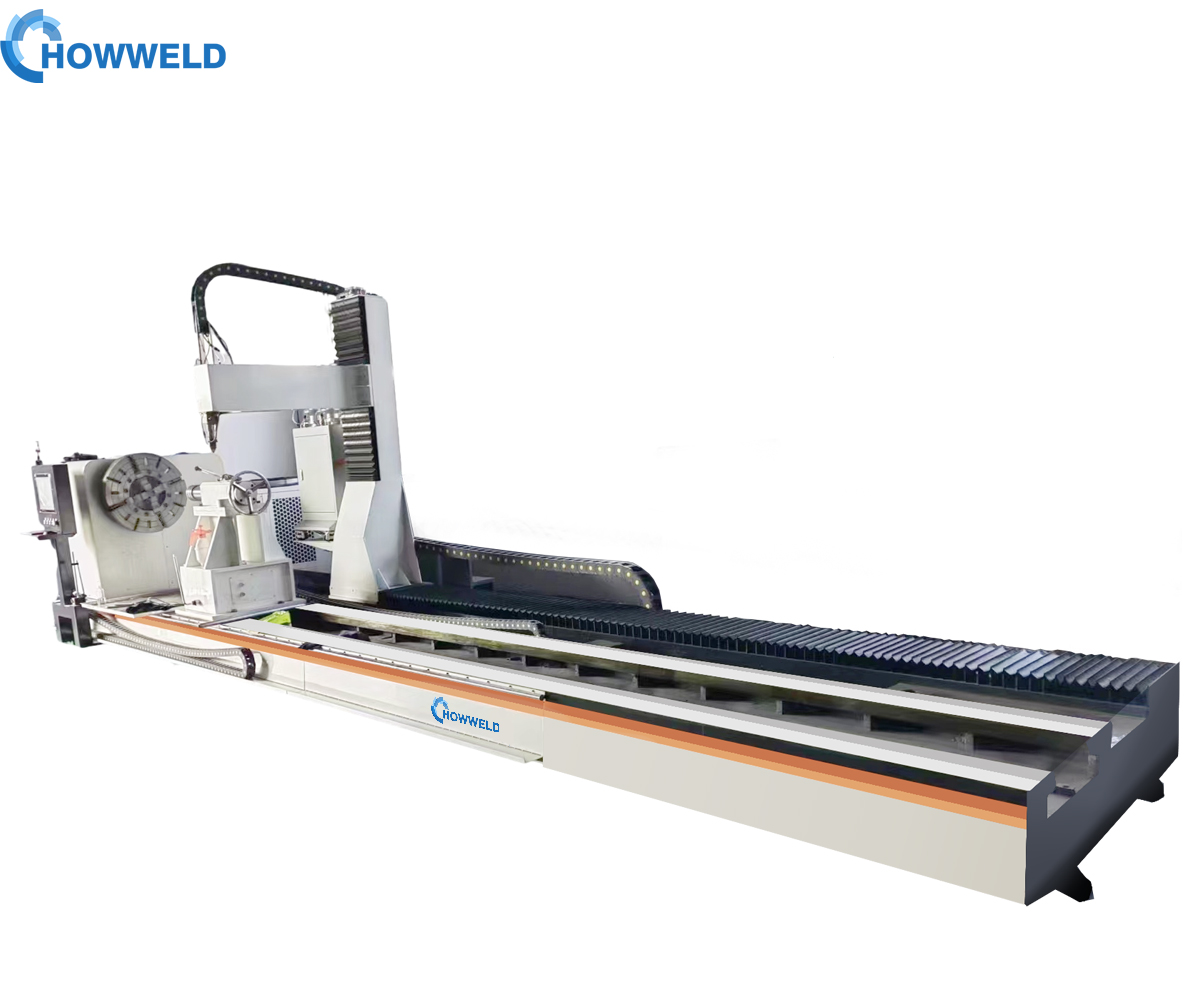

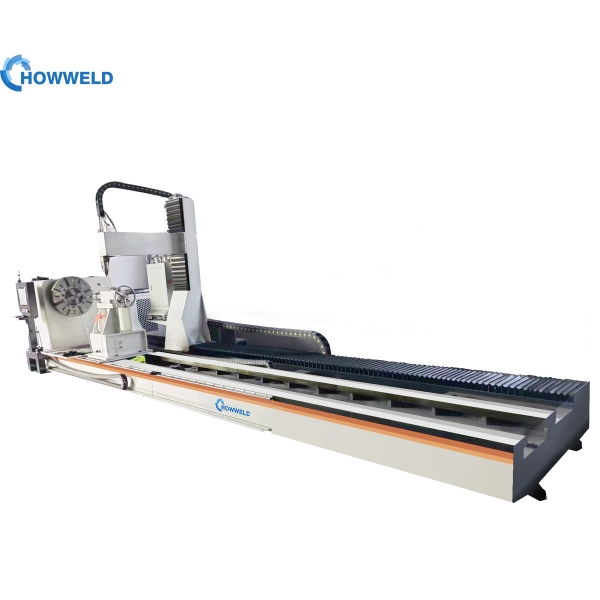

6 Meters Laser Cladding Machine Laser Hardening Machine

Maximum load 6 meters length shaft/roller product


    3KW power main parts list
    Fiber laser source JPT-A3000, Continuously adjustable, beam quality 110mm.mrad
    Chiller, water cooling 8.5KW, Dual temperature control, providing cooling water for lasers, processing heads, optical fibers, etc
    Laser cladding head HW-RT02, Collimation focal length: 100mm
    Focal length: 300mm, spot size 3mm
    XYZ moving station Moving range: 2*0.5*0.5 meter. Silver on guide rail, screw TPI, accuracy ± 0.05 mm, equipped with 86 precision motor drive
    Rotary station Cast iron base, which can hold 4 meters long workpieces, with a rotation diameter of 1 meter, a chuck of 315 mm, and max load 3.2 tons
    Control software (Computer cnc softtware) The XYZ platform, rotating platform, laser, water cooling box, compressed air and protective gas are controlled uniformly through computer integration and operated through computer screen
    Accessory parts System joint commissioning accessories (cable, interface, lens)

    6KW power main parts list
    Fiber laser source JPT-A6000, Continuously adjustable, beam quality 110mm.mrad
    Chiller, water cooling 14KW, Dual temperature control, providing cooling water for lasers, processing heads, optical fibers, etc
    Laser cladding head Collimation focal length: 100mm
    Focal length: 300mm, spot size circle 3mm, faster cladding speed
    Optional: Laser cladding head Customized Collimation focal length: 100mm
    Focal length: 300mm, spot size 6*6mm square; Slow cladding speed
    XYZ moving station Moving range: 2*0.5*0.5 meter. 2 meters ground rail bearing robot
    Robot arm YASKAWA, load 25kgs, radius 1730mm
    Cast iron platform Cast iron platform machine tool
    Pneumatic powder feeder Pneumatic type. Customized 30kg capacity
    Voltage regulator Provides stable AC power to the laser device
    Control software (Computer cnc softtware) The XYZ platform, rotating platform, laser, water cooling box, compressed air and protective gas are controlled uniformly through computer integration and operated through computer screen
    Accessory parts System joint commissioning accessories (cable, interface, lens)
